عداد كهرباء 3 فاز

المواصفات

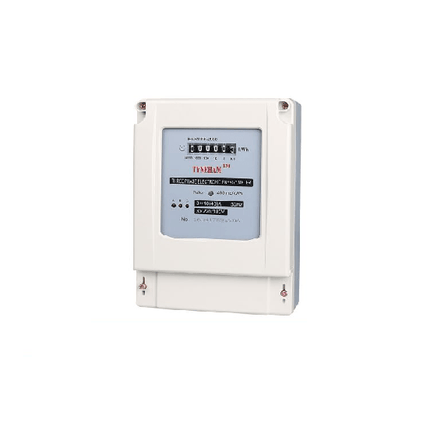

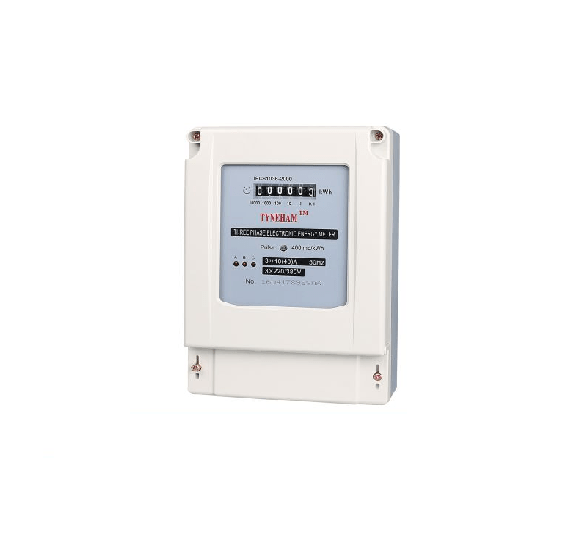

DTS-3 Series three phase electronic four wire electronic energy meter is a kind of new style three phase four wire active energy meter. It adopt stable performance,low power consumption of industrial components, use the process carefully design and manufacture.

SPECIFICATIONS
Applicable Standard

IEC 62052-11 and IEC 62053-21

Accuracy

Class1/2

Voltage

3P4W: 3×220/380V  3P3W: 3×57.7/100V,3×380V,3×100V

Current

1.5(6)A,3(6)A,5(20)A,10(40)A,15(60)A,20(80)A,30(100)A ETC.

Frequency

50Hz or 60Hz

Display

Register 5 integer plus 1 decimal,

20(80)A,30(100)A 6 integer
LCD 5 integer plus 1 decimal digital number

عداد كهرباء 3 فاز

Product form

DTS-3 Series three phase electronic four wire electronic energy meter is a kind of new style three phase four wire active... Read more

رقم الصنف: 2100600000057

26.500 JD

    المواصفات


    DTS-3 Series three phase electronic four wire electronic energy meter is a kind of new style three phase four wire active energy meter. It adopt stable performance,low power consumption of industrial components, use the process carefully design and manufacture.

    SPECIFICATIONS
    Applicable Standard

    IEC 62052-11 and IEC 62053-21

    Accuracy

    Class1/2

    Voltage

    3P4W: 3×220/380V  3P3W: 3×57.7/100V,3×380V,3×100V

    Current

    1.5(6)A,3(6)A,5(20)A,10(40)A,15(60)A,20(80)A,30(100)A ETC.

    Frequency

    50Hz or 60Hz

    Display

    Register 5 integer plus 1 decimal,

    20(80)A,30(100)A 6 integer
    LCD 5 integer plus 1 decimal digital number
