Description

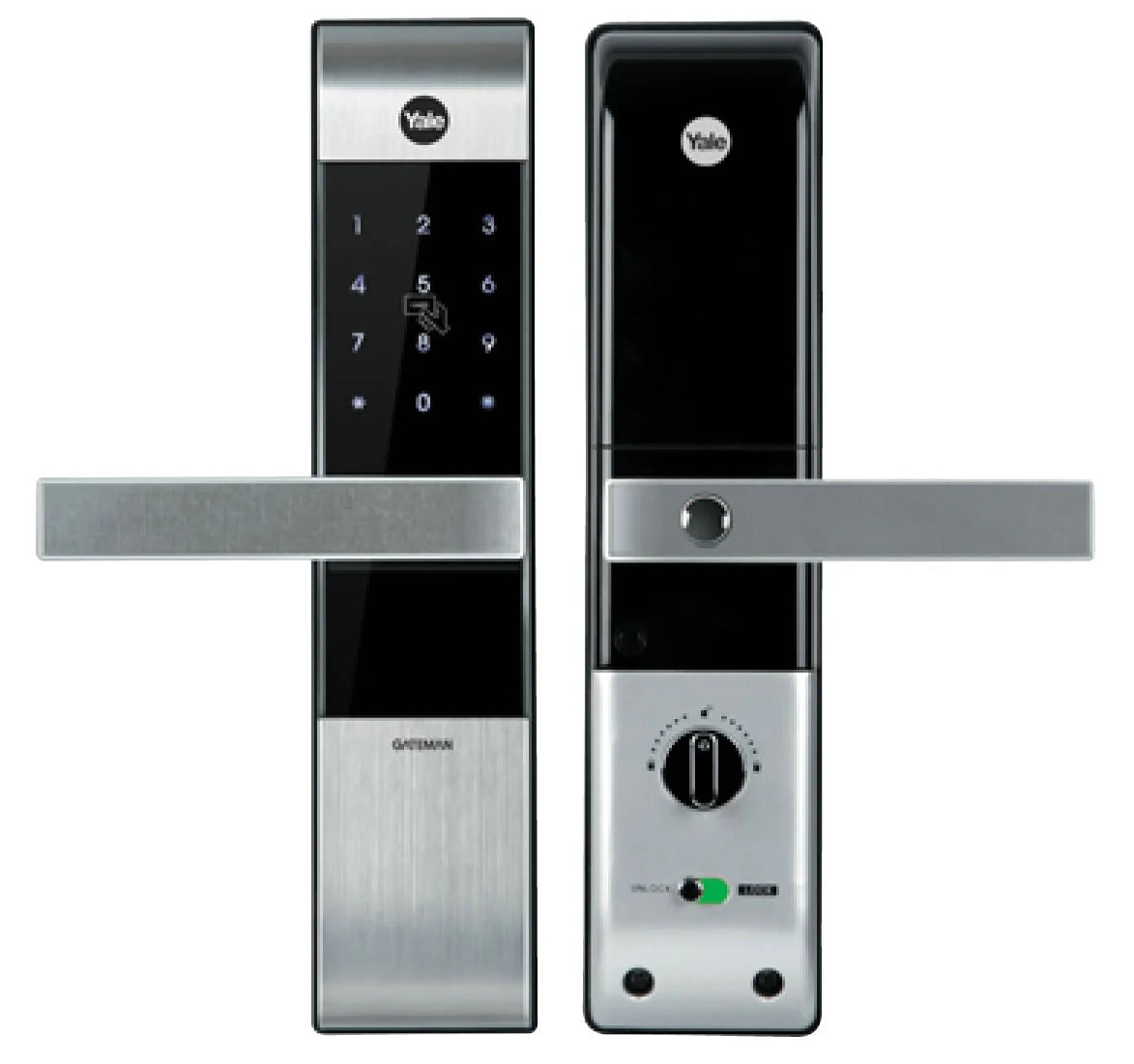

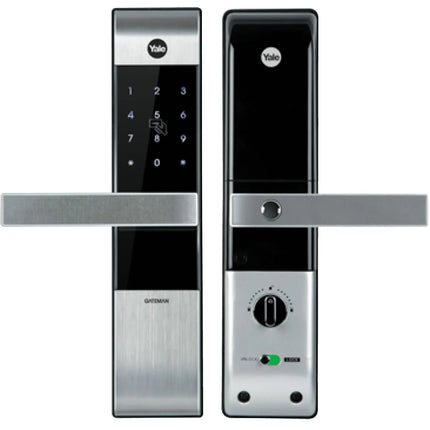

The Yale YDM3109 digital door lock provides a secure and convenient keyless entry solution for residential and light commercial applications. With multiple access methods and advanced security features, it enhances both security and ease of use.
Key features:
-
Multiple access methods: Unlock using a 6- to 12-digit PIN code, RFID card (supports up to 40 cards), or mechanical key bypass.
-
Smart Touchpad: A responsive touchpad for easy and secure PIN entry.
-
Automatic locking: The door locks automatically after it is closed, enhancing security.
-
Anti-panic exit: Allows immediate exit by simply turning the lever from the inside.
-
Alarm system: Built-in alarm alerts in case of attempted break-ins or damage.
-
Low battery alert: Notifies you when the battery power is low; powered by 4 AA alkaline batteries.
-
Emergency power supply: In case the battery is completely discharged, a 9-volt battery can be used to provide emergency power.
to set:
-
Front chassis dimensions: 27 mm (depth) x 68.6 mm (width) x 306.6 mm (height)
-
Rear body dimensions: 37 mm (depth) × 72.8 mm (width) × 306.6 mm (height)
-
Material: Zinc alloy
-
Color options: Silver
-
Door thickness compatibility: Suitable for doors ranging from 40mm to 80mm thick
-
Back: 60 mm
-
Power requirements: 4 AA alkaline batteries
-
Other specifications: It contains two mechanical keys for emergency access.
