Professional auto-darkening helmet with a large viewing area and UV/IR protection.

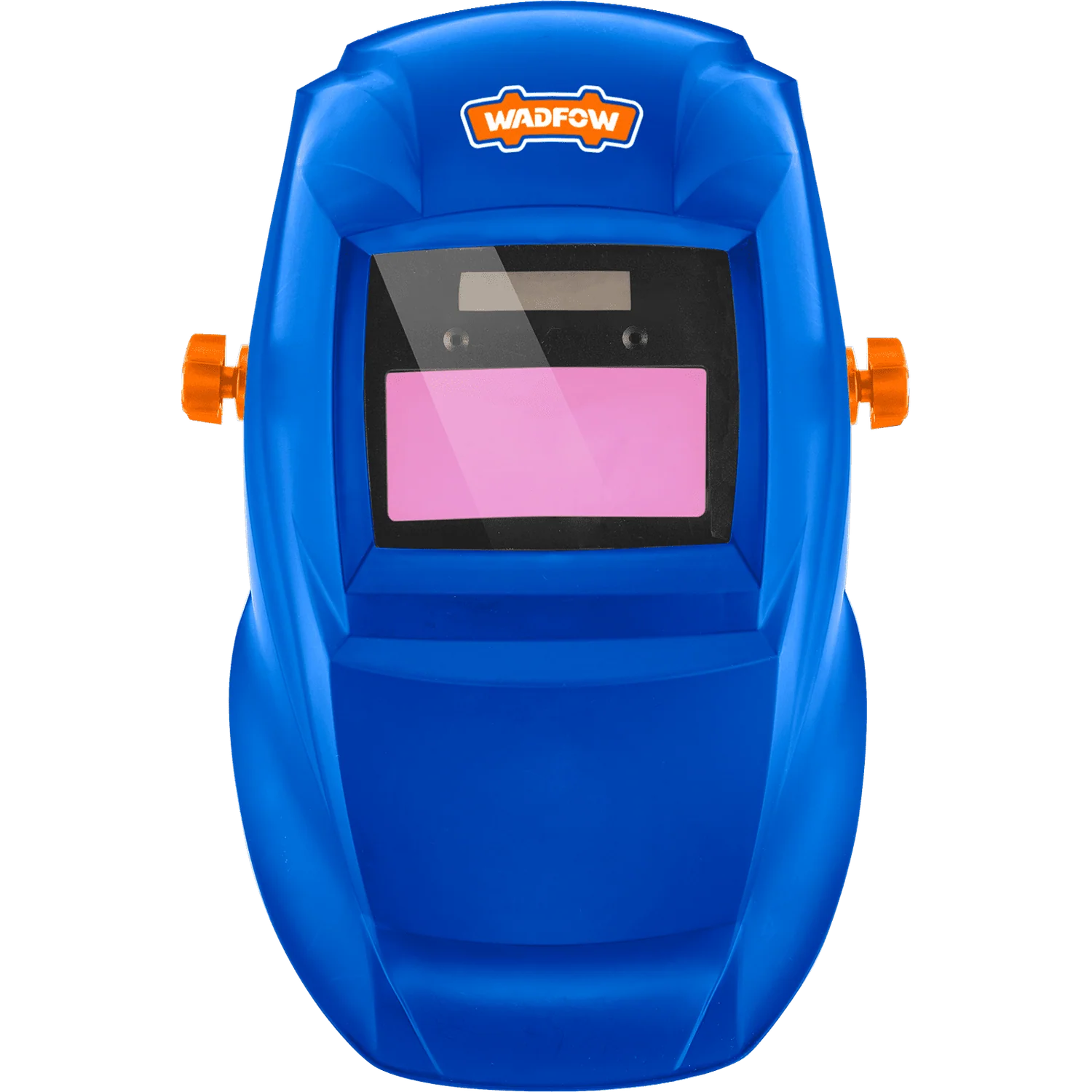

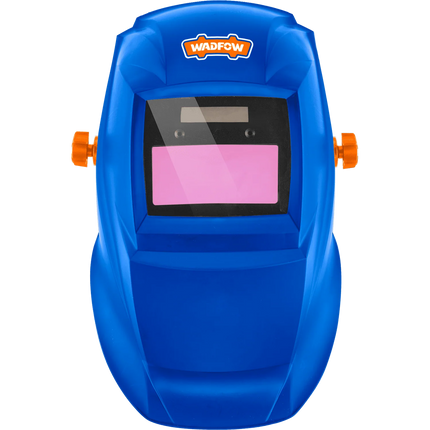

The WADFOW WWH2501 Auto-Darkening Welding Helmet is designed to provide superior protection and comfort for professional welders. It features a large viewing area of 90×35mm, offering an expansive field of vision and enhanced safety. The helmet provides DIN 16 UV/IR protection against harmful radiation emitted during welding. The cartridge size is 110×90×9mm, ensuring a snug and efficient fit. Equipped with two arc sensors, the helmet quickly switches from light to dark in 1/25000 seconds, enhancing productivity and reducing eye strain. A fixed shade of 11 and light state of DIN 3 provide optimal clarity under various lighting conditions. Powered by solar and a sealed Li-battery, this helmet is reliable and environmentally friendly. Suitable for low amperage TIG welding from ≥15 amps DC and ≥35 amps AC, it operates efficiently between -5℃ to +55℃, with a storage range of -20℃ to +70℃.
Key Features
- Large 90×35mm viewing area
- DIN 16 UV/IR protection
- Fast 1/25000s switching speed
- Solar and Li-battery powered
- Suitable for low amperage TIG welding
Technical Specifications
| Attribute |
Value |
| Model Number |
WWH2501 |
| Viewing Area |
90×35mm |
| UV/IR Protection |
DIN 16 |
| Cartridge Size |
110×90×9mm |
| Switching Time |
1/25000s |
