UniView PC Module for Interactive Displays / HB-7099-M

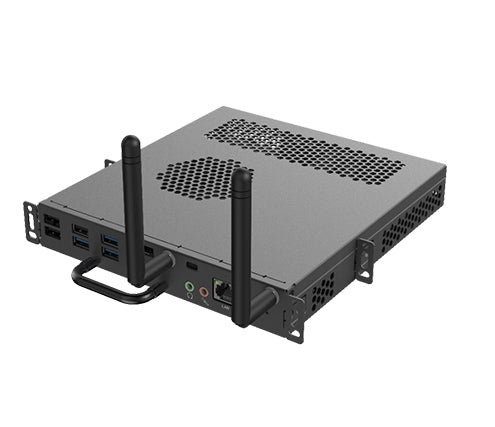

UniView HB-7099-M Pluggable PC Module
The UniView HB-7099-M is a high-performance pluggable PC module, designed for seamless integration with UniView interactive smart displays. Its compact and sleek design ensures optimal space utilization without compromising on performance.
Key Features:
Processor: Equipped with an Intel® Core™ i5-10200H processor, featuring 4 cores and 8 threads, operating at a base frequency of 2.4 GHz and capable of reaching up to 4.1 GHz with Turbo Boost.
Memory: Includes 8GB of DDR4 RAM, expandable up to 32GB, providing ample memory for multitasking and demanding applications.
Storage: Comes with a 256GB M.2 SSD, offering fast data access speeds and high reliability.
Graphics: Integrated Intel UHD Graphics, supporting high-resolution displays and smooth visual performance.
Connectivity: Features dual-band Wi-Fi (2.4GHz and 5GHz) and Bluetooth functionality, ensuring versatile and reliable wireless connections.
Ports: Offers a diverse range of ports, including one DisplayPort, one HDMI port, one LAN port (RJ-45), 3 USB 3.0 ports, 3 USB 2.0 ports, one audio output port, and one mini-input port, allowing for various peripheral accommodations.
Operating System Compatibility: Compatible with Windows 11 Pro, providing a user-friendly interface and access to a wide range of applications.
Power Source: Operates on a 19V DC power supply, ensuring efficient energy consumption.
Operating Conditions: Designed to function optimally within a temperature range of -10°C to 50°C and humidity levels between 10% and 90% (non-condensing).
Dimensions and Weight: Measures 195mm × 180mm × 30mm and weighs approximately 1.24 kg, making it easy to integrate into existing setups.
Box Contents:
UniView HB-7099-M Pluggable PC Module
Power Adapter
User Manual
Warranty Card
The UniView HB-7099-M is an ideal solution for enhancing the functionality of UniView interactive smart displays, offering robust performance and versatile connectivity options to meet diverse business needs.
