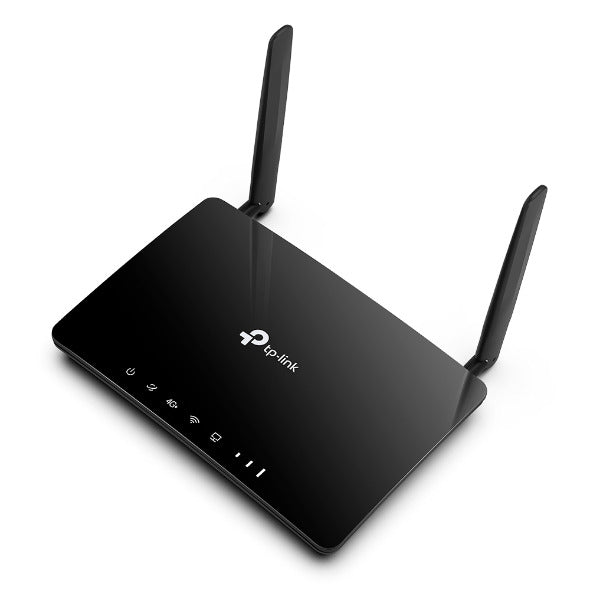

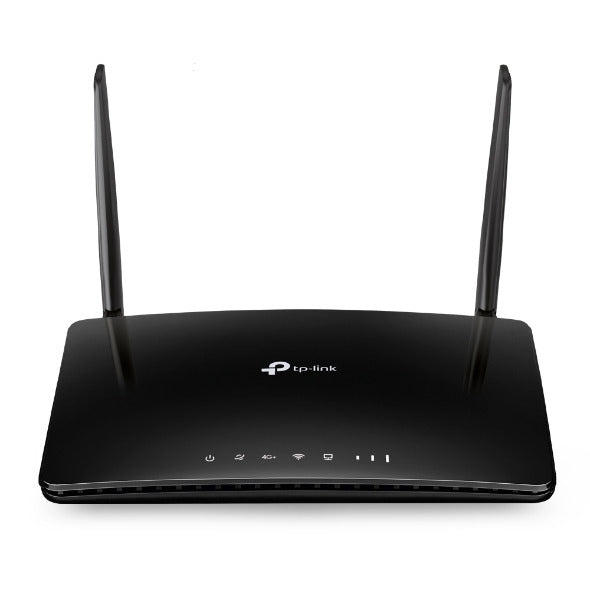

TP-Link Archer MR500 | AC1200 4G+ Cat6 Gigabit Dual-Band Wi-Fi Router
Description:

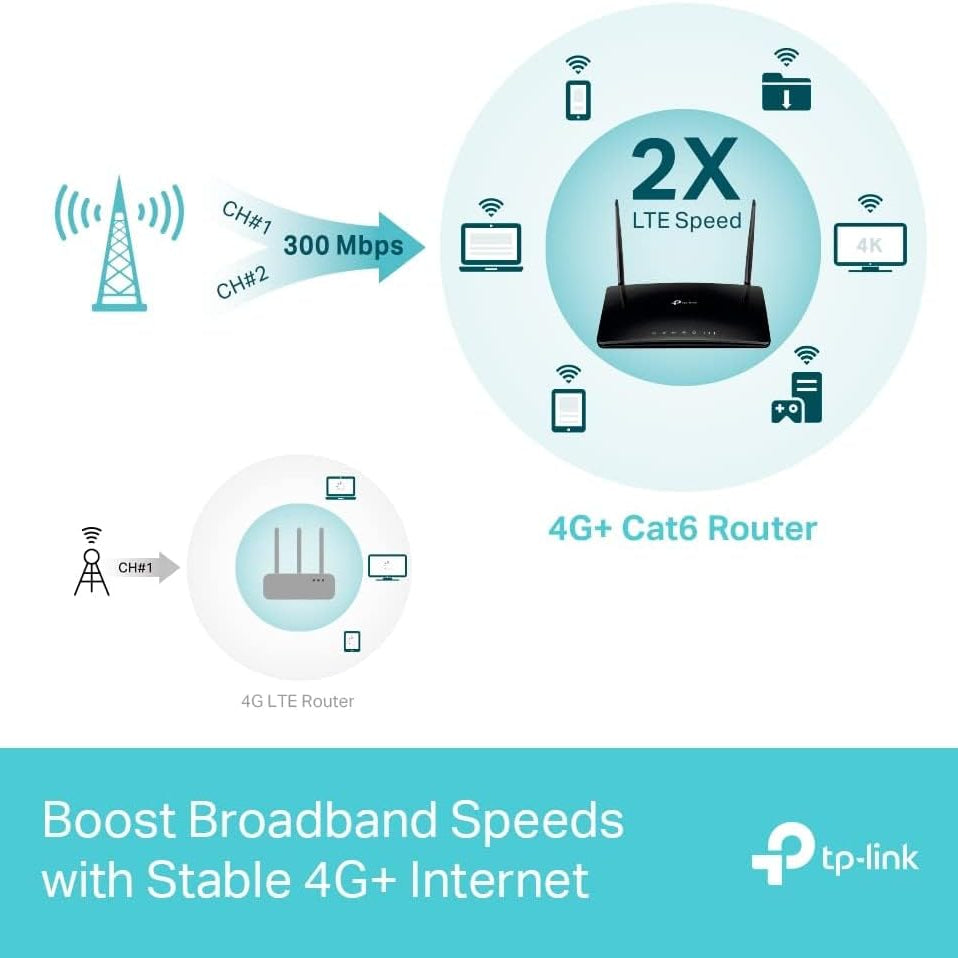

Advanced 4G+ Router – Supports 4G+ Cat6 to boost data speeds of up to 300 Mbps*

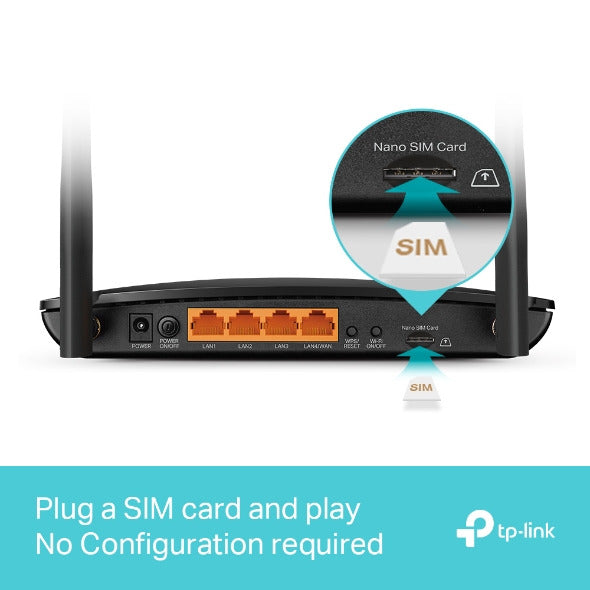

Plug and Play SIM Card – No configurations needed, compatibility of SIM cards in 100+ countries are assured by years of field tests.
MU-MIMO Supported – Simultaneous data streams increase Wi-Fi throughput and network efficiency.

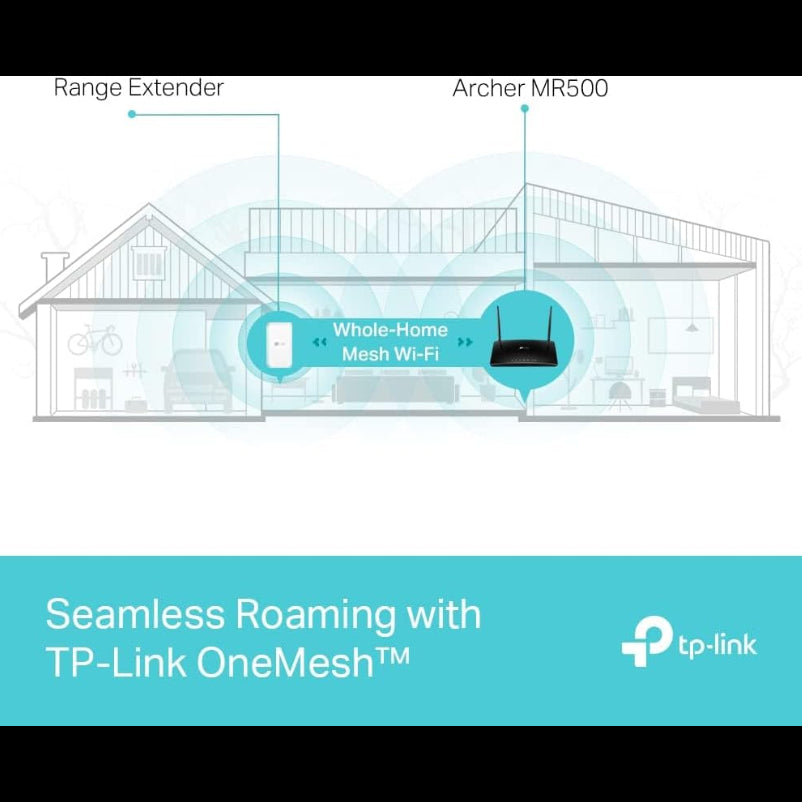

TP-Link OneMesh ™ Supported – Co-works with TP-Link OneMesh products to create a flexible and cost-efficient Mesh network.
Better Signal for Everywhere Connections – Enjoy stable and efficient connections with every device thanks to the two external detachable LTE antennas.

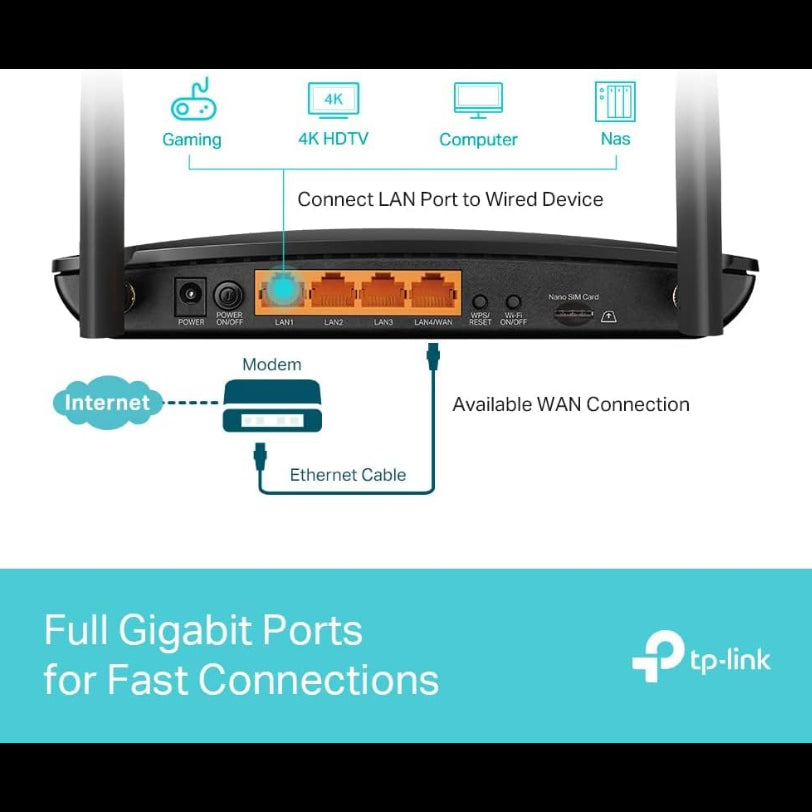

Full Gigabit Ports – Provides reliable wired connections for bandwidth-intensive devices such as game consoles and IPTVs.
Wi-Fi Router Mode – Plug an Ethernet cable into the LAN/WAN port for flexible access as a backup option if you can't get a 4G connection.
Easy Setup and Management all by Tether app

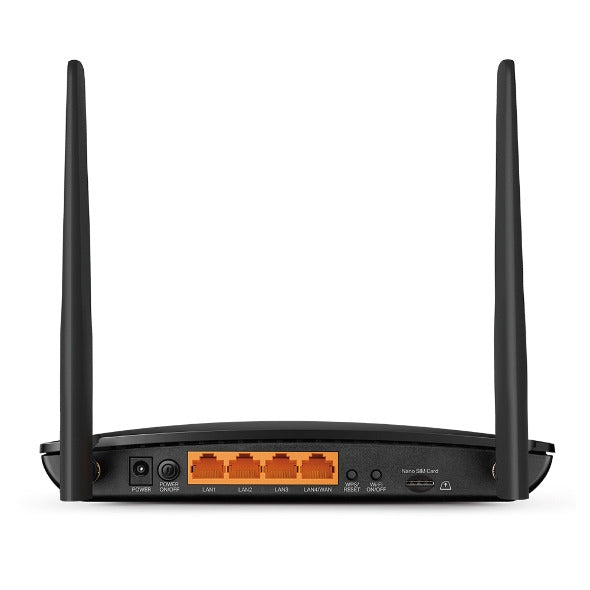

| Interface |
1x 10/100/1000 Mbps LAN/WAN Port
3x 10/100/1000 Mbps LAN Ports
1x Nano SIM Card Slot |
| Dimensions (W x D x H) |
202 × 141 × 33.6 mm (7.95 × 5.55 × 1.32 in) |
| Antenna |
2 Detachable External LTE Antennas |
| WIRELESS FEATURES |
| Wireless Standards |
IEEE 802.11a/n/ac 5 GHz, IEEE 802.11b/g/n 2.4 GHz |
| Frequency |
2.4 GHz and 5 GHz |
| Signal Rate |
300 Mbps at 2.4 GHz, 867 Mbps at 5 GHz |
| Reception Sensitivity |
5 GHz: 11a 54M: -77 dBm
11ac HT20: -73 dBm
11ac HT40: -68 dBm
11ac HT80: -64 dBm
11n HT20: -77 dBm
11n HT40: -73 dBm
2.4 GHz: 11g 54M: -74 dBm
11n HT20: -72 dBm
11n HT40: -69 dBm |
| Transmit Power |
< 20 dBm (2.4 GHz), < 23 dBm (5 GHz) |
| Wireless Functions |
Enable/Disable Wireless Radio, Wireless Schedule, WMM, Wireless Statistics |
| WAN Failover |
Yes |
| Wireless Security |
64/128-bit WEP, WPA/WPA2 personal, WPA/WPA2 Enterprise |
| Network Type |
Compatible with most mobile operators and supports 4G and 3G networks:
FDD-LTE: B1/B3/B5/B7/B8/B20/B28
(2100/1800/850/2600/900/800/700 MHz)
TDD-LTE: B38/B40/B41
(2600/2300/2500 MHz)
DC-HSPA+/HSPA/UMTS: B1/B3/B5/B8
(2100/850/900 MHz) |
SOFTWARE FEATURES
| Quality of Service |
Prioritizes network traffic by device |
| Security |
DoS Protection, IPv4 SPI Firewall, IPv6 Firewall, IP and MAC Address Binding, Access Control, Service Filtering |
| WAN Type |
Dynamic IP/Static IP/PPPoE/PPTP (Dual Access)/L2TP (Dual Access) |
| Management |
TP-Link Cloud, Local Management, Remote Management |
| DHCP |
Server, DHCP Client List, Address Reservation |
| Port Forwarding |
ALG, Virtual Server, Port Triggering, UPnP, DMZ |
| Dynamic DNS |
TP-Link, DynDNS, NO-IP |
| VPN |
VPN Server: PPTP VPN, OpenVPN |
| Parental Controls |
URL Filtering, Time Controls |
| Protocols |
IPv4, IPv6 |
| Guest Network |
1x 2.4 GHz Guest Network, 1x 5 GHz Guest Network |
OTHERS
| Certification |
CE, RoHS |
| Package Contents |
AC1200 4G+ Cat6 Gigabit Dual-Band Wi-Fi Router Archer MR500
Power Adapter
RJ45 Ethernet Cable
Quick Installation Guide |
| Environment |
Operating Temperature: 0℃~40℃ (32℉~104℉)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing |
