Description

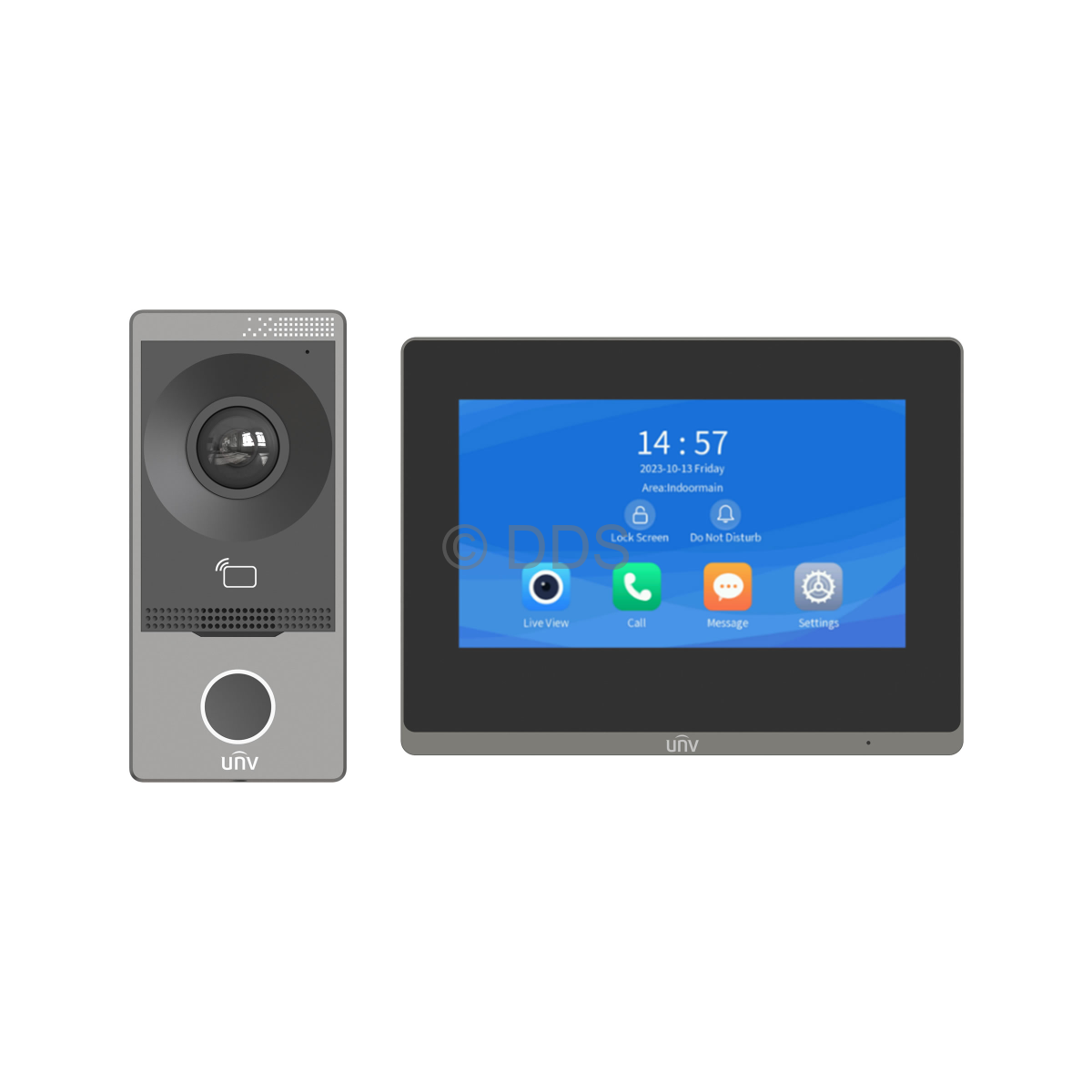

Smart Intercom Kit
🔧 Key Features and Specifications
Indoor Station — OEI-372S-HW
7-inch (1024x600) high-definition touchscreen with a user-friendly interface for calls, monitoring, and control
Supports 12V DC power or standard PoE (IEEE 802.3af)
Built-in Wi-Fi (2.4 GHz) + 100 Mbps network port
Audio features: noise suppression, echo cancellation, built-in microphone and speaker
Ports: RS485, I/O inputs/outputs, TF card slot for screenshots, network – supports up to 20 connected devices
Operating range: -10°C to +55°C, humidity 10 to 90% (non-condensing)
Compact design: 193 x 143 x 25 mm, weight ~360g
Outdoor Villa Station — OEU-201B-HMK-W
2MP wide-angle camera with IR illumination for night vision
Supports two-way audio (microphone + speaker) for communication with the indoor unit
Access control features: built-in MF card reader (13.56 MHz), mechanical call button, keypad (in some versions)
Supports up to 2000 users and 10,000 card credentials
Outdoor rating: IP65 weather-resistant and IK08 vandal-resistant
Power: 12V DC (±25%) or PoE (IEEE 802.3af)
Dimensions: 78 x 170 x 34 mm, weight ~0.261 kg
✅ Benefits of this Kit
Seamless indoor/outdoor communication
Integrated video, audio, and access control features in one package
Flexibility in power (PoE or DC) and network connectivity
Reliable performance in harsh weather conditions
Expansion support: connect additional indoor stations or cameras
