Description

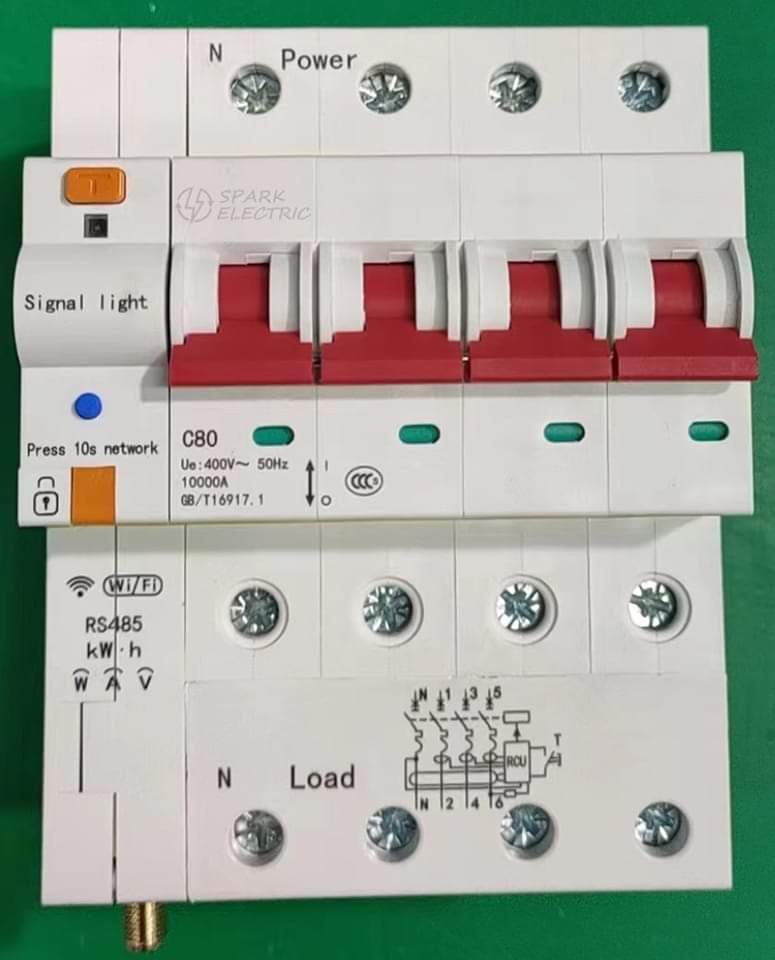

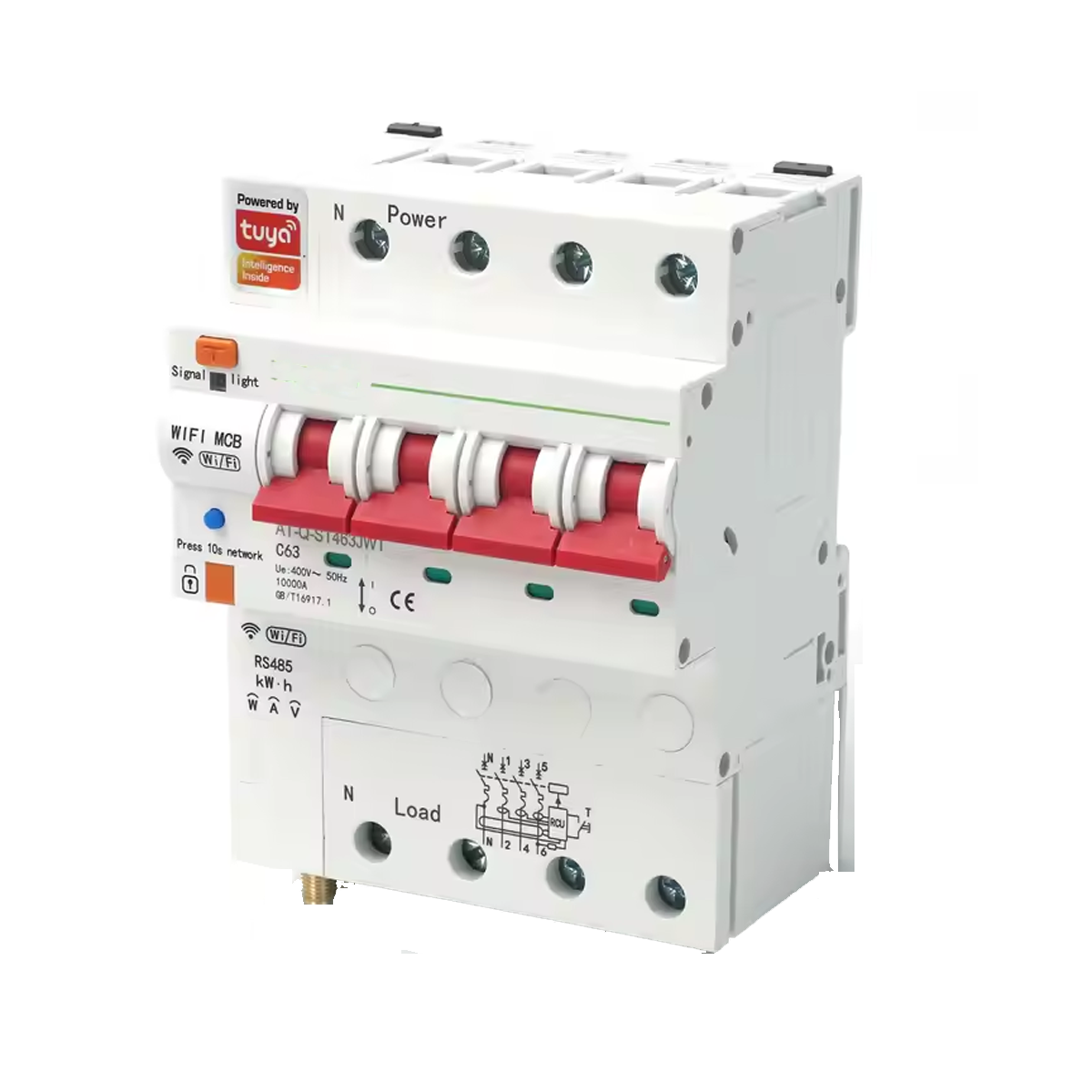

Smart 4-Pole Circuit Breaker (with Handle) (90mm / 100A) (Earth Leakage Meter / Power Meter)
Number of poles: 3 poles + neutral
Maximum frame current: 100A
Power supply mode: Shared power supply, with gateway
Short-circuit breaking capacity: Icn=Ics=10KA
Mechanical life > 10,000 times
Electrical equipment life > 6,000 times
Trip type: Type C
Electricity consumption measurement accuracy: Class 1.0
Low current protection, high current protection, high voltage protection, low voltage protection, power protection.
1. Remote opening and closing
2. It can monitor power, voltage, current, energy, temperature, and other grid parameters
3. It can protect against overvoltage and overcurrent. Parameters such as temperature and power limits can be adjusted, as well as protection value settings and function settings.
4. An application for remote control. Remote operation and parameter adjustment.
