Description

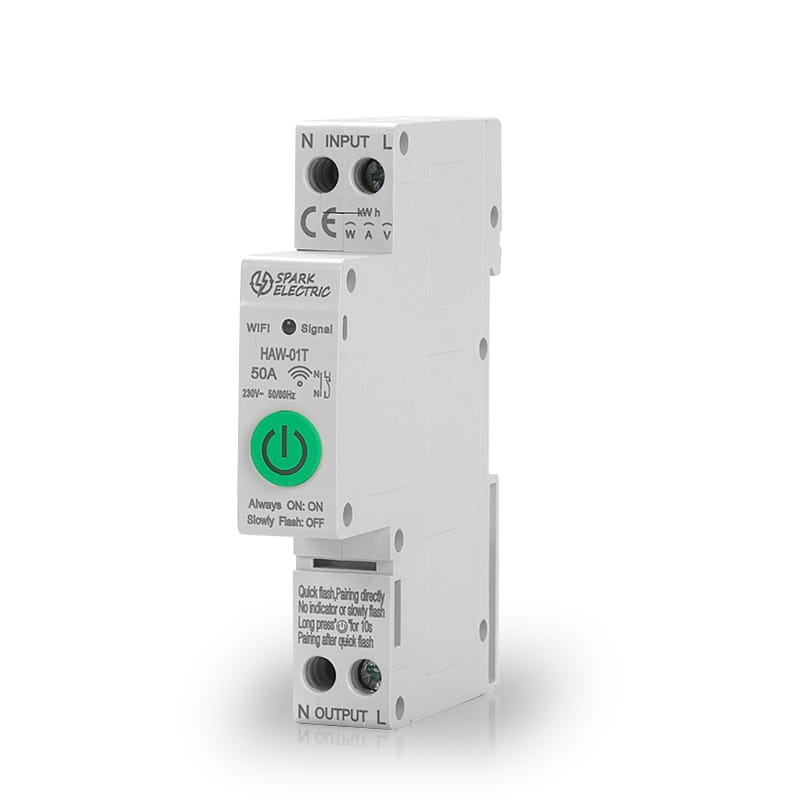

Single Pole Smart Breaker (Energy Meter) (19mm / 50A) HAW-01T
Monitor your energy consumption and protect yourself with the 1P TUYA APP WIFI Smart Energy Consumption Meter. This innovative breaker features a timer switch and voltage leakage protection, all controllable via the TUYA app. Stay connected and in control of your energy usage.
Specifications
◆ Brand Name: Spark Electric
◆ Type: Molded Case
◆ Rated Voltage: 220V
◆ Is customized: Yes
◆ Type: Circuit Breaker
◆ Model Number: EAYCBM-T-1P
◆ Function 1: ON/OFF Switch
◆ Function 9: Remote control at any time from anywhere
◆ Share: Share with all family members
◆ Operating Voltage: AC 90-240V
◆ Function 2: Time Relay Switch
◆ Function 3: Voltmeter
◆ Function 4: Ammeter
◆ Function 5: Power Meter
◆ Function 6: Current Limit
◆ Frequency: 50/60 Hz
◆ Operating Current: 10-50A
◆ Application: Tuya
◆ Control: Remote control, 2.4 GHz WiFi connection
◆ Poles: 1P
◆ Function 7: Overvoltage protection
◆ Function 8: Overcurrent protection
◆ WiFi Frequency: 2.4 GHz
◆ Rated Power: 13.5 KW
Features
◆ Remote control at any time from anywhere via TUYA / Smart Life mobile app, no distance limit.
◆ Schedule / Timing, Countdown, Cycle Timing
Parameter :
◆ Operating Voltage: AC 90-240V, 50/60Hz
◆ Current Type: 10-50A
◆ Wireless Type: WiFi 2.4GHz
◆ Support Systems: Android/iOS
Function :
◆ ON/OFF Switch
◆ Time Relay Switch
◆ Voltmeter
◆ Ammeter
◆ Power Meter
◆ Overcurrent protection 10A - 50A (adjustable) (default: 35A)
◆ Overvoltage protection 1V - 400V (adjustable) (default: 265V)
◆ Undervoltage protection 50V - 300V (adjustable) (default: 180V)
◆ Current Limiting
