Description

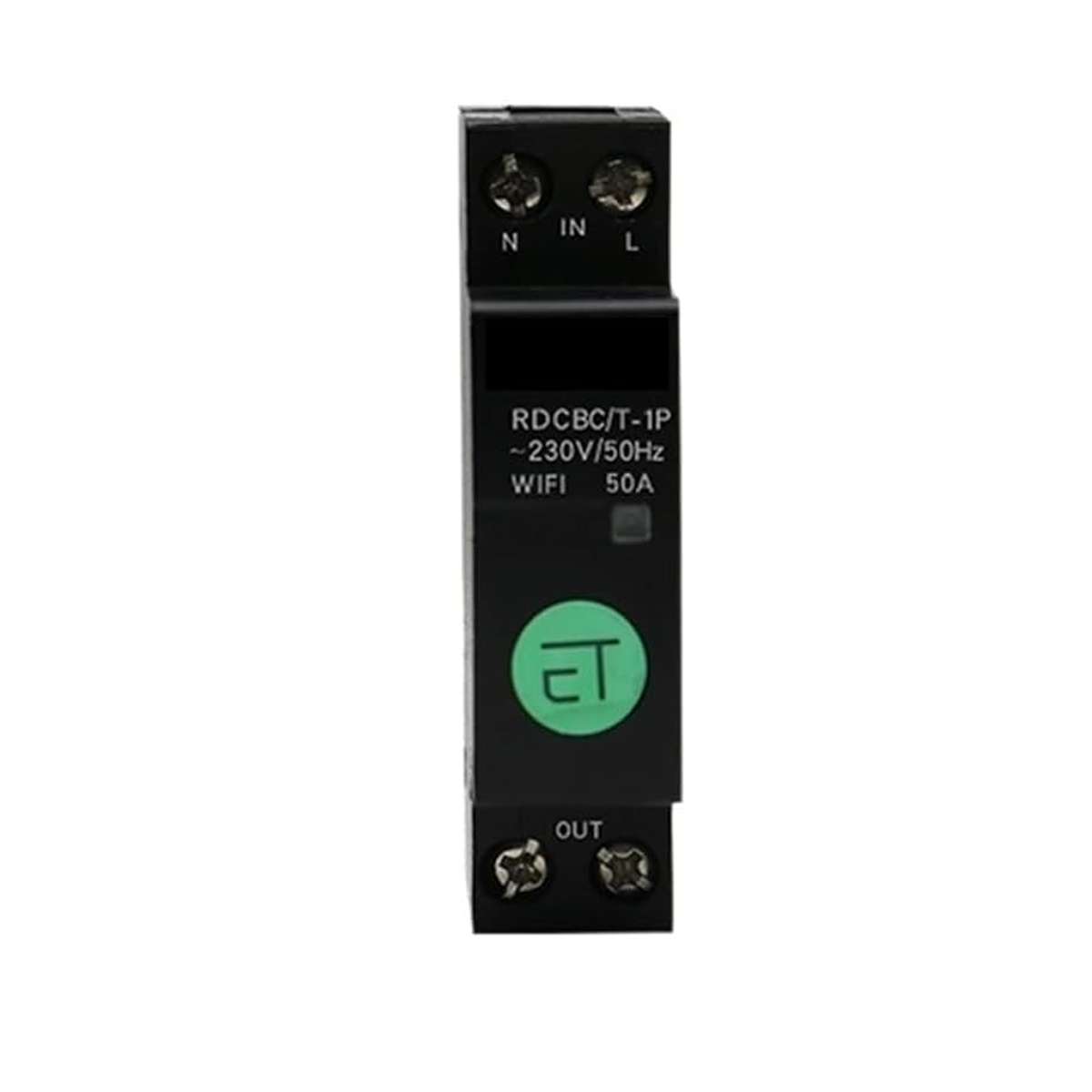

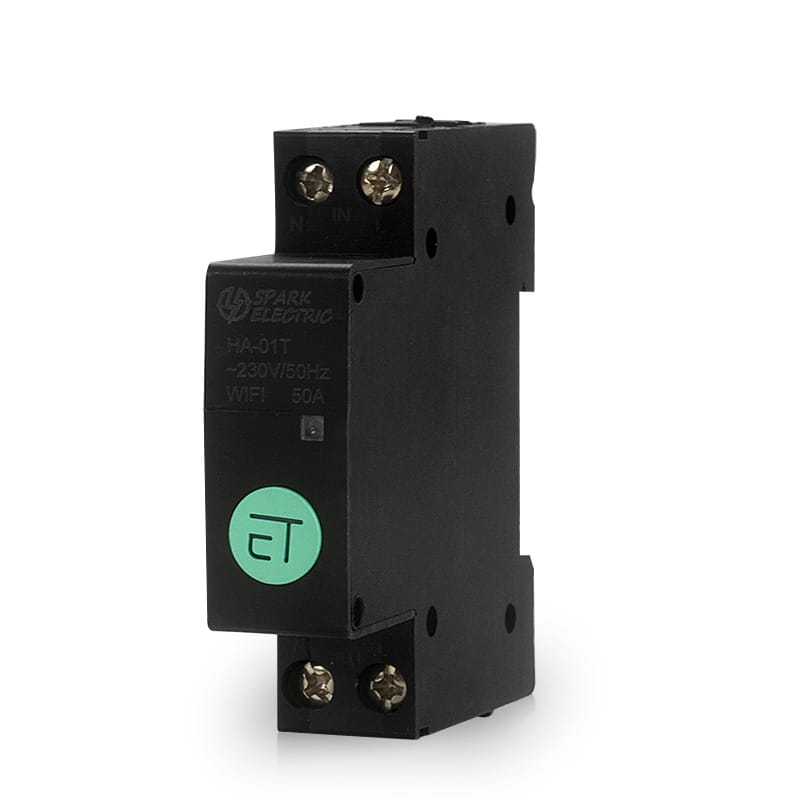

Smart Single Pole Breaker (19mm / 50A) HA-01T
Monitor your power consumption and protect yourself with the 1P TUYA APP. This innovative circuit breaker features a timer switch and voltage leakage protection, all controllable via the TUYA app. Stay connected and in control of your power.
Specification
◆ Brand Name: Spark Electric
◆ Type: Molded Case
◆ Rated Voltage: 220V
◆ Is Customized: Yes
◆ Type: Circuit Breaker
◆ Model Number: EAYCBM-T-1P
◆ Function 1: ON/OFF Switch
◆ Function 9: Remote control at anytime from anywhere
◆ Share: Share with all family members
◆ Working Voltage: AC 90-240V
◆ Function 2: Time Relay Switch
◆ Function 3: Voltmeter
◆ Function 4: Ammeter
◆ Function 5: Current Limiting
◆ Frequency: 50/60Hz
◆ Operating Current: 10-50A
◆ APP: TUYA
◆ Control: Remote control, 2.4GHz WiFi connection
◆ Poles: 1P
◆ Function 6: Overvoltage Protection
◆ Function 7: Overcurrent Protection
◆ WIFI Frequency: 2.4GHz
◆ Rated Wattage: 13.5KW
Features
◆ Remote control at anytime from anywhere via TUYA / Smart Life app on mobile, no distance limit.
◆ Schedule / Timing, countdown, cycle timing
Parameter :
◆ Working Voltage: AC 90-240V, 50/60Hz
◆ Current Type: 10-50A
◆ Wireless Type: Wi-Fi 2.4GHz
◆ Support Systems: Android/iOS
Function :
◆ ON/OFF Switch
◆ Time Relay Switch
◆ Voltmeter
◆ Ammeter
◆ Overcurrent Protection 10A-50A (Adjustable) (Default: 35A)
◆ Overvoltage Protection 1V-400V (Adjustable) (Default: 265V)
◆ Undervoltage Protection 50V-300V (Adjustable) (Default: 180V)
◆ Current Limit
