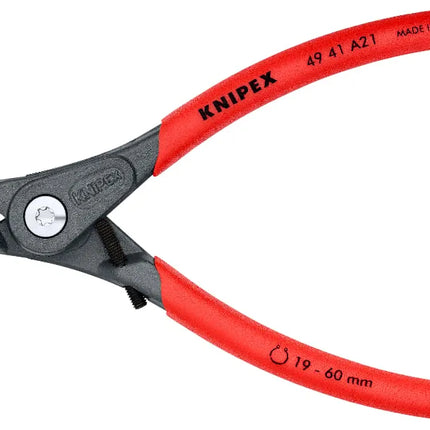

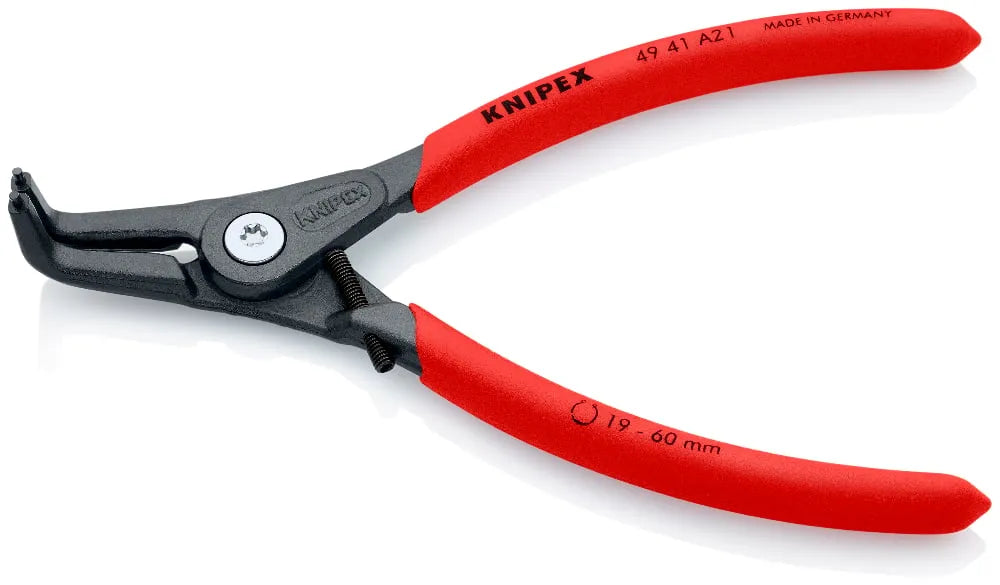

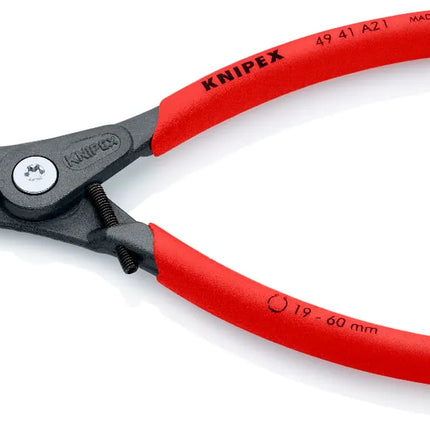

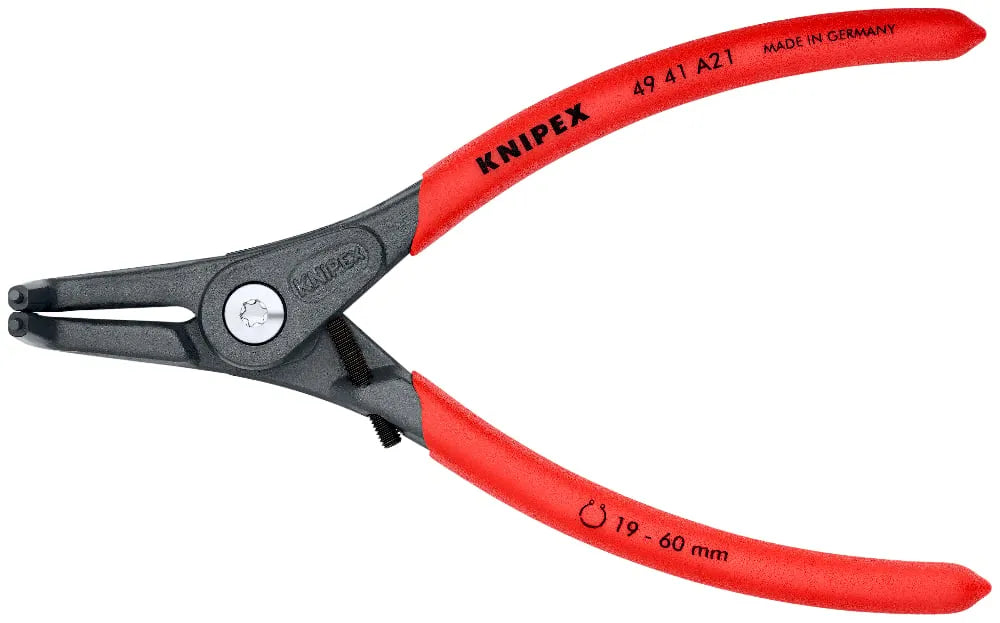

Nibex 165mm External Kabashi Pliers | 49 41 A21

Description

  • Description: Nibex 49 41 A21 external chuck pliers are designed for fitting and removing external mounting rings on shafts with diameters ranging from 19 mm to 60 mm. These pliers are built to withstand continuous use, offering a service life up to 10 times longer than lathe-machined tips.
  • Key advantages:
    • Durable ends: Equipped with cold-formed spring steel wire ends to ensure high stability and a long service life.

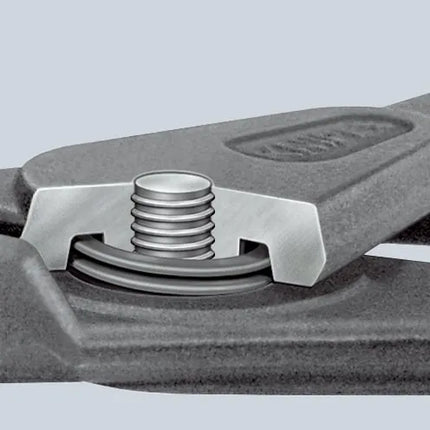

    • Secure grip: Large contact surfaces on the ends to prevent deformation of the mounting rings, facilitating installation and safe use.
    • Precision hinge: A bolt-on hinge design ensures precise operation without backlash, which helps in precise control of the mounting rings.
    • Protection against overstretching: Equipped with an adjustable limiter to prevent the mounting rings from stretching excessively during installation.
    • Comfortable handles: Handles covered with non-slip plastic to provide a safe and comfortable grip during use.
  • Specifications:
    • Dimensions: Length 165 mm; Width 36 mm; Height 13 mm
    • Weight: 169 grams
    • Material: The pliers body is made of electro-hardened, oil-hardened chrome vanadium steel; the tips are made of drawn spring steel wire.
    • Color options: Gray finish treated with atrimonium coating
    • Operating method: Manual
    • Other specifications:
      • Tip diameter: 1.8 mm
      • Compliant with standards: DIN 5254 B

    • Nibex 165mm External Kabashi Pliers | 49 41 A21

    Product form

    SKU: 49 41 A21

    Description: Nibex 49 41 A21 external chuck pliers are designed for fitting and removing external mounting rings on shafts with... Read more

    35.000 JD Excl. VAT

      Description

    • Description: Nibex 49 41 A21 external chuck pliers are designed for fitting and removing external mounting rings on shafts with diameters ranging from 19 mm to 60 mm. These pliers are built to withstand continuous use, offering a service life up to 10 times longer than lathe-machined tips.
    • Key advantages:
      • Durable ends: Equipped with cold-formed spring steel wire ends to ensure high stability and a long service life.
      • Secure grip: Large contact surfaces on the ends to prevent deformation of the mounting rings, facilitating installation and safe use.
      • Precision hinge: A bolt-on hinge design ensures precise operation without backlash, which helps in precise control of the mounting rings.
      • Protection against overstretching: Equipped with an adjustable limiter to prevent the mounting rings from stretching excessively during installation.
      • Comfortable handles: Handles covered with non-slip plastic to provide a safe and comfortable grip during use.
    • Specifications:
      • Dimensions: Length 165 mm; Width 36 mm; Height 13 mm
      • Weight: 169 grams
      • Material: The pliers body is made of electro-hardened, oil-hardened chrome vanadium steel; the tips are made of drawn spring steel wire.
      • Color options: Gray finish treated with atrimonium coating
      • Operating method: Manual
      • Other specifications:
        • Tip diameter: 1.8 mm
        • Compliant with standards: DIN 5254 B
