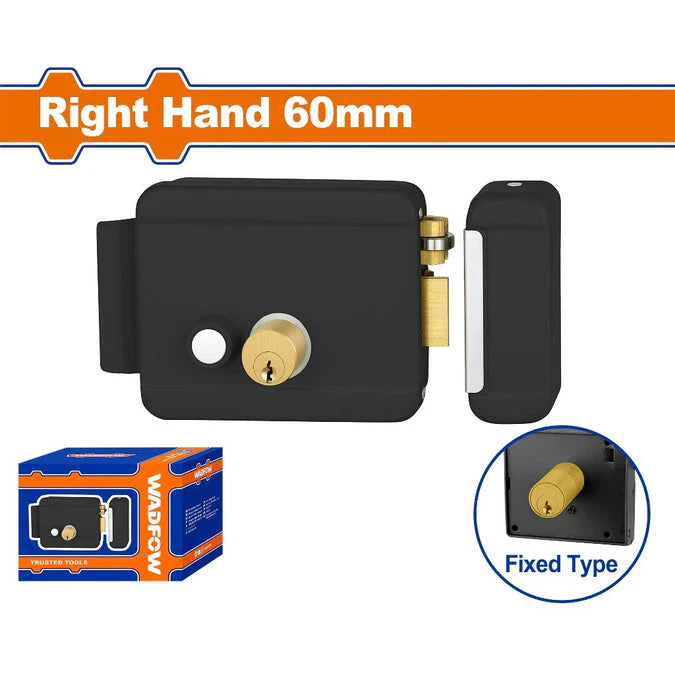

Integrated electric rim lock with right-hand opening, made of durable brass, and quick opening.
The electric rim lock is designed to provide enhanced security for your doors with its robust construction and reliable performance. It features a right-hand opening and a 50mm fixed cylinder, ensuring secure installation and ease of use. Its dimensions are 130x105x40mm, making it compact yet effective in securing premises. It is powered by 12V DC with a ±10% tolerance, operating efficiently with a current range of 1.5 to 3 Amps. The lock opens quickly in just one second, thanks to its aluminum coils encased in a brass cover. The cylinder and cylinder bolt are made of brass, ensuring durability and longevity. The cylinder bolt is reinforced with a stainless steel wheel, and the deadbolt is also made of brass. The lock body and strike box are made of carbon steel, painted black for a sleek appearance. Each lock comes with three brass keys and is attractively packaged in a colored box.
Key Features
- Right-hand opening
- 50mm fixed cylinder
- Compact dimensions: 130x105x40 mm
- 12V DC powered
- Quick opening within 1 second
Technical Specifications
| Attribute |
Value |
| Material |
Brass and Carbon Steel |
| Dimensions |
130x105x40 mm |
| Weight |
Not specified |
| Power |
12V DC ±10% |
| Warranty |
Standard manufacturer's warranty |
