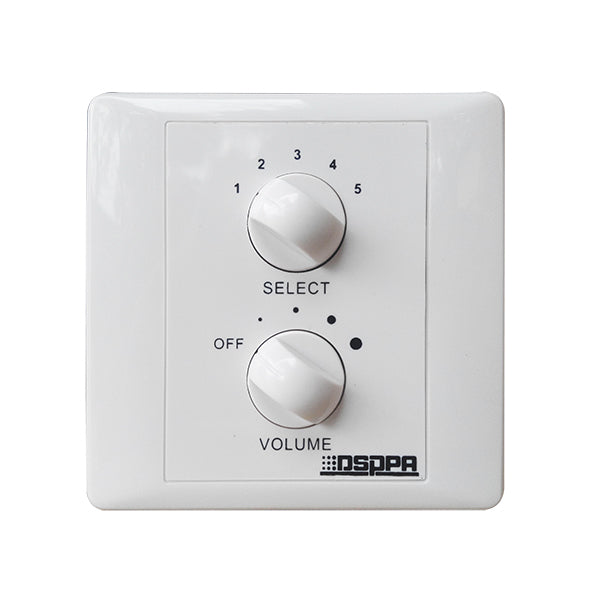

DSPPA WH-2 6W Speaker Volume Controller with Selector
Description:
WH-2 is a volume controller with channel selector, expandable to 30W, 60W, 120W, and 200W capabilities.
Features
◆ Two-wire, three-wire, and four-wire connection options are available.
◆ Expandable capacity for 30W, 60W, 120W, and 200W available.
◆ Integrate with program selector.
◆ ABS material.
Specifications of DSPPA WH-2 6W Speaker Volume Controller with Selector:
General
Type: Wall-mounted volume controller with selector
Speaker Type: Voltage line speaker controller
Control Style: Transformer-type volume control
Designed for adjusting the volume in 70V / 100V public address speaker systems.
━━━━━━━━━━━━━━━━━━
Power & Input
Rated Power: 30W
Signal Input: 70V – 100V line
━━━━━━━━━━━━━━━━━━
Controls
Attenuation Type: Impedance attenuation
Volume Steps: 5-step selector
━━━━━━━━━━━━━━━━━━
Installation

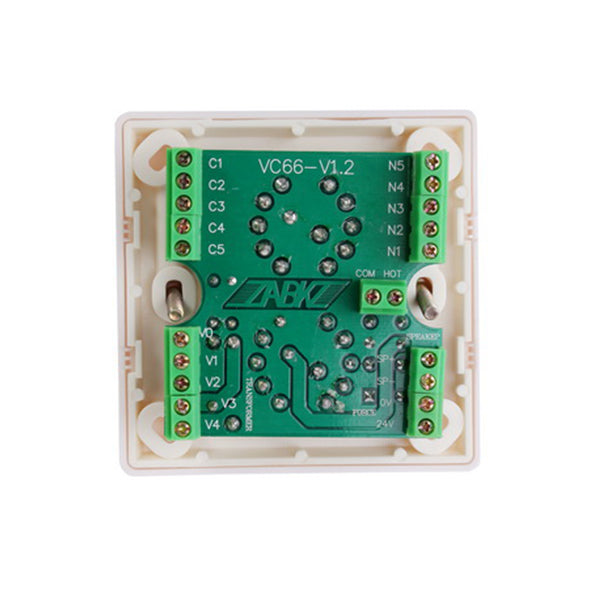

Wiring Mode: 2-wire / 3-wire / 4-wire connection
━━━━━━━━━━━━━━━━━━
Physical Specifications
Dimensions (L × W × H): 85 × 85 × 60 mm
Color: White ABS housing
━━━━━━━━━━━━━━━━━━
Property
Volume controller with selector
