Description
250W DSPPA Mini Digital Amplifier with USB & Bluetooth | MP250UB

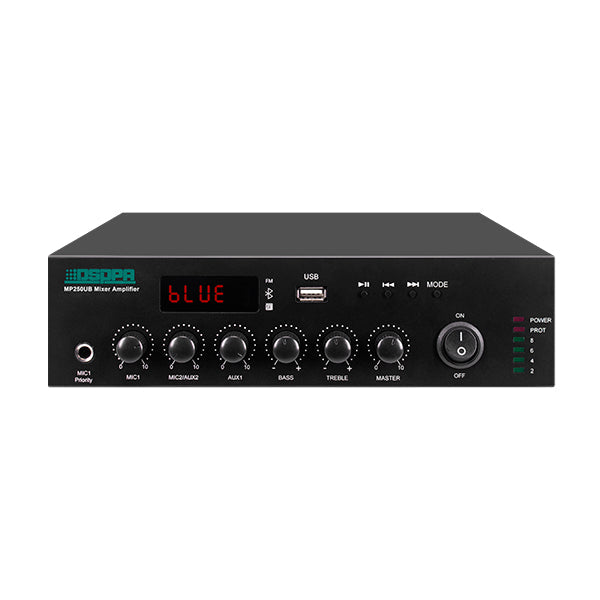

DSPPA MP250UB 250W Mini Digital Amplifier with USB & Bluetooth
This product is a mini (1.5U) digital amplifier with USB, FM radio, and Bluetooth, with optional 70V/100V speaker output and 4-16Ω impedance. The product has two AUX inputs and one AUX output, as well as two microphone inputs. The first input (MIC 1) is a 6.3mm jack on the front panel, while the second input (MIC 2) is an XLR port on the rear panel. Phantom power is available for the second input (MIC 2). The product also provides individual volume control for both microphone and AUX input, as well as bass and treble volume control. Furthermore, the product has two EMC signal inputs (100V/375mV) and one EMC output.
-
Features
● Built-in Bluetooth, tuner and USB function.
● 2 MIC inputs, 2 LINE inputs, 1 LINE output.
● 2 EMC IN (100V/375mV), 1 EMC OUT.
● Constant voltage output 100V or 70V, and constant impedance output from 4Ω to 16Ω.
● Supports IR remote control.
● With priority function, priority EMC/MIC1＞AUX1/AUX2/MIC2.
● With master volume control, individual microphone and line volume control, as well as treble and bass volume control.
250W DSPPA Mini Digital Amplifier with USB & Bluetooth | MP250UB Specifications:
Output Power
Rated Power: 250W
Output Voltage: 70V / 100V (Constant Voltage Output)
━━━━━━━━━━━━━━━━━━
Input Sensitivity
MIC1 Input: 8mV ±10%
MIC2 Input: 8mV ±10%
AUX1 Input: 350mV ±10%
AUX2 Input: 350mV ±10%
EMC Input: 350mV ±10%
━━━━━━━━━━━━━━━━━━
Audio Performance
MIC Frequency Response: 200Hz-10KHz (±3dB)
AUX Frequency Response: 100Hz-16KHz (±3dB)
Noise: Less than 10mV
Total Harmonic Distortion: <1% (1KHz)
Tone Control:
Treble: ±10dB (±2)
Bass: ±10dB (±2)
━━━━━━━━━━━━━━━━━━
Power Specifications
Power Supply: AC 110-120V / AC 220-240V, 50/60Hz (selectable via switch)
━━━━━━━━━━━━━━━━━━
Physical Specifications
Device Dimensions (D × W × H): 250 × 230 × 66 mm
Package Dimensions (1pc): 363 × 292 × 106 mm
Master Carton (4 pcs): 610 × 390 × 240 mm
Net Weight: 3 kg
Gross Weight: 3.7 kg (1 pc)
