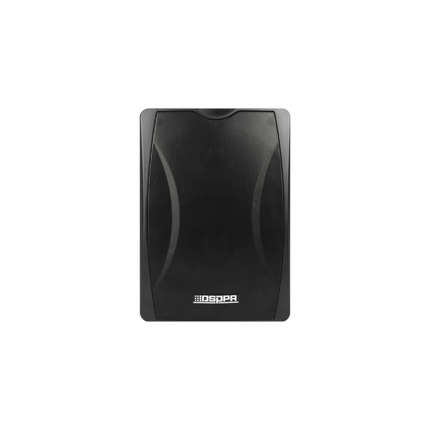

DSPPA 20W Wall Mount Speaker | DSP8062

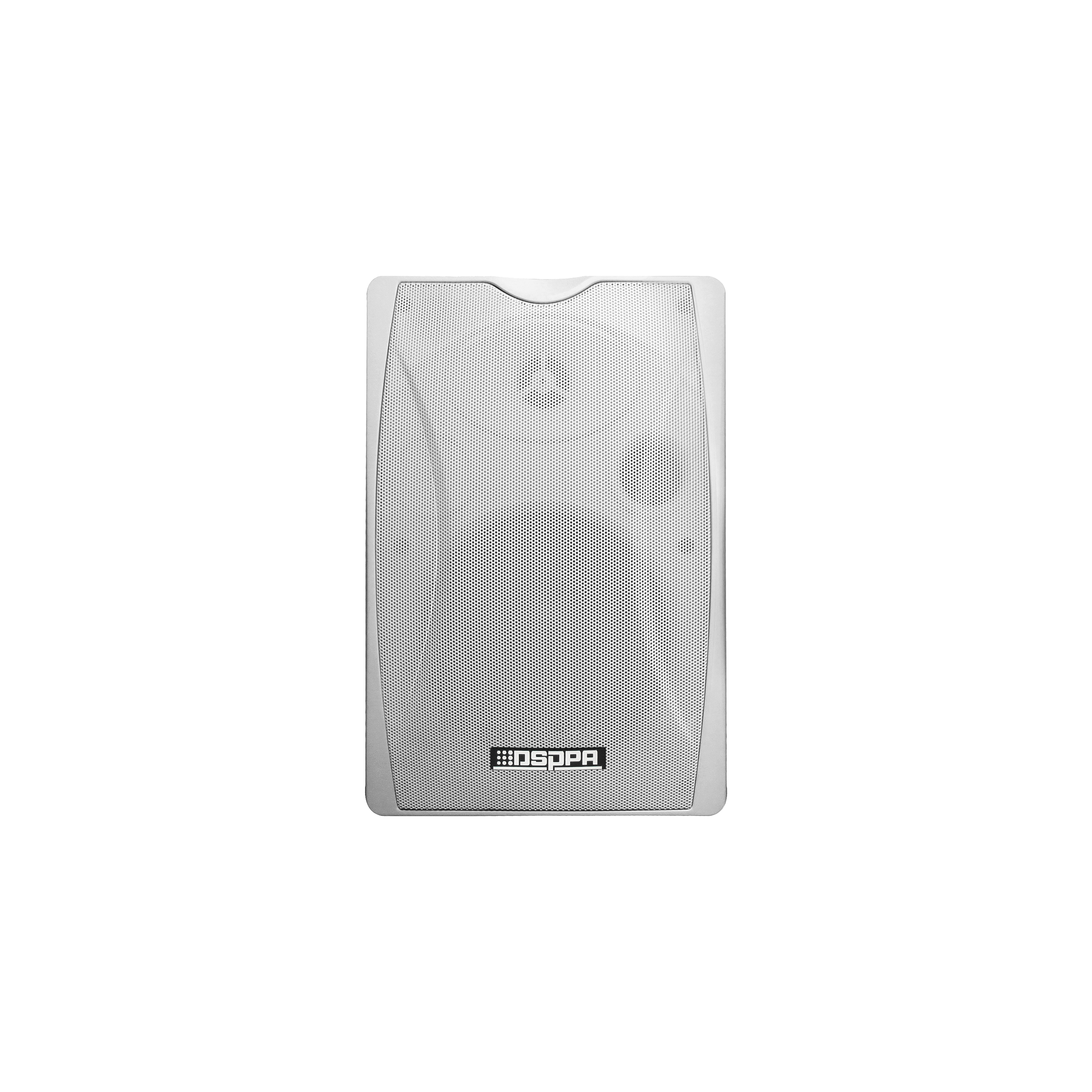

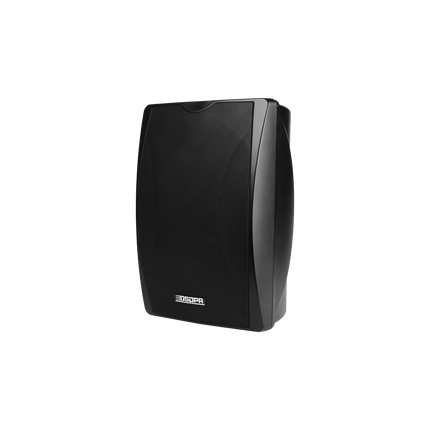

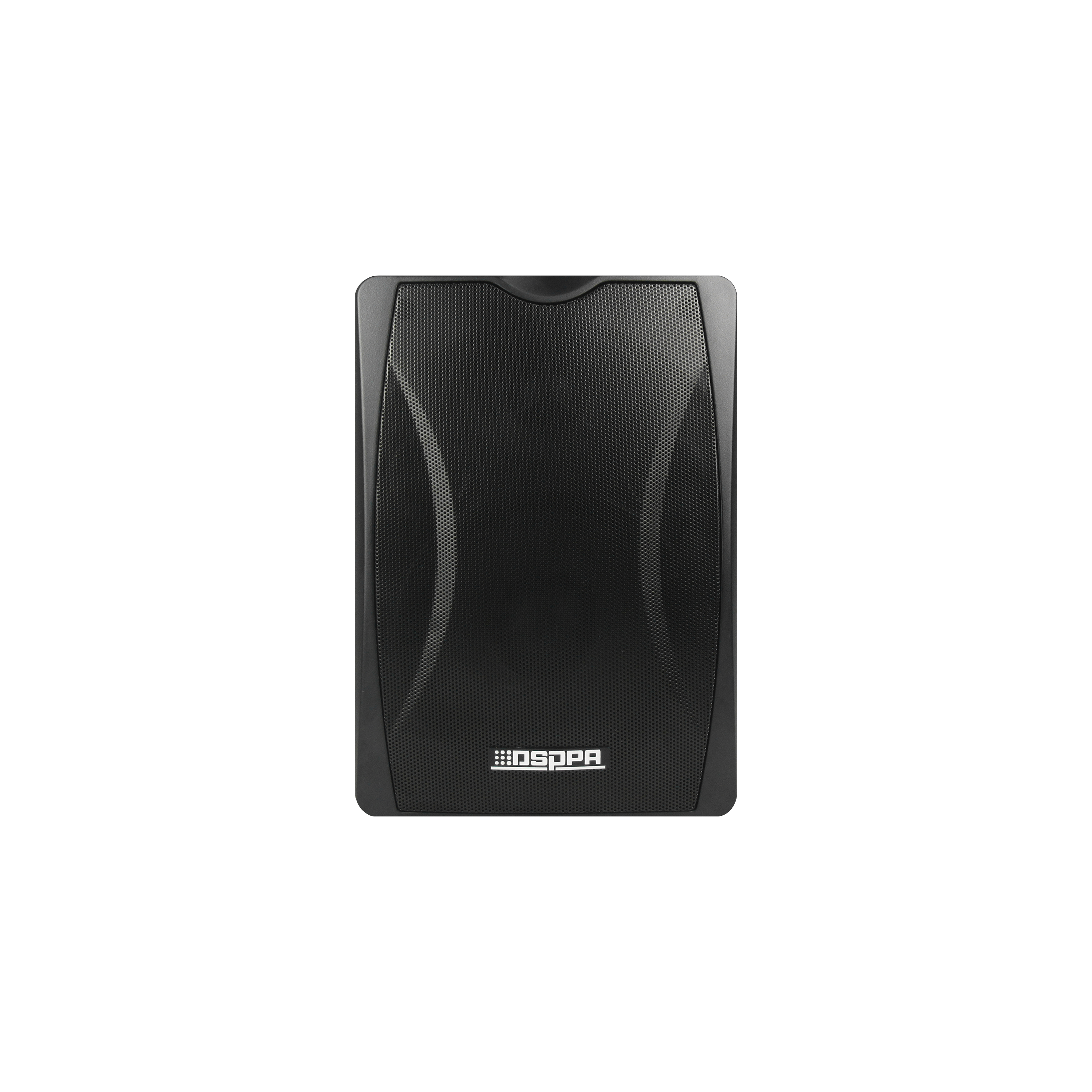

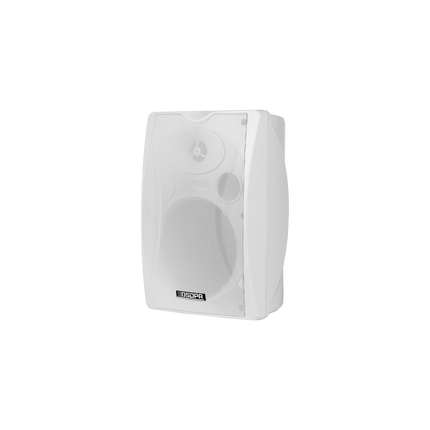

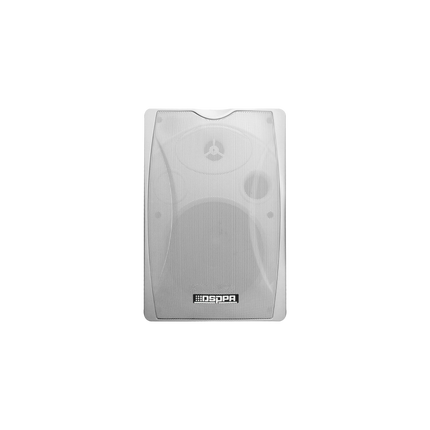

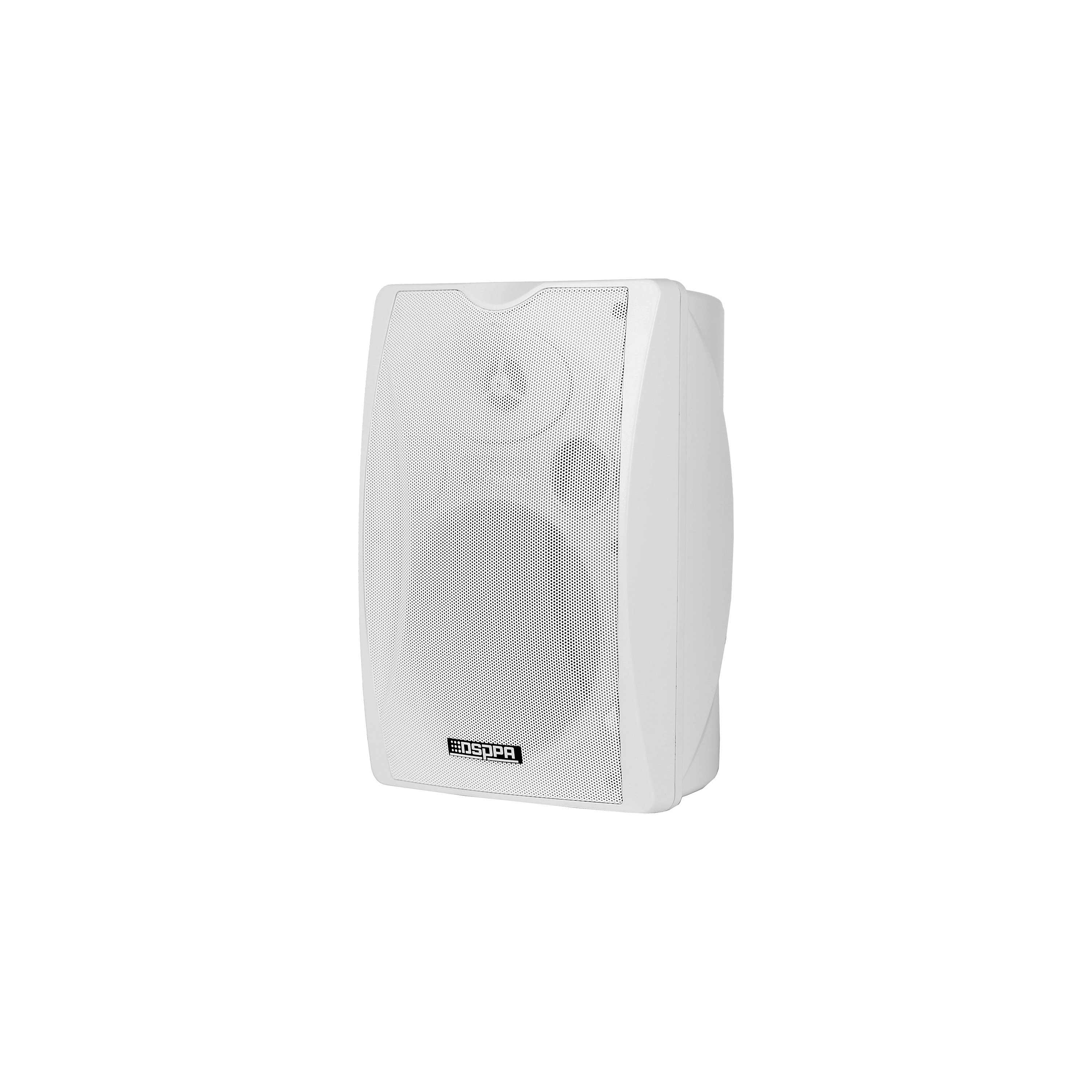

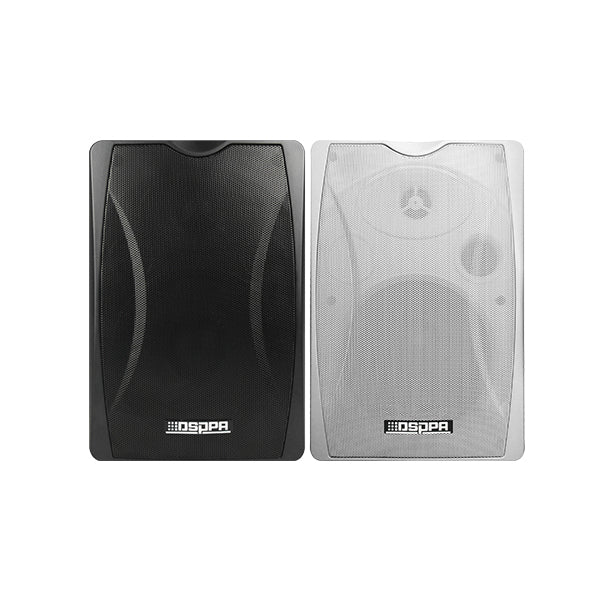

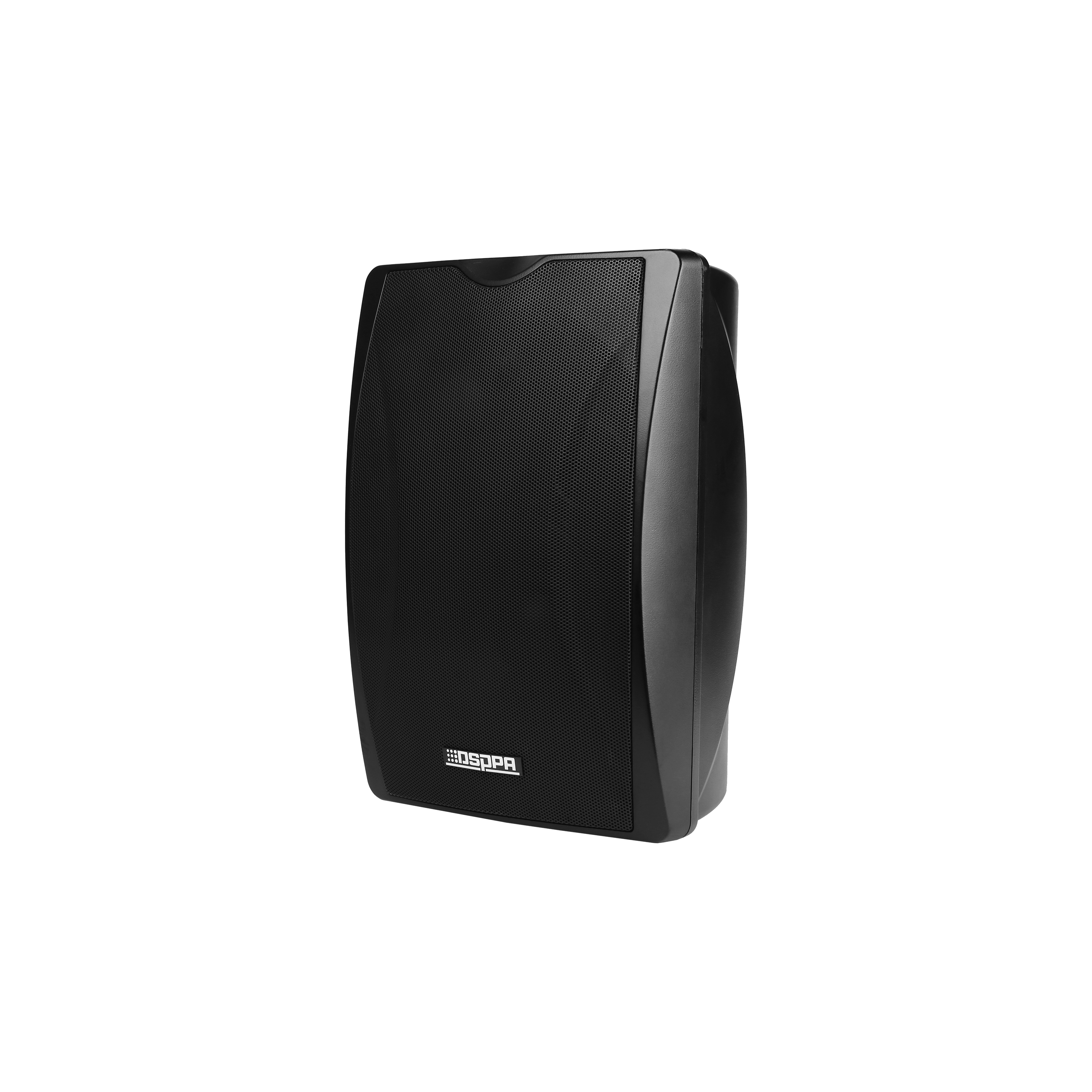

DSPPA DSP8062 20W Wall Mount Speaker
(Black - White)
The DSP8062 speaker is a wall-mount speaker with a built-in 70V/100V transformer. The 70V/100V transmission is carried out in a high-voltage, low-current mode, which allows for longer audio transmission distances and parallel connection of multiple speakers.
Metal grille and black ABS enclosure, long-lasting durability, no deformation, no fading; high sensitivity, clear and pure sound. Easy and safe wall mounting with hanging holes.
It is the ideal choice for industrial and commercial applications in hotels, schools, offices, and factories where background music and paging systems are needed.
Features

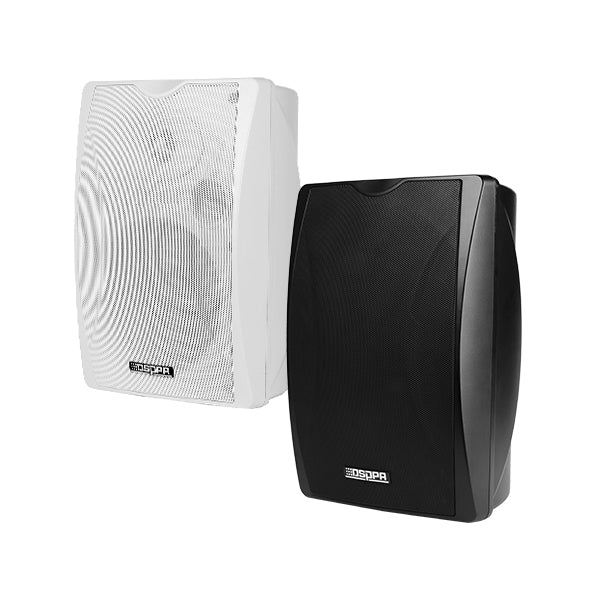

◆ Simple modern aesthetic design, available in black and white.
◆ Integrated professional wall design, elegant appearance, high-end and sophisticated finishes.
◆ Focus on sound quality, inverse phase type design, equipped with dual high and low tone unit, clear, soft, transparent, crisp and bright sound, strong bass.
◆ Adjustable power knob on the back, allowing free selection of input mode.
◆ Grille: Made of pure aluminum 1060, undergoes hardening and anti-oxidation treatment, not easily deformed, never rusts.
◆ Box structure: Made of thick UL94V-0 fire-resistant ABS material, durable in use, safe and reliable.
◆ Drive unit: High-frequency diaphragm is made of natural silk film; low-frequency diaphragm is made of polypropylene material, 3-3.5 inch magnetic circuit design.
◆ Mounting bracket: Precise anti-rust treatment.
◆ 20W wall-mounted speaker with power tap
◆ 70V/100V/8Ω input
◆ Wide frequency response range: 95Hz - 20kHz
◆ Maximum SPL: 103±2dB
◆ High sensitivity: 90±2dB
◆ Wall-mount speaker
◆ Metal grille and black ABS enclosure

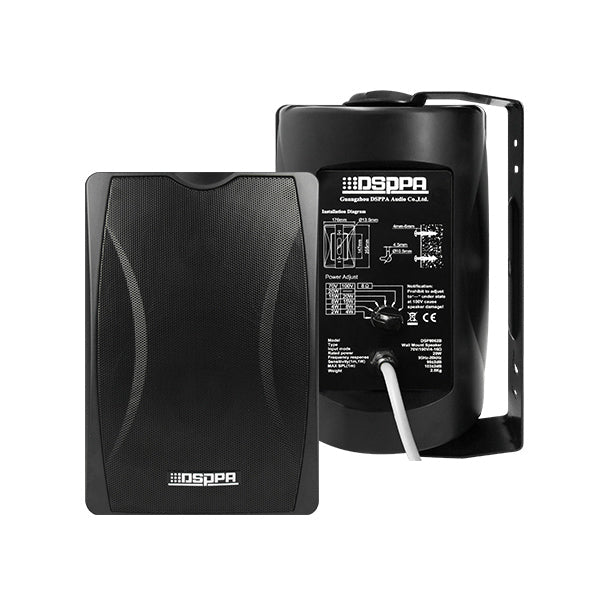

◆ Equipped with hanging holes for easy installation
DSPPA DSP8062 20W Wall Mount Speaker Specifications:
Speaker unit: Woofer 4" x 1 + Tweeter 1" x 1
Rated power: 20W
Sensitivity (1W/1M): 90±2dB
Max SPL (at 1M): 103±2dB
Frequency response: 95Hz - 20kHz
Power taps:
70V: 20W / 15W / 8W / 4W / 2W
100V: 20W / 15W / 8W / 4W
8Ω: 20W
Dimensions (H x W x D): 255 x 176 x 170 mm
Net weight: 2.6 kg
