Description
DSPPA 8-inch 10W Coaxial Ceiling Speaker - DSP8011

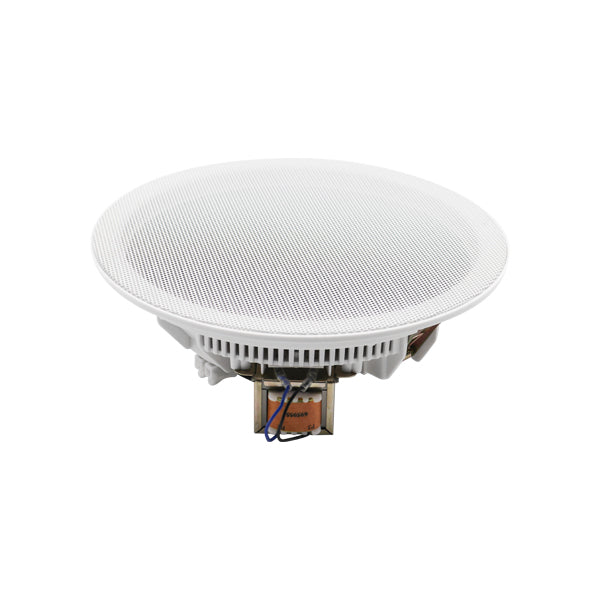

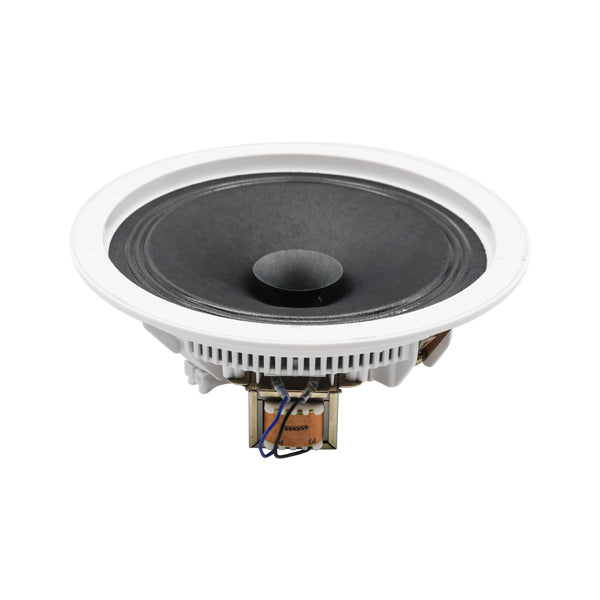

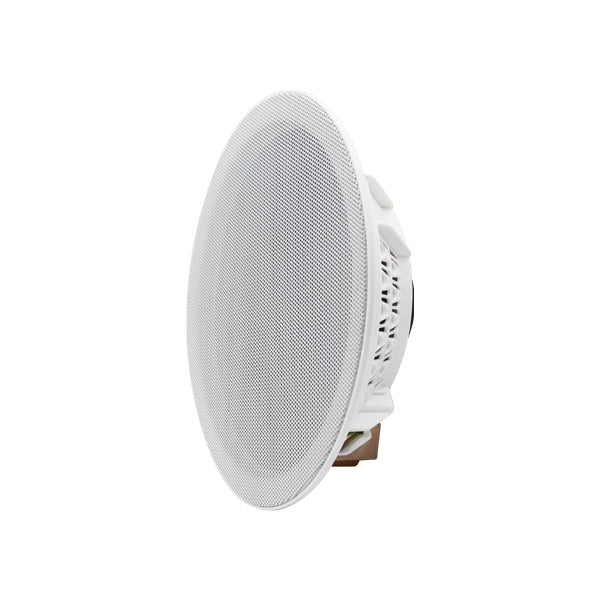

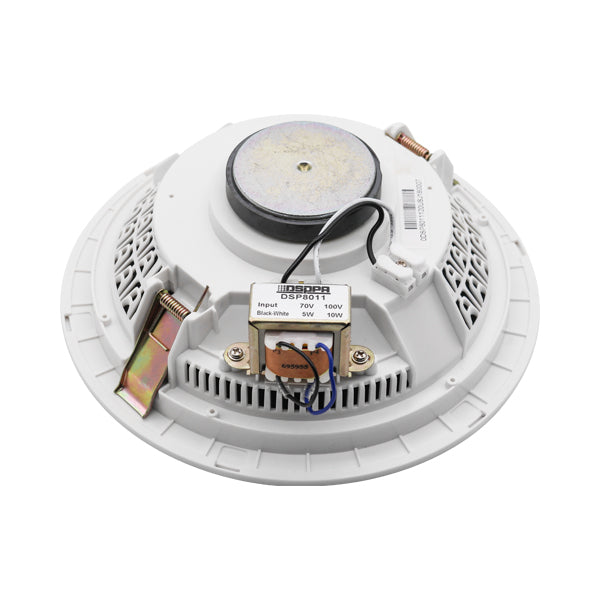

DSPPA DSP8011 Coaxial Ceiling and Wall-mounted Speaker
The DSP8011 ceiling speaker is made of high-quality engineering plastic, making it durable and resistant to deformation or fading. It is also equipped with a robust movable clamp for easy installation. Additionally, it features shock absorption treatment at the speaker edges, ensuring a long lifespan and clear, crisp sound.
Features
◆ Operating voltage 70V / 100V, multiple terminals, suitable for various occasions.
◆ Maximum sound pressure level 104±2dB, effective frequency range 60Hz - 18kHz.
◆ Robust movable clamp design, easy to install.
◆ Weight 0.8kg, made of high-quality engineering plastic, durable, no deformation, no fading.
◆ Speaker edge damping treatment, long service life, high sensitivity (94±2dB), clear and bright sound.
◆ 8-inch 10W Frameless Ceiling Speaker
◆ Operating voltage 70/100V, multiple terminals, suitable for various occasions;
◆ Maximum sound pressure level 104±2dB, effective frequency range 60Hz - 18kHz;
◆ Robust movable clamp design, easy to install;
◆ Weight 0.8kg, made of high-quality engineering plastic, durable, no deformation, no fading;
◆ Speaker edge damping treatment, long service life, high sensitivity (94±2dB), clear and bright sound.
Specifications of DSPPA DSP8011 Coaxial Ceiling and Wall-mounted Speaker:
DSPPA DSP8011
Ceiling Speaker – 10W (70V / 100V)
━━━━━━━━━━━━━━━━━━
Power Specifications
Rated Power Taps & Voltage:
70V: 5W
100V: 10W
━━━━━━━━━━━━━━━━━━
Acoustic Performance
Frequency Response: 60Hz - 18kHz
Sensitivity (1W / 1m): 94 ±2dB
Max SPL (1m): 104 ±2dB
━━━━━━━━━━━━━━━━━━
Installation
Installation Cutout Size: Φ208 – 215mm
━━━━━━━━━━━━━━━━━━
Physical Specification
Weight: 0.8 kg
