Description
DSPPA 6.5" Frameless Ceiling Speaker (Ohm) - DSP6011L

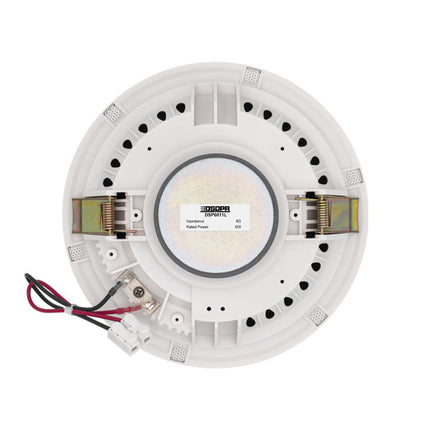

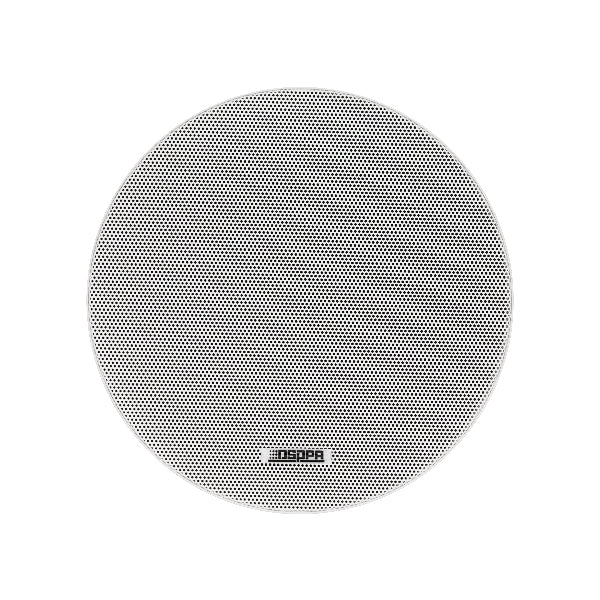

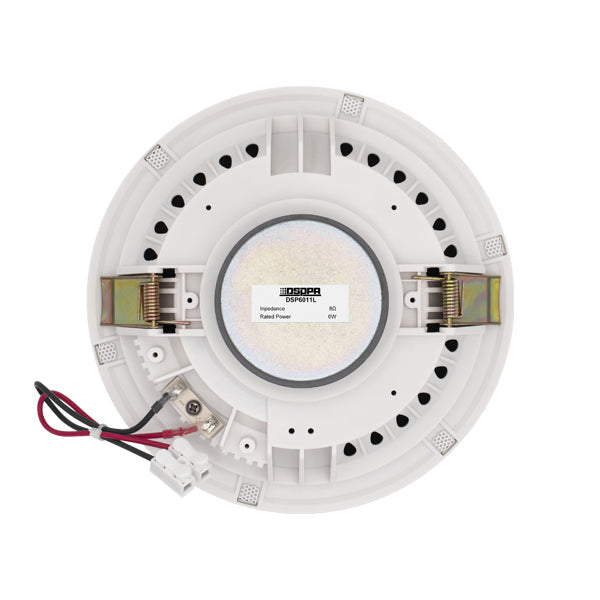

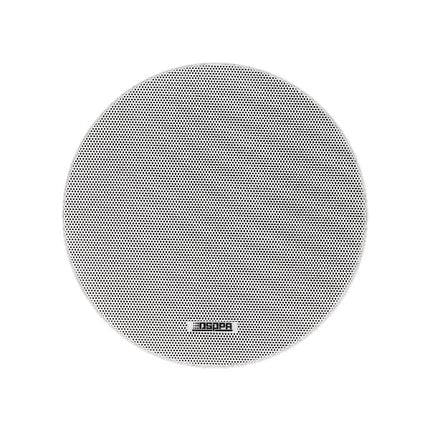

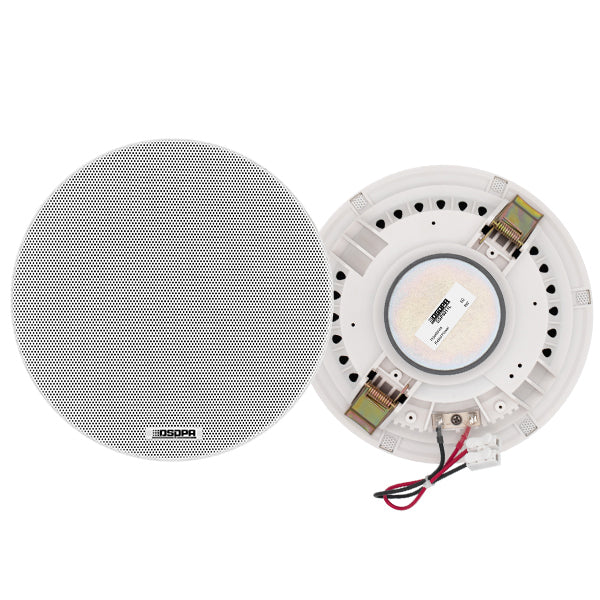

DSPPA DSP6011L 6.5" Frameless Ceiling Speaker
The DSP6011L ceiling speaker adopts a fashionable, thin-edge, large-flat-cylinder design with a carbon aluminum alloy mesh and RAL white coating, allowing it to integrate perfectly with any indoor space.
It features a 6.5-inch full-range speaker with a sealed magnetic circuit processed with a special engineering plastic process, and a drum paper made through the grinding and hot pressing process of algae-extracted organisms, for the purpose of reproducing sound and music with superior power.
This device complies with IEC 268-5 standard for Power Handling Capacity (PHC), capable of continuous operation for 100 hours and performing a Simulated Acoustic Feedback Exposure (SAFE) test. It can also withstand twice the rated power for a short period, ensuring high reliability of the speaker in harsh conditions, extending its lifespan, and significantly reducing the likelihood of failures or performance degradation.
Features
◆ Superior power reproduction of sound and music.
◆ Modern design with thin edge, flat surface, and large cylinder.
◆ Easy to install, suitable for ceilings of various thicknesses.
◆ Highly flame retardant in terms of UV level.
◆ Suitable for hotels, shopping malls, department stores, schools, and entertainment and recreation facilities.
◆ 6.5-inch frameless ceiling speaker
◆ 8 Ohm, Rated Power: 6W
◆ 6W rated power, 6.5-inch speaker unit,
◆ Wide frequency response 90-20kHz, maximum SPL 103dB ± 2dB
◆ Sensitivity 95dB ± 2dB, total harmonic distortion < 1.5%
◆ Frameless aluminum mesh, never rusts
◆ Three speaker line terminals, supporting different power levels
◆ 20 magnetic steel cores, ensuring high sound quality
◆ High-quality plastic mold, durable, stable, and colorfast
◆ Hanging edge damping system, continuous operation for 100 hours
Specifications of DSPPA DSP6011L 6.5" Frameless Ceiling Speaker:
DSPPA DSP6011L
6.5" Wall Speaker - 6W
━━━━━━━━━━━━━━━━━━
Speaker Specifications
Speaker unit: 6.5" x 1
Rated power: 6W
Impedance: 8 ohms
━━━━━━━━━━━━━━━━━━
Audio Performance
Effective frequency range: 110Hz - 15kHz
Characteristic sensitivity (1W / 1m): 90 dB
Maximum SPL (1m): 97 dB
━━━━━━━━━━━━━━━━━━
Physical Specifications
External dimensions: 190.5 x 70 mm
Weight: 0.60 kg
━━━━━━━━━━━━━━━━━━
Environmental Conditions
Storage temperature: -25°C to +55°C
