DSPPA 20W Compact Coaxial Satellite Speaker with Power Tap (Volts & Ohms) | DSP129
This wall mount speaker is a commercial sound system designed for various applications such as offices, hotels, bars, and shopping malls. It features a 20W output power at 70/100V and 16 Ohms, with power tap capability. It utilizes a 4-inch coaxial driver unit, delivering exceptional sound quality in a compact and elegant design, and allows for quick installation with brackets.
Features
◆ Wall-mounted speaker for commercial sound system.
◆ Rated output power 20W at 70V/100V & 16 Ohm.
◆ Power tap is optional according to user's need.

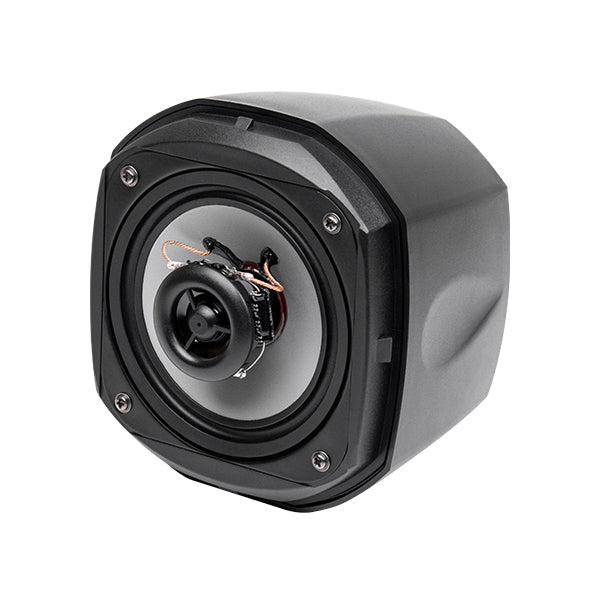

◆ 4-inch coaxial driver unit.

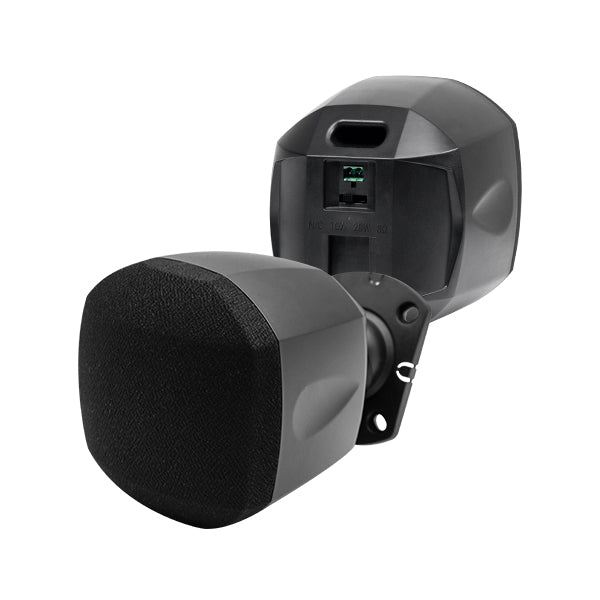

◆ Quick installation with brackets.
◆ Compact and elegant appearance with exceptional sound quality.
◆ Ideal for PA systems in offices, hotels, bars, and shopping malls.
◆ 20W mini-sized speaker with power transformer
◆ Rated output 10W at 8ohm
◆ 1×2.75 inch full range driver
DSPPA 20W Mini Satellite Speaker with Power Tap (Volts & Ohms) - DSP129 Specifications:
4-inch 20W Wall Speaker (70V / 100V)
━━━━━━━━━━━━━━━━━━
Speaker Specifications
Speaker: 4-inch paper cone
Nominal Power: 20W
Nominal Impedance: 16 Ohms
Casing Material: ABS plastic
━━━━━━━━━━━━━━━━━━
Acoustic Performance
Frequency Response (±3dB): 120 Hz - 20 kHz
Sensitivity (1W/1M): 83 ±2 dB
Max SPL (at 1M): 97 ±2 dB
━━━━━━━━━━━━━━━━━━

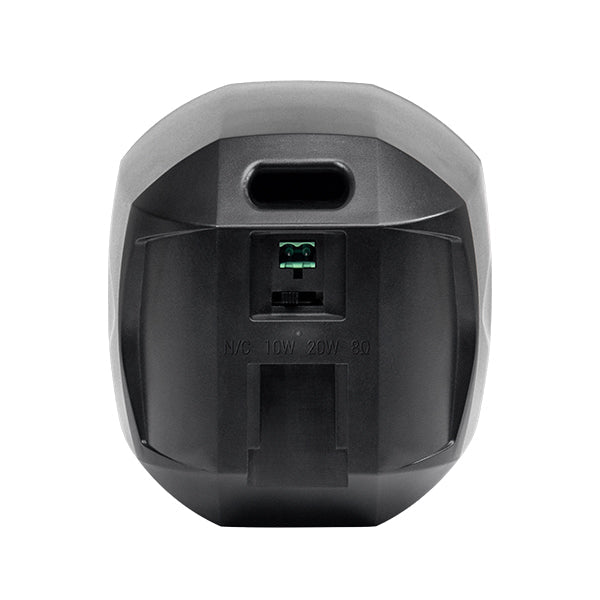

Power Transformer & Taps
Line Voltage: 70V / 100V
70V: 5W / 10W
100V: 10W / 20W
━━━━━━━━━━━━━━━━━━
Installation
Mounting Method: Bracket / Screw
━━━━━━━━━━━━━━━━━━
Physical Specifications
Product Dimensions: 148 × 127 × 138 mm
Net Weight: 1.23 kg
