Description

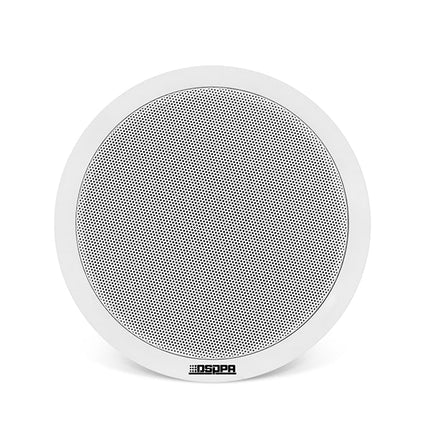

DSPPA 6W 6.5 Inch Round Ceiling Speaker - DSP124L
DSPPA DSP124L Round 6.5 Ceiling Type

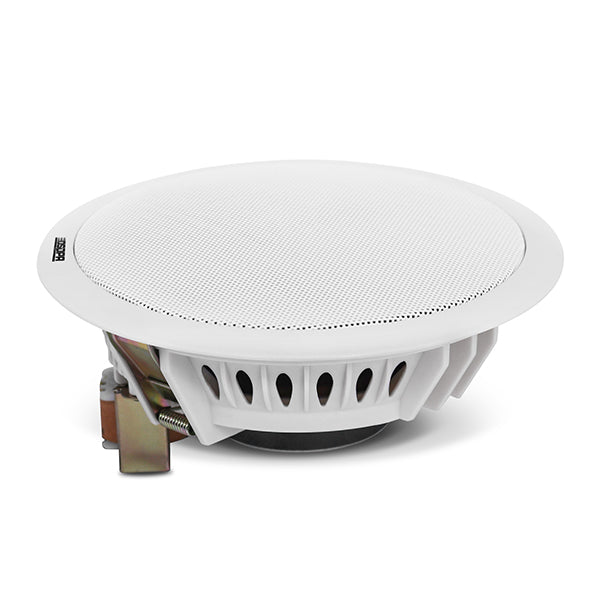

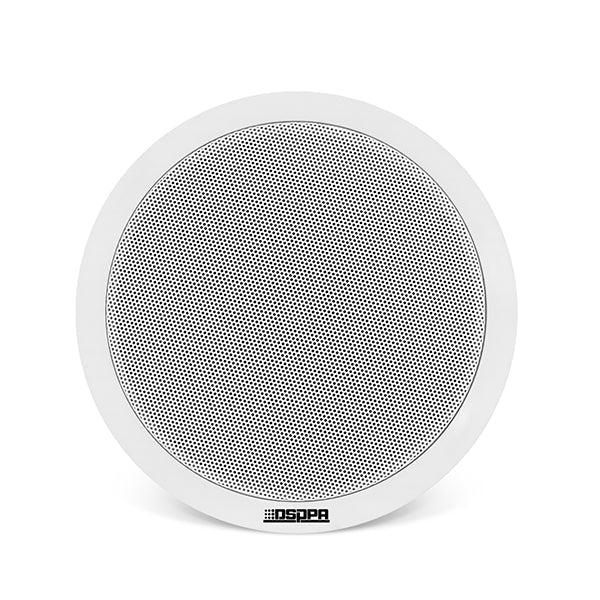

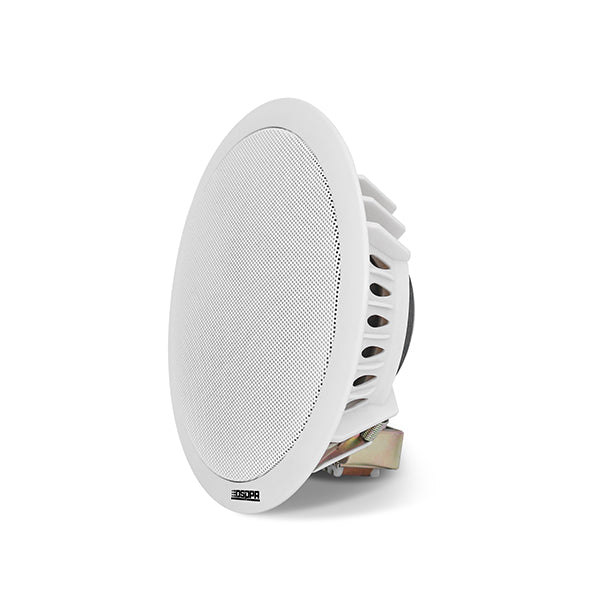

The DSP124L ceiling speaker is a 6.5-inch round speaker made of an aluminum alloy carbon mesh. It is an ideal choice for those looking for a ceiling speaker with superior sound quality. This product is widely used in schools, offices, cafes, hospitals, hotels, and shopping centers.
Features
● Modern design with rounded edges and an aluminum alloy carbon mesh with a RAL white coating to perfectly match any interior.
● 6.5-inch unit with a magnetic circuit encapsulated in a special engineered plastic manufacturing process.
● Meets IEC 268-5 power handling capacity (PHC) standard.
● 100 hours of continuous operation and a Simulated Acoustic Feedback Exposure (SAFE) test procedure.
● Withstands twice the rated power for a short period to ensure high reliability under harsh conditions, extend its operational life, and reduce the likelihood of failure or degradation.
● Strong clamp design, durable and reliable, easy to install.
DSPPA 6W 6.5 Inch Round Ceiling Speaker | DSP124L Specifications:
6.5-inch Ceiling Speaker - 6W (70V / 100V)
━━━━━━━━━━━━━━━━━━
Speaker Specifications
Drive Unit: 6.5 inch x 1
Rated Power (RMS): 6W
Max Power: 10W
Impedance: 8 ohms
Rated Input Voltage: 70V / 100V
━━━━━━━━━━━━━━━━━━
Acoustic Performance
Frequency Response: 90 Hz - 20 KHz
Sensitivity (1W / 1m): 90 ±2 dB
Max Sound Pressure Level (at 1 meter): 92 ±2 dB
━━━━━━━━━━━━━━━━━━
Installation and Dimensions
Mounting Cutout Size: Ø170 mm
Dimensions: 105 x 190 mm
Weight: 0.66 kg
