Description
DSPPA 10W Wall Mount Speaker | DSP117

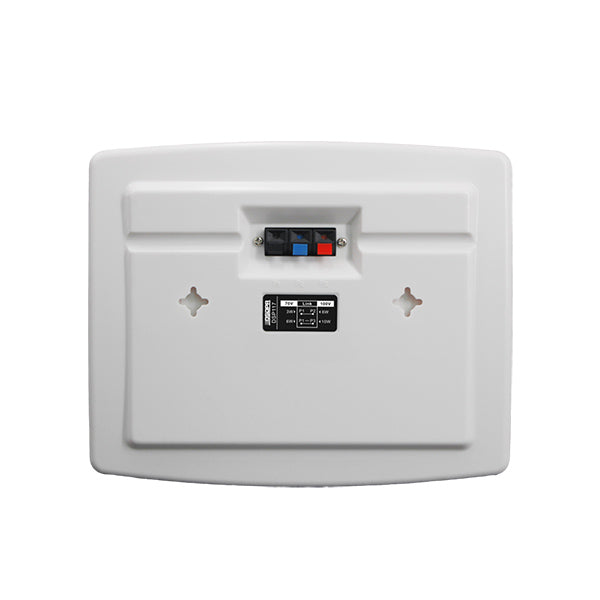

DSPPA DSP117 10W Wall Mount Speaker
The DSP117 speaker is a wall-mounted speaker with a built-in 70V/100V transformer. The signal is transmitted with high voltage and low current, allowing for longer transmission distances and parallel connection of multiple speakers. Made of high-quality, eco-friendly ABS material, it is safe and durable; it features high sensitivity of 90dB ± 2dB, a long lifespan, and clear, crisp sound.
It is widely used in schools, gyms, squares, parks, parking lots, train stations, airports, villas, supermarkets, and shopping centers. It is an ideal choice for public broadcasting.
Features
◆ Rated power: 6-10W, built-in 100V/70V transformer
◆ 4.5-inch full-range speaker made of 14-core KSV material
◆ Pure copper E-type wire transformer for high fidelity
◆ Frequency response: 180Hz-15kHz; max SPL: 100±2dB; sensitivity: 90±2dB
◆ Unique and elegant design for homes
◆ Eco-friendly ABS material, safe and durable
◆ 10W Wall Mount Speaker
◆ Rated power: 6-10W, built-in 100V/70V transformer
◆ 4.5-inch full-range speaker made of 14-core KSV material
◆ Pure copper E-type wire transformer for high fidelity
◆ Frequency response: 180Hz-15kHz; max SPL: 100±2dB; sensitivity: 90±2dB
◆ Unique and elegant design for homes
◆ Eco-friendly ABS material, safe and durable

DSPPA DSP117 10W Wall Mount Speaker Specifications:
Wall Mount Speaker – 10W (70V / 100V)
━━━━━━━━━━━━━━━━━━
Speaker Specifications
Speaker Unit: 4.5 inches x 1
Rated Power (RMS): 10W
Operating Voltage: 70V / 100V
━━━━━━━━━━━━━━━━━━
Audio Performance
Frequency Response: 180Hz - 15kHz
Sensitivity (1W / 1m): 90 ±2 dB
Max SPL (at 1m): 100 ±2 dB
━━━━━━━━━━━━━━━━━━
Physical Specifications
Dimensions (H × W × D): 188 × 228 × 101 mm
Weight: 0.8 kg
