Description

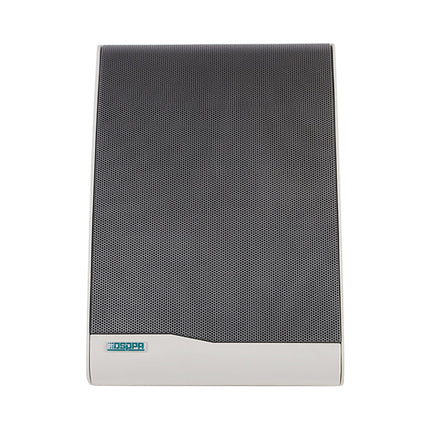

DSPPA 10W Wall Mount Speaker - DSP106II
DSPPA DSP106II 10W Wall Mount Speaker
The DSP106II is a wall mount speaker with a 70V/100V transformer built-in. The 70V/100V transmission is realized in a high-voltage, low-current mode, which makes longer distance transmission and parallel connection of multiple loudspeakers possible.
The Max SPL is 100±2dB. The effective frequency range is 160Hz to 18kHz. It has excellent sound isolation, a high sensitivity of 92±2dB, a long lifespan, and clear sound. It is equipped with hanging holes for easy installation.
It is an ideal choice for industrial and commercial applications in hotels, schools, offices, and factories where background music and paging are needed.
Features
◆ Multiple terminals, suitable for different occasions.

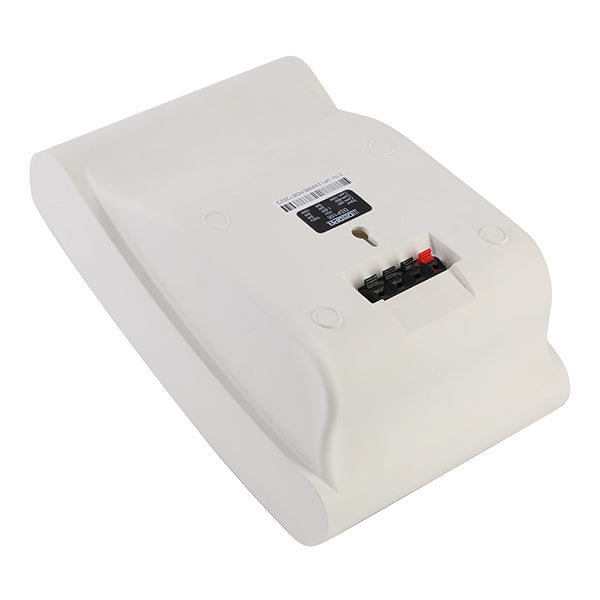

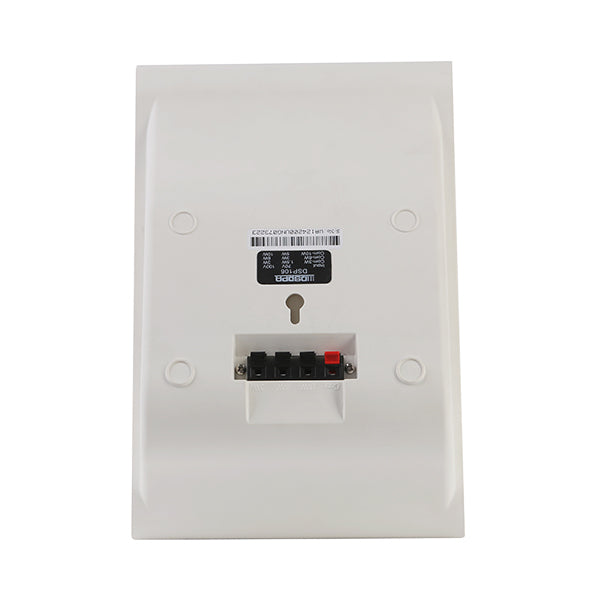

◆ Equipped with hanging holes for easy installation.
◆ High-quality engineering injection plastic, durable, no deformation, no fading
◆ Adopting damping treatment for the speaker, with a long service life, high sensitivity, and clear and bright sound.
◆ 10W wall mount speaker.
◆ Rated Power: 6-10W, built-in 100V/70V transformer.
◆ 4.5-inch full-frequency speaker with 14-core KSV material.
◆ Pure copper wire E-type transformer ensures high fidelity.
◆ Frequency response: 180Hz - 15kHz; Max SPL: 100±2dB; Sensitivity: 90±2dB.

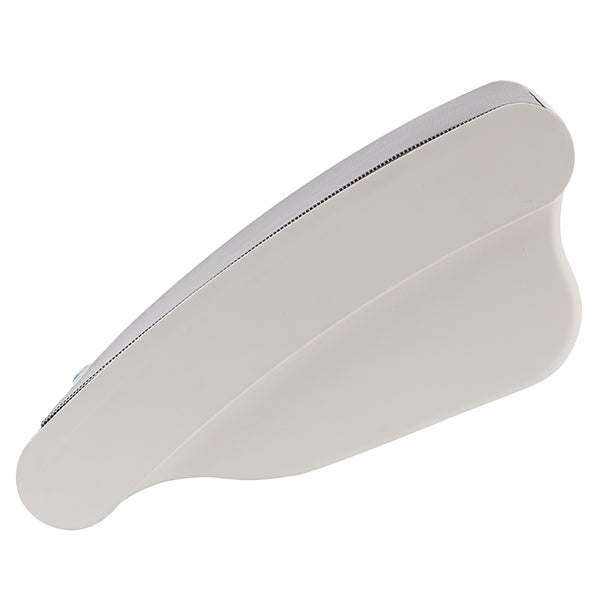

◆ Unique housing designs with streamlined appearance.
◆ Environmentally friendly ABS material, safe and durable.
DSPPA DSP106II 10W Wall Mount Speaker Specifications:
Wall Mount Speaker – 10W (70V / 100V)
━━━━━━━━━━━━━━━━━━
Loudspeaker Configuration
Loudspeaker unit:
6.5″ woofer × 1
2″ tweeter × 1
Rated Power: 10W
Line Voltage: 70V / 100V
━━━━━━━━━━━━━━━━━━
Acoustic Performance
Effective Frequency Range: 160Hz – 18kHz
Sensitivity (1W / 1m): 92 ±2dB
Max SPL (1m): 100 ±2dB
━━━━━━━━━━━━━━━━━━
Physical Specification
Weight: 1.75kg
