Description

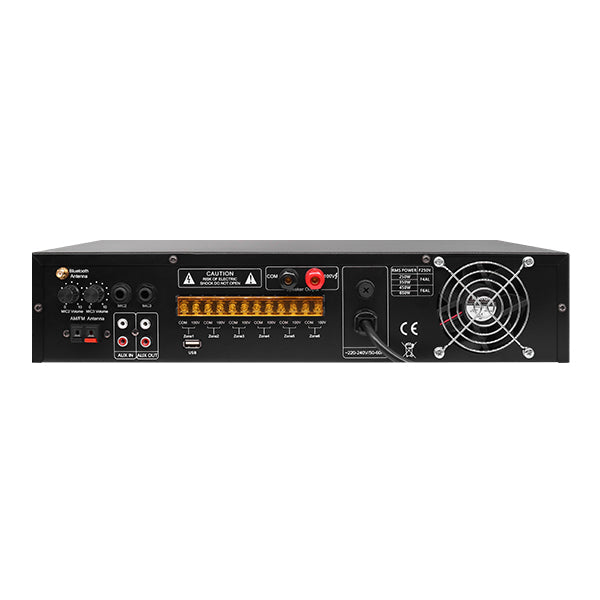

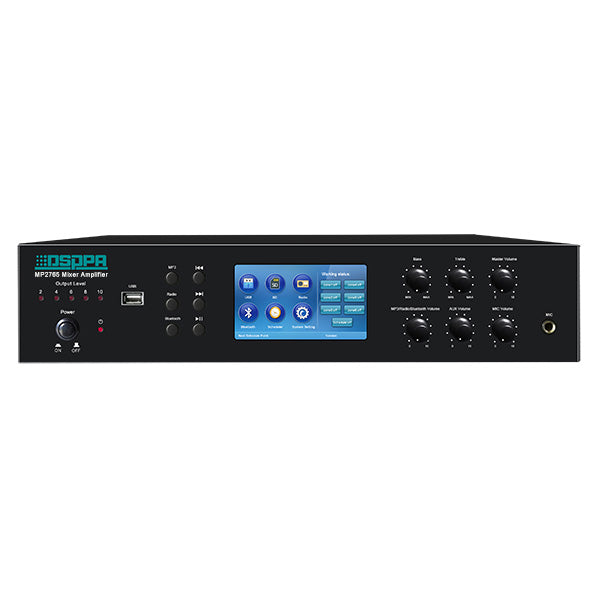

DSPPA 650W 6-Zone Mixer Amplifier | MP2765

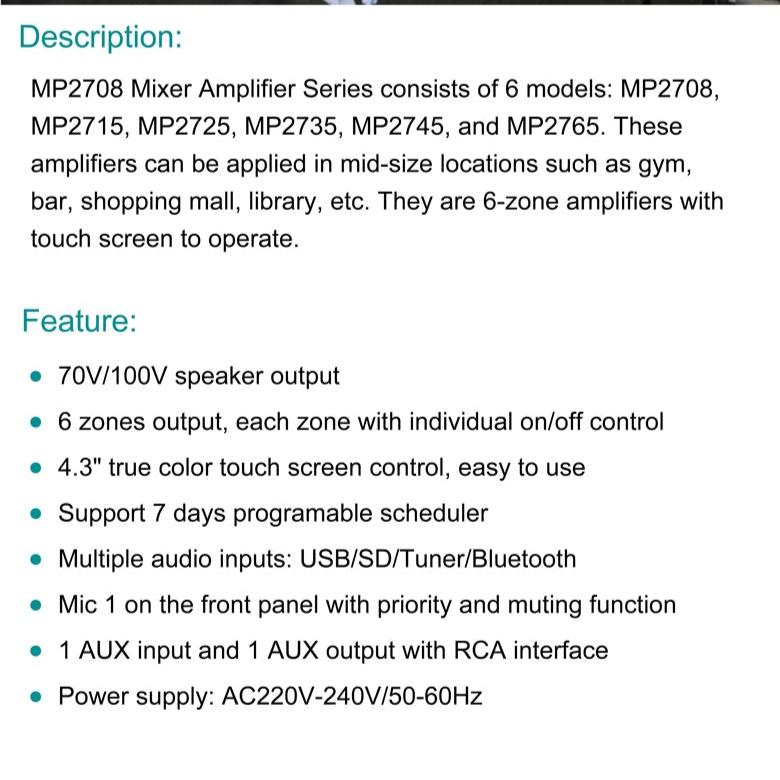

The MP2765 integrated amplifier is a six-zone amplifier equipped with USB flash drive and SD card audio playback functions, as well as a tuner, radio, Bluetooth, and timer. It features various functions, including music file playback, radio, time scheduling, and more. It has an easy-to-use touchscreen and a simple graphic interface. The device meets user needs and can be widely used.
Features
◆ Rated Power: 650W, Output Power: 100V
◆ Supports USB/SD/MP3/AM & FM/Bluetooth/Scheduler player, built-in Bluetooth receiver module.

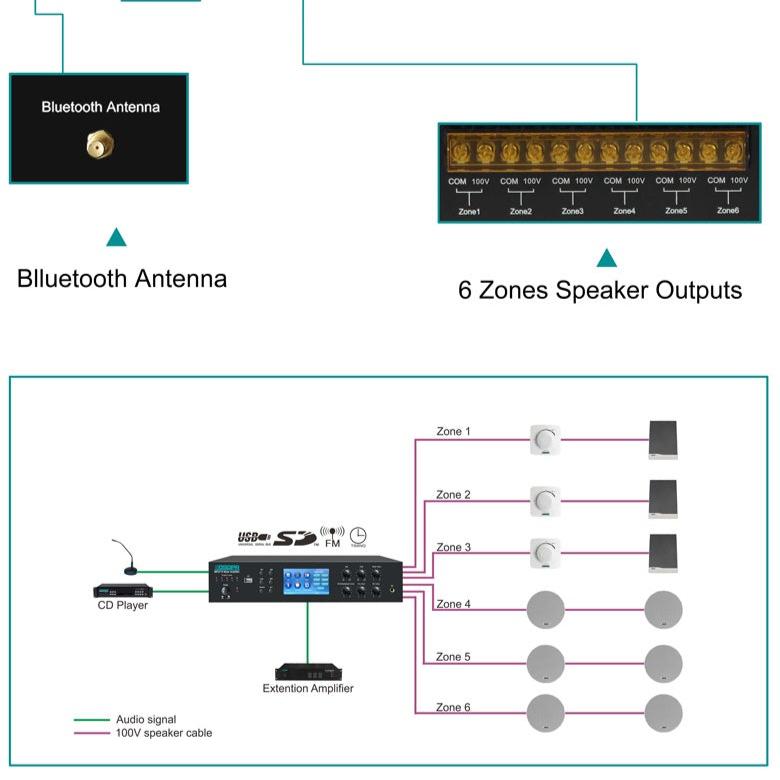

◆ 6-zone output with separate switch control
◆ 4.3-inch TFT capacitive touch screen.
◆ 1 AUX, 1 Mic input, 1 AUX output.
◆ Built-in 4GB memory for MP3 files.
◆ Built-in radio; can be searched manually/automatically and can store 40 radio channels.
◆ Separate volume control for MP3/FM/Bluetooth, AUX, and Mic inputs
DSPPA 650W 6-Zone Mixer Amplifier | MP2765 Specifications:
General
Type: 100V PA Mixing Amplifier
Output Method: Constant Voltage 100V
Power Supply: AC 220-240V / 50-60Hz
Protection: AC Fuse, DC Output Protection, Overload Protection
Mute Function: Mic input priority with attenuation from 0 to -30 dB
━━━━━━━━━━━━━━━━━━
Power and Consumption
Rated Power: 650W
Power Consumption: 800W
━━━━━━━━━━━━━━━━━━
Audio Specifications
Harmonic Distortion: <0.5% (1kHz, 1/3 rated power)
Line Frequency Response: 50Hz - 18kHz (±3dB)
Microphone Frequency Response: 40Hz - 16kHz (±3dB)
Signal-to-Noise Ratio:
Microphone: 70dB
Line: 85dB
Tone Control:
Bass Level: ±10dB (100Hz)
Treble: ±10dB (10kHz)
━━━━━━━━━━━━━━━━━━
Inputs / Outputs
Microphone Input: 600Ω - 10mV (±10%)
Line Input: 10KΩ - 300mV (±10%), Unbalanced
AUX Output: 100Ω – 1V (0dBV)
━━━━━━━━━━━━━━━━━━
Physical Specifications
Dimensions: 430 × 360 × 88 mm
