20W DSPPA Waterproof Outdoor Speaker | DSP643

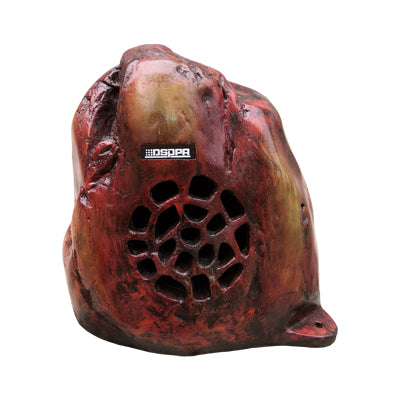

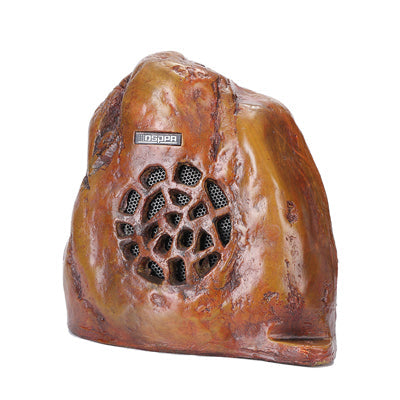

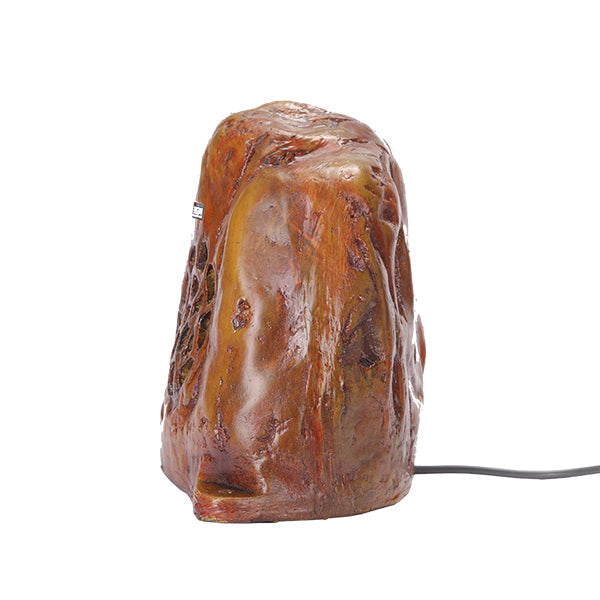

20W Waterproof Rock Speaker, Landscape Suitable, with DSP643
The DSP643 speaker is designed for use in gardens and outdoor areas. It features a built-in 70V/100V transformer. The 70V/100V transformer technology reduces line losses over longer distances and allows easy parallel connection of multiple loudspeakers.
This high-quality resin enclosure features a rock design, is weatherproof, and has a durable finish that resists damage. It is also easy to install and secure in outdoor environments.
It is an ideal choice for industrial and commercial outdoor applications, such as train stations, shopping malls, parking lots, and factories where background music and paging systems are required.
Features
◆ IP65 waterproof level
◆ Max SPL: 100±2dB
◆ 6.5"x1 full-range beater
◆ High quality resin material
◆ High sensitivity: 87±2dB
◆ Damage-resistant, durable coating
◆ Built-in 100V/70V transformer
◆ Wide frequency response range: 100Hz-15.5kHz
◆ 10-20W power taps at 100V
◆ Garden speaker
Specifications of the 20W DSP643 Waterproof Rock Speaker:
General
Type: Waterproof rock speaker, suitable for landscaping
Weatherproof outdoor design with heavy-duty resin enclosure (IP65) suitable for gardens, parks, patios, and outdoor sound systems.
━━━━━━━━━━━━━━━━━━
Power and Performance
Rated Power: 20W
Max Power: 40W
Built-in 70V / 100V transformer (constant voltage line)
Power Taps: 10W - 20W at 100V
━━━━━━━━━━━━━━━━━━
Audio Specifications
Driver Unit: 6.5" x 1 full-range speaker
Sensitivity (1W / 1m): 87 ±2dB
Max SPL (at 1m): 100 ±2dB
Frequency Response: 100Hz - 15.5kHz
━━━━━━━━━━━━━━━━━━
Electrical and Connectivity
Line Voltage Options: 70V / 100V constant voltage system
Transformers reduce line power loss and allow easy parallel connection of multiple speakers.
━━━━━━━━━━━━━━━━━━
Construction and Installation
Waterproof (IP65) outdoor enclosure with a durable, damage-resistant finish.
Rock-shaped design suitable for landscaping and inconspicuous placement in outdoor areas.
━━━━━━━━━━━━━━━━━━
Physical Specifications
Dimensions (L x W x H): Approximately 380 x 250 x 320 mm
Weight: Approximately 5.0 kg
