Description

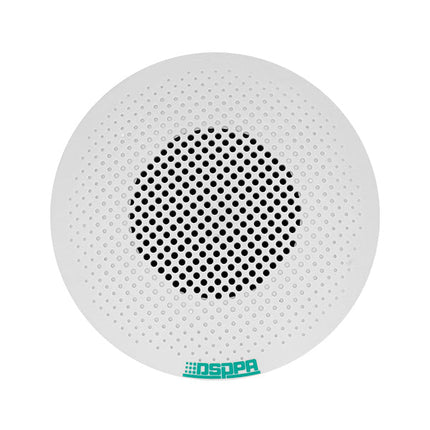

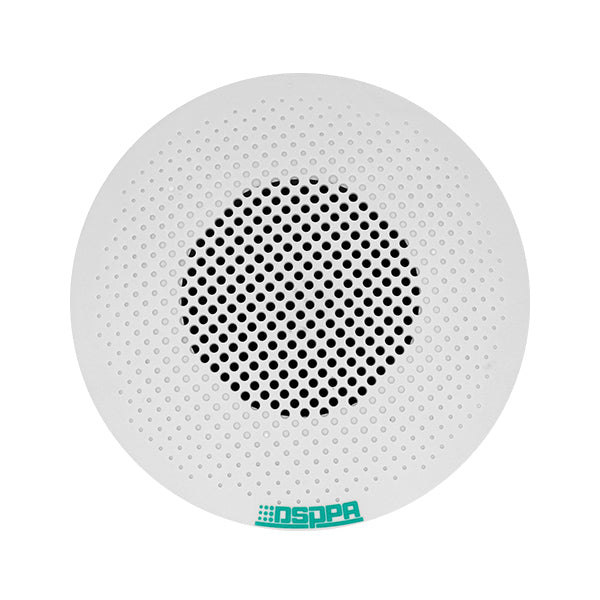

DSPPA 10W Ceiling Speaker with 3-inch Neodymium Magnet | DSP531II

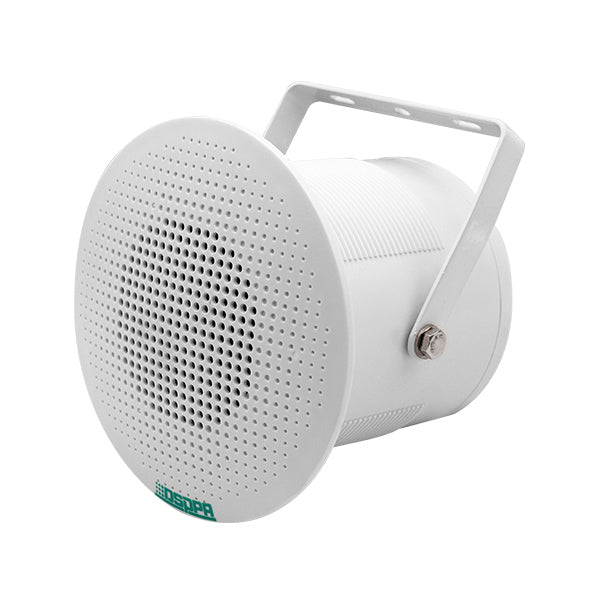

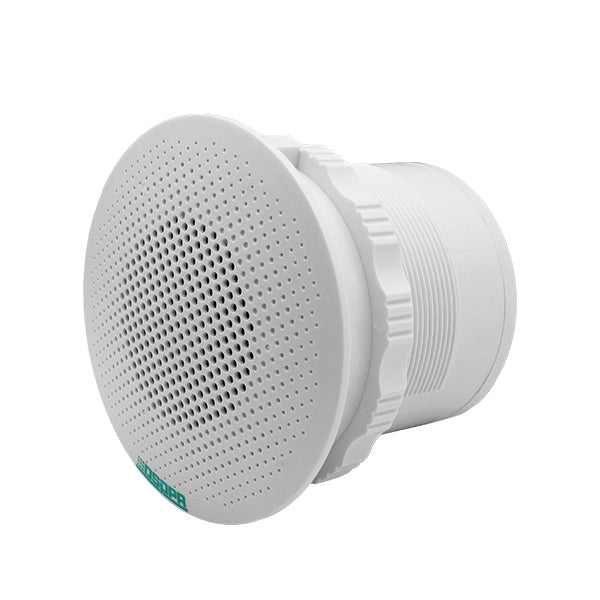

The DSP531ll is a sleek, compact ceiling speaker that can be modified to be waterproof. Three installation methods are available: screw ring, spring clip, and hanging bracket, suitable for DSP531IA, DSP531l1B, and DSP531llC speakers, respectively.
Features
◆ Application: Public address system and background music playback
◆ High-quality pure sound
◆ Use of high-quality engineering plastic
◆ Unique cone technology, moisture-proof, high sensitivity
◆ Supports various installation methods (suspension, clamp, movable clip), easy to install
◆ Exquisite and durable design with a precise circular opening, able to integrate with any interior background
DSPPA 10W Ceiling Speaker with 3-inch Neodymium Magnet | DSP531II Specifications:
DSPPA DSP531II
Ceiling Speaker – 10W (70V / 100V Line)
━━━━━━━━━━━━━━━━━━
General
Type: Ceiling Speaker
Drive Unit: 3 inch × 1
━━━━━━━━━━━━━━━━━━
Power and Performance
Rated Power: 10W

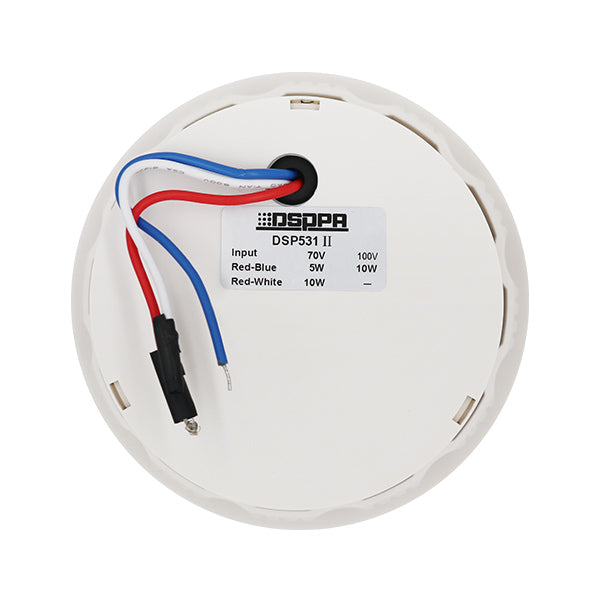

Rated Voltage:
70V (5W / 10W)
100V (10W)
Sensitivity (1W / 1m): 85 ±2dB
Max SPL (1m): 95 ±2dB
Frequency Response: 130Hz – 20kHz
━━━━━━━━━━━━━━━━━━
Installation and Construction
Ceiling-mounted design
Compact and lightweight design
━━━━━━━━━━━━━━━━━━
Physical Specifications
Dimensions (W × H): Φ136 × 115mm
Weight: 1.04kg
