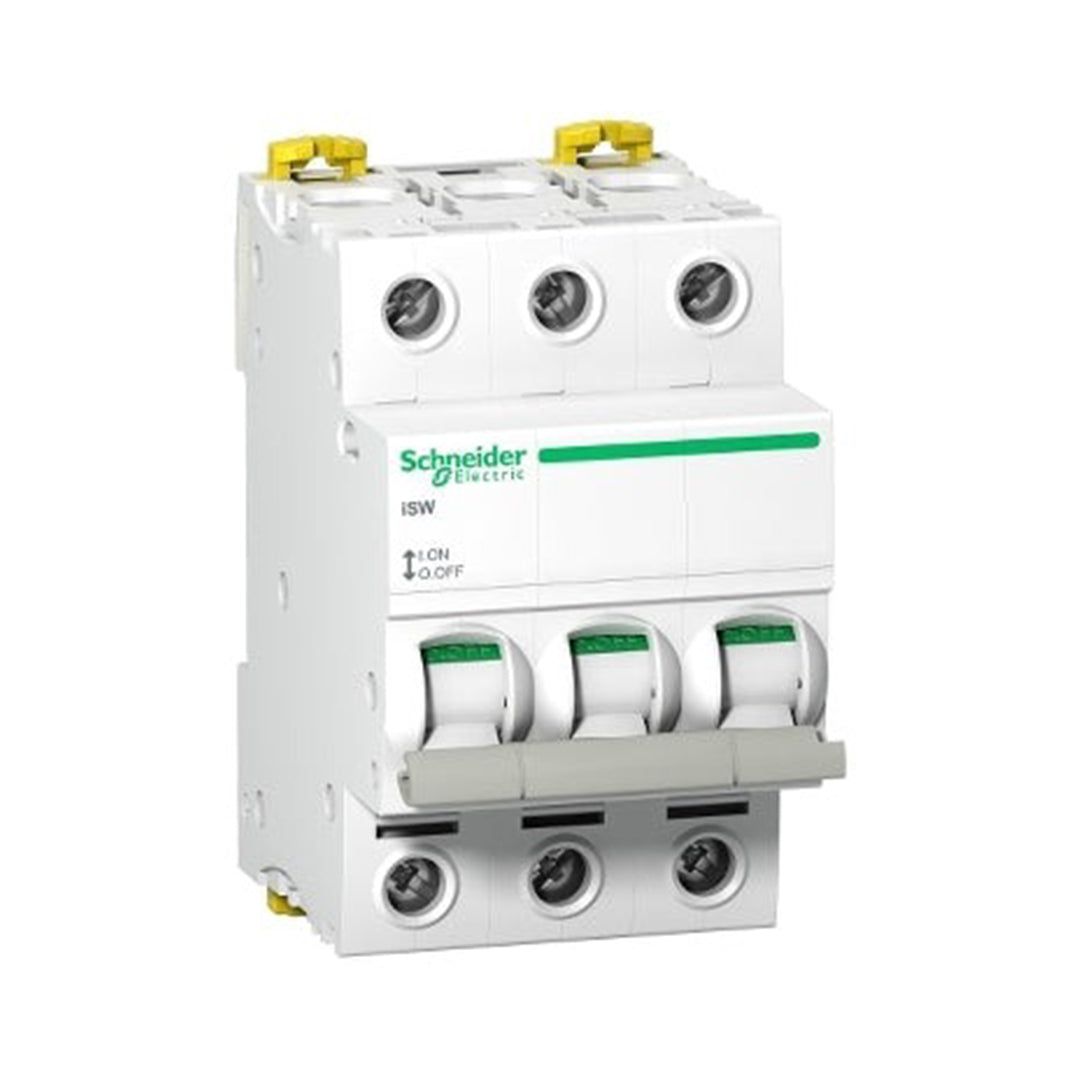

Schneider Acti9 iSW 63A 3P Switch Disconnector A9S65363 is an option among the switch disconnectors at Bashiti Stores, intended for manual control and supply disconnection for isolation purposes according to the circuit diagram. Refer to the details of this reference when comparing with similar devices, as functionality and rating are the basis for selecting the correct replacement.
Practical Benefits
- Provides a clear disconnection and isolation function within the panel layout.
- The isolation point arrangement assists in planning maintenance and handling system components.
- Comparison should be based on current, number of poles, and voltage rather than just outward appearance.
Technical Specifications for this Model
| Brand |
Schneider Electric |
| Series |
Acti9 iSW |
| Model Reference |
A9S65363 |
| Rated Current |
63 A |
| Number of Poles |
3P |
| Stated Operational Voltage |
415VAC |
| Dimensions: W × H × D |
54 × 85 × 73 mm |
| Mounting |
DIN Rail |
Who Needs This Product?
Installation and maintenance technicians who require a disconnection and isolation point within an electrical panel. Its selection is coordinated with fault-protection circuit breakers, the circuit voltage, required current, and the number of poles.
Installation and Verification Procedure — For Professional Technicians
The following steps outline the general work sequence. Refer to the manufacturer's diagram for reference A9S65363 to determine terminals and tightening values. Do not perform work on a live circuit.
- The technician disconnects all power sources, secures them against reactivation, and verifies the absence of voltage with a suitable tool.
- Matches the device reference, number of poles, current, and voltage with the panel diagram, and reviews conductor cross-section and protection coordination.
- Mounts the unit on the rail or its designated position after ensuring compatibility, and identifies the supply and output from the manufacturer's diagram for this reference.
- Executes connections using the torque settings, stripping length, and wire cross-sections specified in the model manual; do not transfer these values from a similar device.
- Checks the integrity of the mounting and connections, closes the covers, and performs the required functional and safety tests before handing over the circuit.
Frequently Asked Questions Before Purchasing
Is the switch disconnector an automatic circuit breaker?
No. This product functions for isolation and control, not for automatic disconnection of overloads or short circuits. Fault protection is provided by a separate, appropriate device.
Is turning the switch to OFF sufficient for starting maintenance?
All power sources must be isolated, the absence of voltage must be verified, and lockout/tagout procedures must be followed according to site protocols; the position of the handle alone is not a substitute for verification.
How do I select the number of poles?
This is determined by the supply diagram and the requirements for disconnecting conductors, and must be reviewed by the technician in charge of the panel.
Schneider at Bashiti Stores — Electrical Department
Choose switch disconnectors from the Bashiti electrical department according to the specifications required for your project in Jordan. The series name and reference A9S65363 help you identify the part accurately when inquiring or requesting a replacement. At Bashiti Stores, we provide essential selection data for you to compare similar products, ensuring your order is prepared for the technician or electrical contractor based on functionality and compatibility, rather than just price or appearance.
