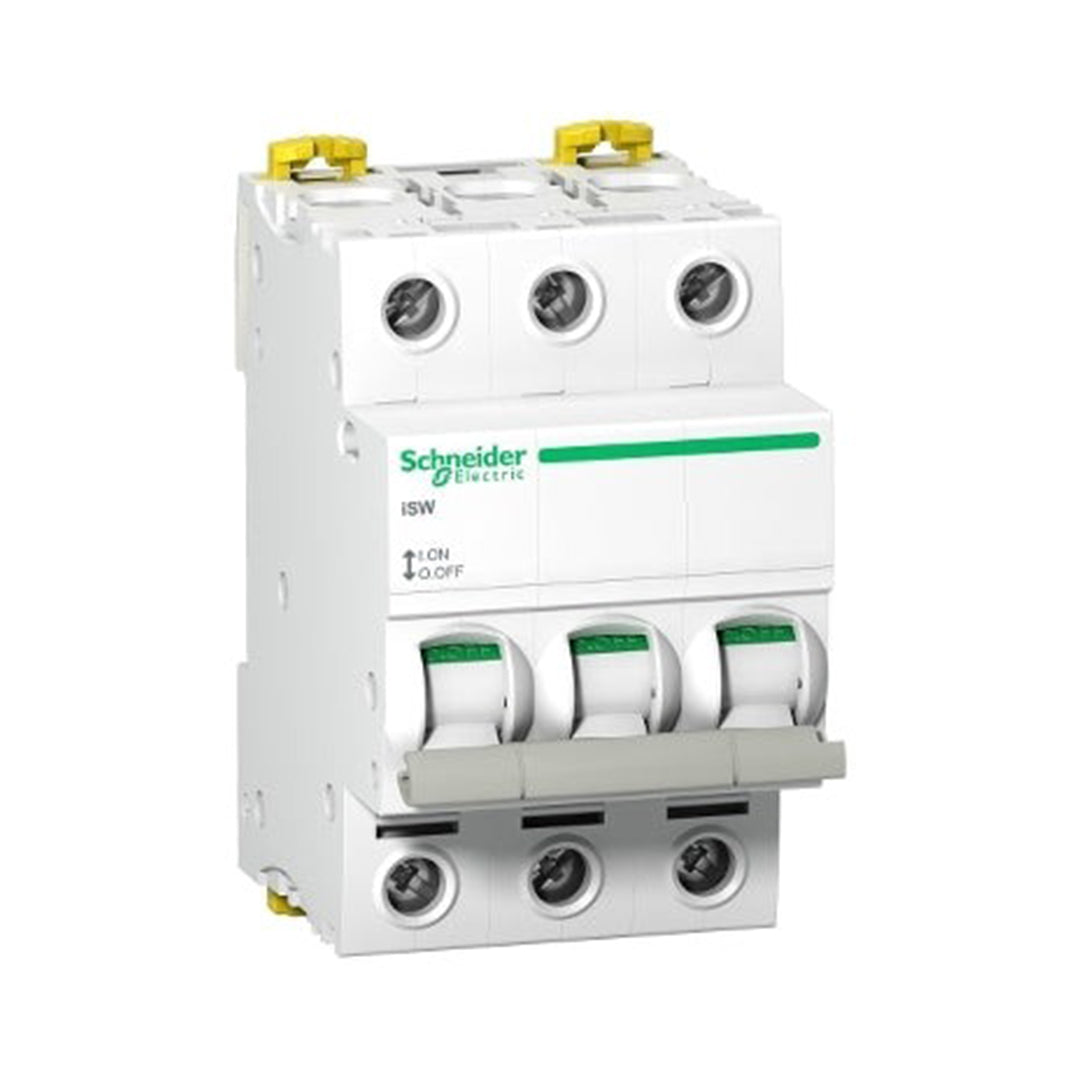

Schneider Acti9 iSW 40A 3P Switch Disconnector A9S65340 is an option among the switch disconnectors at Bashiti Stores, intended for manual control and supply disconnection for isolation purposes according to the circuit diagram. Check the details of this reference when comparing with similar devices, as the function and rating are the basis for selecting the correct replacement.
Practical Benefits
- Provides clear disconnection and isolation functionality within the panel organization.
- The arrangement of the isolation point assists in planning maintenance and handling system parts.
- Comparison is made based on current, number of poles, and voltage rather than just outward appearance.
Technical Specifications of This Model
| Brand |
Schneider Electric |
| Series |
Acti9 iSW |
| Model Reference |
A9S65340 |
| Rated Current |
40 A |
| Number of Poles |
3P |
| Stated Operating Voltage |
415VAC |
| Dimensions: W x H x D |
54 x 85 x 73 mm |
| Stated Mounting |
DIN Rail |
Who needs this product?
Installation and maintenance technicians who require a disconnection and isolation point within an electrical panel. Its selection is coordinated with circuit breakers providing fault protection, as well as the circuit voltage, required current, and number of poles.
Installation and Verification Method — For Professional Technicians
The following steps outline the general workflow; refer to the manufacturer's diagram for reference A9S65340 to determine terminals and tightening values. Do not perform work on a live circuit.
- The technician disconnects all power sources and secures them against re-energization, then verifies the absence of voltage with a suitable tool.
- Matches the device reference, number of poles, current, and voltage with the panel diagram, and reviews conductor cross-sections and protection coordination.
- Mounts the unit on the rail or its designated position after ensuring compatibility, and identifies the supply and output from the manufacturer's diagram for this reference.
- Executes the connections using the tightening torque, stripping length, and wire gauges specified in the model manual; do not copy these values from a similar device.
- Inspects the tightness of the installation and connections, closes the covers, and performs the required functional and protection tests before handing over the circuit.
Frequently Asked Questions Before Buying
Is the switch disconnector an automatic protection circuit breaker?
No. This product's function is isolation and control, not automatic tripping for overload or short circuits. Fault protection is provided by a separate, appropriate device.
Is setting the switch to OFF enough to start maintenance?
All power sources must be isolated, the absence of voltage verified, and isolation locked out according to site procedures; the position of the lever alone is not a substitute for verification.
How do I choose the number of poles?
It is determined by the power supply diagram and conductor disconnection requirements, and must be reviewed by the technician responsible for the panel.
Schneider at Bashiti Stores — Electrical Department
Select switch disconnectors from the Bashiti electrical department according to the specifications required for your project in Jordan. The series name and reference A9S65340 help you identify the part accurately when inquiring or requesting a replacement. At Bashiti Stores, we present essential selection data for you to compare similar products, preparing your order for the technician or installation contractor based on function and compatibility, not just price or appearance.
