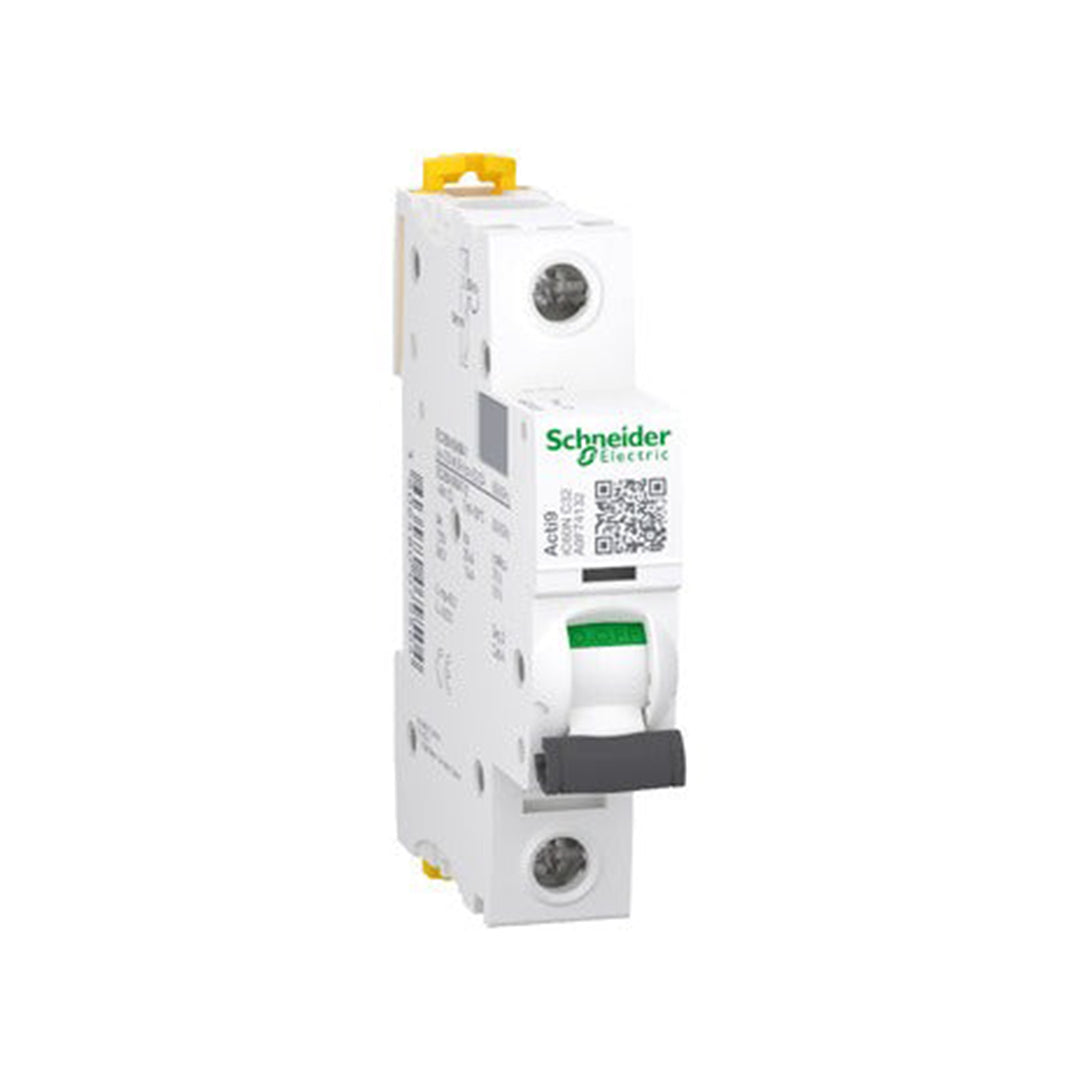

Schneider Acti9 iC60N MCB 32A 1P C-Curve 10kA A9F74132 is an option among MCB circuit breakers at Bashiti Stores, designed to protect circuits from overloads and short circuits. In this version, the rated current is 32A and the number of poles is 1P. These specifications distinguish this model from other alternatives in the same series; match them with your circuit requirements and do not select a breaker with a higher current rating just to increase the operating margin.
Practical Benefits
- Combines overload and short-circuit protection functions in a single modular device.
- Distributing protection across independent circuits helps organize the panel and identify the affected circuit when a fault occurs.
- Selecting the correct current, number of poles, and tripping curve provides the foundation for aligning the breaker with circuit requirements.
Technical Specifications for this Model
| Brand |
Schneider Electric |
| Series |
Acti9 iC60N |
| Model Reference |
A9F74132 |
| Rated Current |
32 A |
| Number of Poles |
1P |
| Tripping Curve |
C |
| Breaking Capacity per Source Title |
6kA per IEC/EN 60898-1 and 10kA per IEC/EN 60947-2; check voltage conditions in the manual |
| Dimensions: W × H × D |
18 × 85 × 78.5 mm |
| Mounting |
DIN Rail |
Who Needs This Product?
Electricians, installation contractors, and homeowners or shop owners setting up a new panel or replacing a breaker that matches an existing circuit. The selection depends on the circuit design, cable cross-section, and installation method, not just on the device type or the appearance of the breaker.
Installation and Verification Procedure — For Professional Technicians
The following steps outline the general work sequence. Use the manufacturer's diagram for reference A9F74132 to identify terminals and tightening values. Do not perform work on a live circuit.
- The technician disconnects all power sources, secures them against reactivation, and verifies the absence of voltage with an appropriate tool.
- Matches the device reference, number of poles, current, and voltage with the panel diagram, and checks conductor cross-sections and protection coordination.
- Mounts the unit on the DIN rail or its designated spot after confirming compatibility, and identifies the supply and load side from the manufacturer's diagram for this reference.
- Executes connections according to the tightening torque, stripping length, and wire gauges specified in the model manual; do not carry over these values from a similar device.
- Checks the security of the mounting and connections, then closes covers and performs required operation and protection tests before handing over the circuit.
Frequently Asked Questions Before Purchase
Does this breaker protect against earth leakage?
MCBs are designed for overload and short-circuit protection and do not replace earth leakage protection. Review the need for an RCCB or RCBO within the panel design.
Should I replace a breaker that trips constantly with one having higher amperage?
No. First, identify the cause of the tripping and check the load, cable, and connections. Increasing the amperage without study may leave the wires without appropriate protection.
What is the difference between Amperage and Breaking Capacity?
Amperage is the rated current of the breaker, while breaking capacity describes the level of short-circuit current it can interrupt under specified voltage and standard conditions. Do not substitute one for the other.
Schneider at Bashiti Stores — Electrical Department
Choose MCB circuit breakers from the Bashiti electrical department according to the specifications needed for your project in Jordan. The series name and reference A9F74132 help you identify the part accurately when inquiring or ordering a replacement. At Bashiti Stores, we provide essential selection data to compare similar products, and you should prepare your order for the technician or installation contractor based on function and compatibility, not just on price or appearance.
