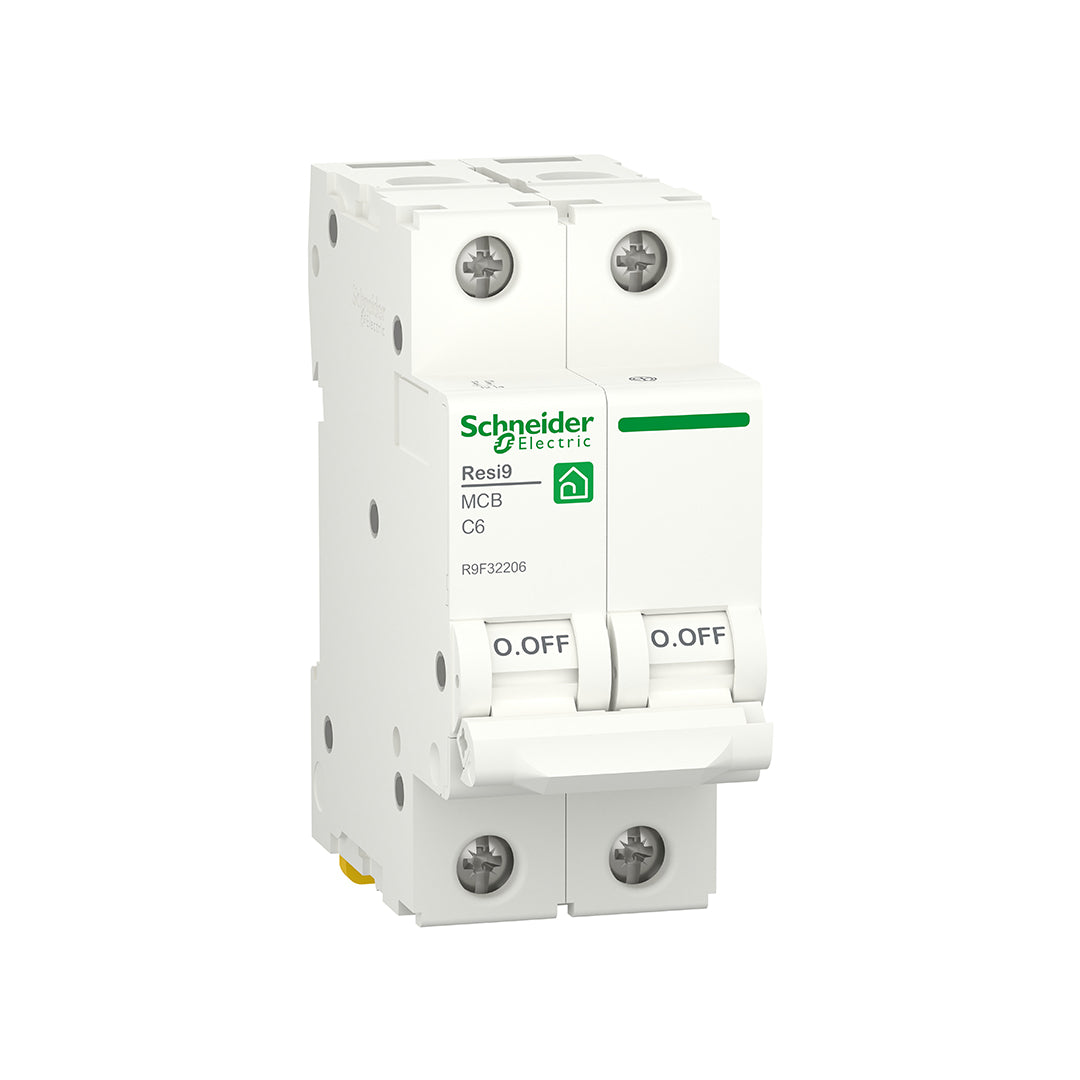

Schneider Resi9 6A 2P C-Curve 4.5kA MCB Circuit Breaker R9F32206 is an option among MCB circuit breakers at Bashiti Stores, designed to protect circuits from overloads and short circuits. In this version, the rated current is 6A and the number of poles is 2P. These specifications distinguish this model from other alternatives within the same series; match them with your circuit requirements and do not choose a higher amperage breaker merely to increase the operating margin.
Practical Benefits
- Combines overload and short-circuit protection functions in a single modular device.
- Distributing protection across independent circuits helps organize the panel and identify the affected circuit when a fault occurs.
- Selecting the correct current, number of poles, and tripping curve provides a foundation for matching the breaker with circuit requirements.
Technical Specifications for This Model
| Brand |
Schneider Electric |
| Series |
Resi9 |
| Model Reference |
R9F32206 |
| Rated Current |
6 A |
| Number of Poles |
2P |
| Tripping Curve |
C |
| Breaking Capacity per Source Title |
4.5kA |
| Stated Operating Voltage |
400VAC |
| Dimensions: W x H x D |
36 x 81 x 72 mm |
| Stated Mounting |
DIN rail |
Who Needs This Product?
Electricians, installation contractors, and homeowners or shop owners who are setting up a new panel or replacing a breaker that matches an existing circuit. Selection depends on the circuit design, cable cross-section, and method of installation, rather than just the device type or the appearance of the breaker.
Installation and Verification Method — For Licensed Electricians
The following steps outline general workflow. Use the manufacturer's diagram for reference R9F32206 to identify terminals and torque values. Do not perform work on a live circuit.
- The technician disconnects all power sources and secures them against accidental reconnection, then verifies the absence of voltage with a suitable tool.
- Matches the device reference, number of poles, current, and voltage with the panel diagram, and reviews conductor cross-sections and protection coordination.
- Mounts the unit on the rail or its designated position after verifying compatibility, and identifies the supply and output from the manufacturer's diagram for this reference.
- Performs connections using the torque, stripping length, and wire gauges specified in the model manual; do not carry over these values from a similar device.
- Checks the security of the mounting and connections, then closes the covers and performs required operational and protection tests before handing over the circuit.
Frequently Asked Questions Before Buying
Does this breaker protect against earth leakage?
An MCB is designed for overload and short circuits and does not replace earth leakage protection. Review the need for an RCCB or RCBO within the panel design.
Should I replace a breaker that keeps tripping with one of a higher amperage?
No. You must first identify the cause of the tripping and inspect the load, cable, and connections. Increasing the amperage without proper study may leave wires without appropriate protection.
What is the difference between Amperage and Breaking Capacity?
Amperage is the rated current of the breaker, while breaking capacity describes the level of short-circuit current it can safely disconnect under specified voltage and standard conditions. Neither figure should be substituted for the other.
Schneider at Bashiti Stores — Electrical Department
Choose MCB circuit breakers from the Bashiti electrical department according to the specifications required for your project in Jordan. The series name and reference R9F32206 help you identify the part accurately when inquiring or requesting a replacement. At Bashiti Stores, we provide key selection data so you can compare similar products and prepare your order for a technician or installation contractor based on function and compatibility, not just price or appearance.
