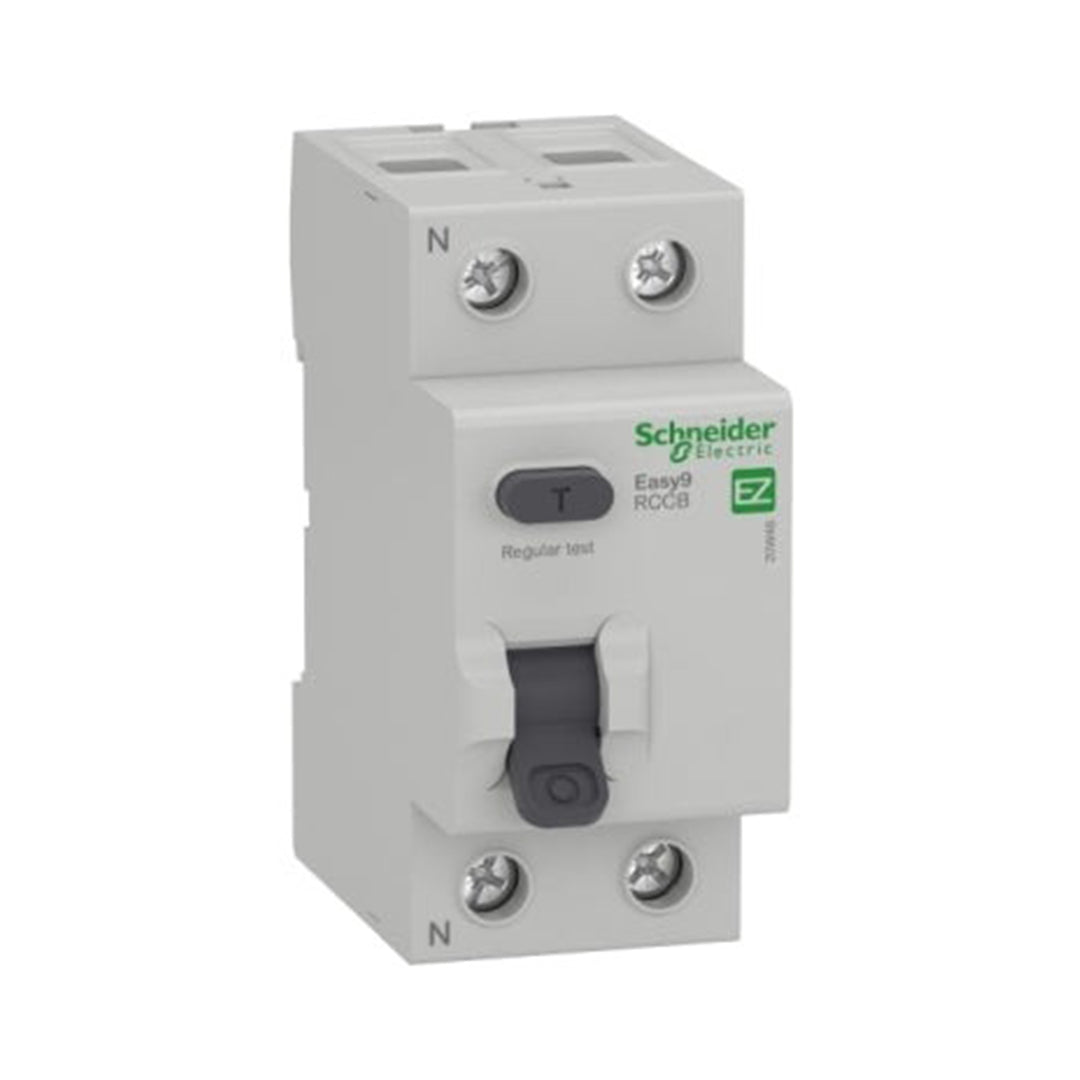

Schneider Easy9 25A 2P 30mA RCCB (EZ9R36225) is an option among the residual current circuit breakers at Bashiti Stores, designed to detect residual current and disconnect the circuit when the specified leakage sensitivity is exceeded. This model features a 25A rated current and a 30mA leakage sensitivity. When comparing, distinguish between the current flowing through the device and the leakage value that triggers disconnection, and verify the appropriate protection type for the loads.
Practical Benefits
- Adds earth leakage detection functionality to the protection system when selected and installed correctly.
- Specified rated current and leakage sensitivity allow for clear comparison of the device with panel requirements.
- Differentiating between protection type and current helps avoid confusion between wire protection and leakage protection.
Technical Specifications for this Model
| Brand |
Schneider Electric |
| Series |
Easy9 |
| Model Reference |
EZ9R36225 |
| Rated Current |
25 A |
| Number of Poles |
2P |
| Leakage Sensitivity |
30 mA |
| Leakage Detection Type |
AC |
| Rated Operational Voltage |
230VAC |
| Dimensions: W × H × D |
36 × 82 × 72 mm |
| Mounting |
DIN rail |
Who needs this product?
Distribution board installation and maintenance technicians, when earth leakage protection is required according to the protection plan. The type, sensitivity, current, and number of poles must be selected in coordination with the other circuit breakers and loads.
Installation and Verification — For the Qualified Technician
The following steps outline the general work sequence. Refer to the manufacturer's diagram for reference EZ9R36225 to identify terminals and torque values. Do not perform work on a live circuit.
- The technician disconnects all power sources and secures them against accidental restart, then verifies the absence of voltage with an appropriate tool.
- Matches the device reference, number of poles, current, and voltage with the panel diagram, and reviews conductor cross-section and protection coordination.
- Installs the unit on the rail or its designated position after ensuring compatibility, and identifies input/output based on the manufacturer's diagram for this reference.
- Executes connections using the torque, stripping length, and wire gauges specified in the model manual; do not transfer these values from a similar device.
- Checks the tightness of the installation and connections, then closes the covers and performs the required functional and protection tests before handing over the circuit.
-->
Common Questions Before Purchase
Does an RCCB protect against overload and short circuits?
No, an RCCB does not include overcurrent protection, so it requires coordination with an appropriate circuit breaker or fuse. It is not used as a substitute for an overload and short-circuit breaker.
Does 40A mean the leakage sensitivity is 40A?
No. Rated current and leakage sensitivity are two different values; sensitivity here is expressed in milliamperes, while the rated current refers to the current flowing through the device.
Is the AC type suitable for all electronic loads?
Not automatically. The technician determines the required protection type based on the potential leakage current waveform and the nature of the loads; some circuits may require a different type.
Schneider at Bashiti Stores — Electrical Department
Choose residual current circuit breakers from the electrical department at Bashiti according to the specifications required for your project in Jordan. The series name and EZ9R36225 reference help you identify the part accurately when inquiring or ordering a replacement. At Bashiti Stores, we provide key selection data so you can compare similar products, preparing your order for the technician or contractor based on function and compatibility, rather than just price or appearance.
