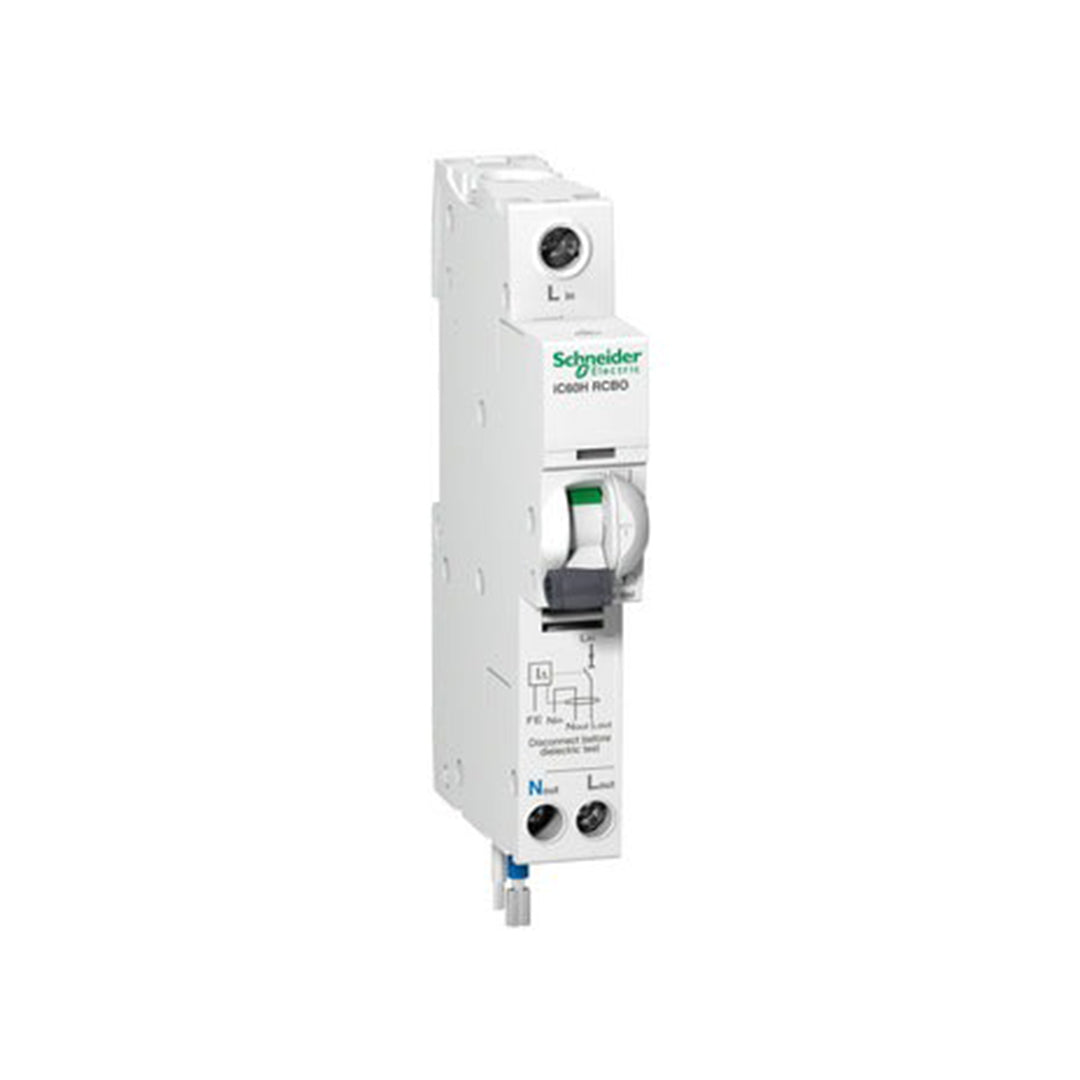

Schneider Acti9 iC60H 32A 1P+Ns 30mA RCBO A9D11832 is an option among the RCBO circuit breakers at Bashiti Stores, designed to combine earth leakage protection with overload and short-circuit protection for a circuit. This model features a 32A current rating and a 30mA leakage sensitivity. When comparing, distinguish between the current flowing through the device and the leakage value that triggers tripping, and review the type of protection suitable for the loads.
Practical Benefits
- Combines multiple protection functions in a single device instead of relying solely on an overload circuit breaker.
- Assigning combined protection to each appropriate circuit helps organize maintenance and identify the affected circuit.
- The Type A classification and leakage sensitivity clarify characteristics that can be matched to load requirements by a specialist.
Technical Specifications for this Model
| Brand |
Schneider Electric |
| Series |
Acti9 iC60H |
| Model Reference |
A9D11832 |
| Rated Current |
32 A |
| Number of Poles |
1P+Ns |
| Leakage Sensitivity |
30 mA |
| Leakage Detection Type |
A |
| Rated Breaking Capacity |
10000 A |
| Rated Operating Voltage |
240VAC |
| Dimensions: W x H x D |
18 x 110 x 77.5 mm |
| Installation |
DIN Rail |
Who needs this product?
Panel technicians and electrical contractors who need combined protection for an independent circuit, especially when reorganizing existing panel circuits. It is selected based on current, leakage sensitivity, protection type, and compatibility with the installation site.
Installation and Verification - For a Qualified Technician
The following steps outline the general workflow. Refer to the manufacturer's diagram for reference A9D11832 to identify terminals and torque values. Do not work on a live circuit.
- The technician must disconnect all power sources and secure them against reactivation, then verify the absence of voltage with a suitable tool.
- Match the device reference, number of poles, current, and voltage with the panel diagram, and review conductor cross-sections and protection coordination.
- Mount the unit on the rail or its designated position after ensuring compatibility, and identify the supply and output based on the manufacturer's diagram for this reference.
- Execute connections using the torque, stripping length, and wire cross-sections specified in the model manual; do not transfer these values from a similar device.
- Check the tightness of the mounting and connections, close the covers, and perform the required operational and protection tests before handing over the circuit.
-
Frequently Asked Questions Before Buying
What is the difference between an RCBO and an RCCB?
An RCBO combines leakage protection with overload and short-circuit protection, whereas an RCCB requires separate, coordinated overload protection.
Does having a leakage breaker eliminate the need for grounding?
No. Grounding, protective bonding, and coordination of protection devices are independent parts of installation safety and are not eliminated by this circuit breaker.
Can it be installed in place of any single-pole breaker?
You must first check the dimensions, poles, neutral, connection points, and the panel system. Similarity in width is not sufficient to prove compatibility.
Schneider at Bashiti Stores - Electrical Department
Choose RCBO circuit breakers from the Bashiti electrical department according to the specifications required for your project in Jordan. The series name and the A9D11832 reference help you identify the item accurately when inquiring or requesting a replacement. At Bashiti Stores, we provide essential selection data to compare similar products, and we prepare your order for the technician or contractor based on function and compatibility, not just on price or appearance.
