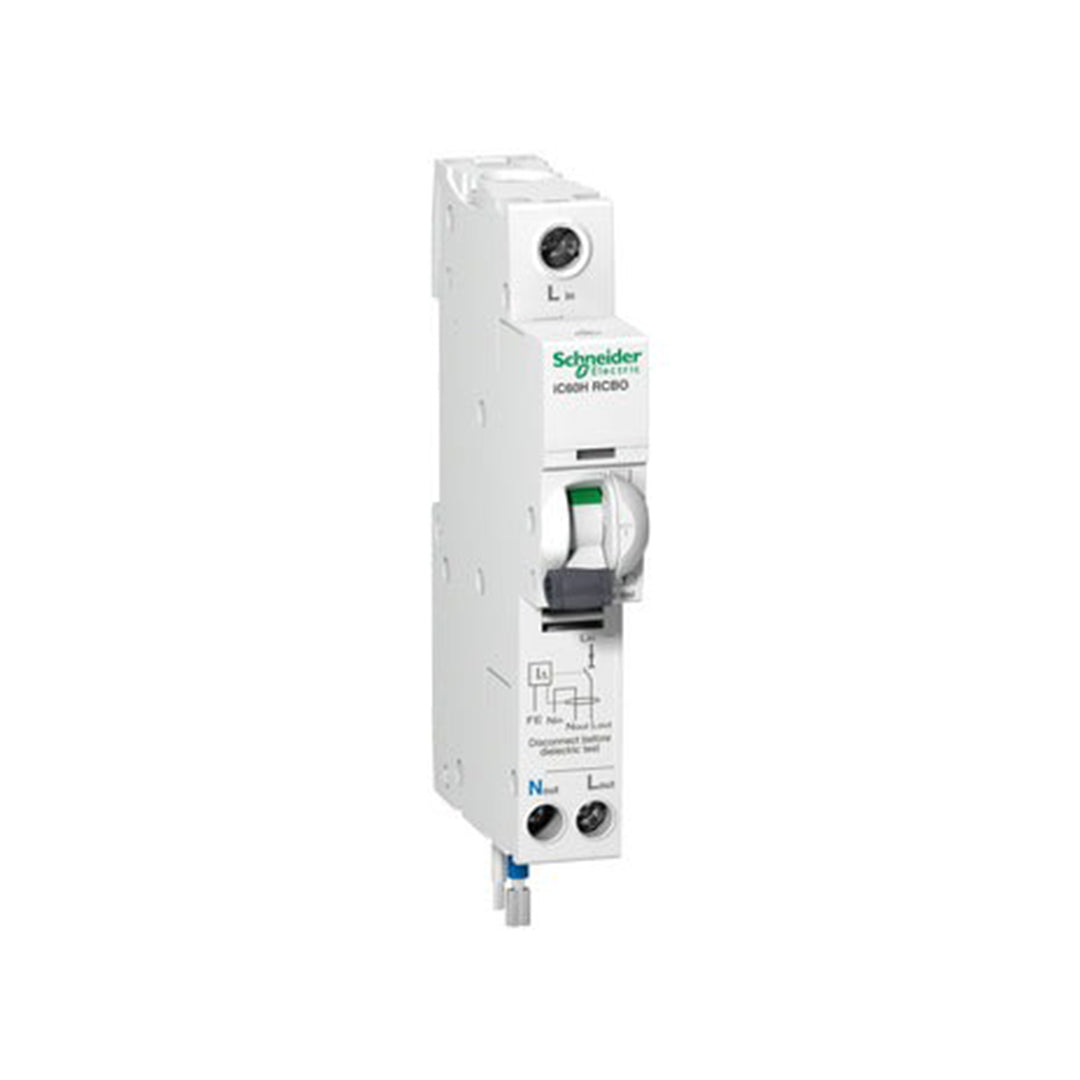

Schneider Acti9 iC60H 20A 1P+Ns 30mA RCBO (A9D11816) is an option among RCBO circuit breakers at Bashiti Stores, designed to combine earth leakage, overload, and short-circuit protection for a circuit. This model features a 20A current rating and a 30mA leakage sensitivity. When comparing, distinguish between the current passing through the device and the leakage value that triggers a trip, and check for the appropriate protection type for the loads.
Practical Benefits
- Combines multiple protection functions into a single device instead of relying solely on an overload circuit breaker.
- Dedicated combined protection for each appropriate circuit facilitates maintenance work and identifying the affected circuit.
- The Type A classification and leakage sensitivity specify characteristics that can be matched with load requirements by a specialist.
Technical Specifications for this Model
| Brand |
Schneider Electric |
| Series |
Acti9 iC60H |
| Model Reference |
A9D11816 |
| Rated Current |
20 A |
| Number of Poles |
1P+Ns |
| Leakage Sensitivity |
30 mA |
| Leakage Detection Type |
A |
| Rated Breaking Capacity |
10000 A |
| Rated Operating Voltage |
240VAC |
| Dimensions: W x H x D |
18 x 110 x 77.5 mm |
| Mounting |
DIN rail |
Who Needs This Product?
Panel technicians and electrical contractors who require combined protection for an independent circuit, especially when reorganizing circuits in an existing panel. It is selected based on current, leakage sensitivity, protection type, and its compatibility with the installation site.
Installation and Verification Procedure — For the Specialized Technician
The following steps outline the general work sequence. Use the manufacturer's diagram for reference A9D11816 to identify terminals and torque values. Do not work on a live circuit.
- The technician must disconnect all power sources, secure them against accidental restart, and verify the absence of voltage with a suitable tool.
- Match the device reference, number of poles, current, and voltage with the panel diagram, and check conductor cross-sections and protection coordination.
- Install the unit on the rail or its designated position after confirming compatibility, and identify the power supply and output based on the manufacturer's diagram for this reference.
- Perform connections using the torque, stripping length, and wire cross-sections specified in the model manual; do not carry over these values from a similar device.
- Check the tightness of the installation and connections, then close the covers and perform the required operational and protection tests before handing over the circuit.
Frequently Asked Questions Before Buying
What is the difference between RCBO and RCCB?
An RCBO combines leakage protection with overload and short-circuit protection, whereas an RCCB requires separate, coordinated overload protection.
Does having a leakage breaker eliminate the need for grounding?
No. Grounding, protective bonding, and protection device coordination are independent parts of installation safety, and this breaker does not replace them.
Can it be installed in place of any single breaker?
You must first check the dimensions, poles, neutral, connection points, and panel system. Similar width is not sufficient to prove compatibility.
Schneider at Bashiti Stores — Electrical Department
Choose RCBO breakers from the Bashiti electrical department according to the specifications required for your project in Jordan. The series name and reference A9D11816 help you identify the part accurately when inquiring or ordering a replacement. At Bashiti Stores, we display essential selection data for you to compare similar products, and you can prepare your order for a technician or installation contractor based on function and compatibility, not just price or appearance.
