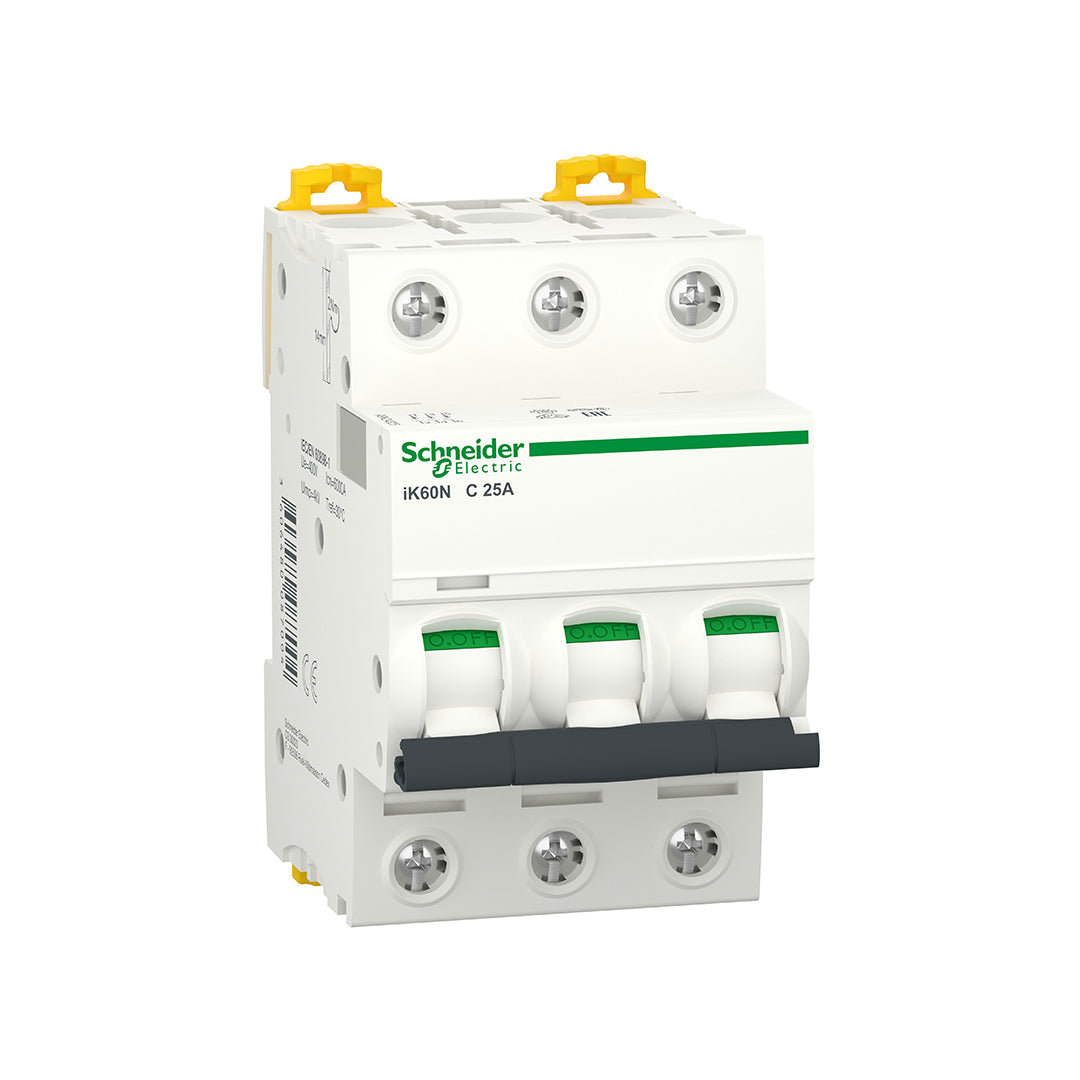

Schneider Acti9 iK60N 25A 3P Curve C 6kA MCB (A9K24325) is an option among MCBs at Bashiti Stores, designed for circuit protection against overload and short circuits. In this option, the rated current is 25A and the number of poles is 3P. These specifications distinguish the model from others in the same series; match them with circuit requirements and do not choose a higher-rated breaker simply to increase the operating margin.
Practical Benefits
- Combines overload and short-circuit protection functions in one modular device.
- Distributing protection across independent circuits helps organize the panel and identify the affected circuit when a fault occurs.
- Selecting the correct current, number of poles, and tripping curve provides the basis for matching the breaker to circuit requirements.
Technical Specifications for This Model
| Brand |
Schneider Electric |
| Series |
Acti9 iK60N |
Model Reference |
A9K24325 |
| Rated Current |
25 A |
| Number of Poles |
3P |
| Tripping Curve |
C |
| Breaking Capacity as per source title |
6kA |
| Rated Operating Voltage |
400VAC |
| Dimensions: W x H x D |
54 x 85 x 78.5 mm |
| Mounting |
DIN rail |
Who needs this product?
Electricians, installation contractors, and homeowners or shop owners setting up a new panel or replacing a matching breaker for an existing circuit. Selection depends on the circuit design, cable cross-section, and installation method, not solely on the device type or appearance.
Installation and Verification — For Professional Technicians
The following steps outline the general work sequence; refer to the manufacturer's diagram for reference A9K24325 to determine terminals and torque values. Do not perform work on a live circuit.
- The technician must disconnect all power sources and secure them against reactivation, then verify the absence of voltage with a suitable tool.
- Match the device reference, number of poles, current, and voltage with the panel diagram, and check conductor cross-sections and protection coordination.
- Install the unit on the rail or its designated position after ensuring compatibility, and identify supply and load connections from the manufacturer's diagram for this reference.
- Perform connections using the tightening torque, stripping length, and wire gauges specified in the model manual; do not transfer these values from a similar device.
- Check the tightness of the mounting and connections, close covers, and conduct required operational and protection tests before commissioning the circuit.
Frequently Asked Questions Before Buying
Does this breaker protect against earth leakage?
An MCB is intended for overload and short-circuit protection and does not replace earth leakage protection. Review the need for an RCCB or RCBO within the panel design.
Should I replace a breaker that trips constantly with one of a higher amperage?
No. First, identify the cause of tripping and inspect the load, cables, and connections. Increasing the amperage without study may leave the wires without proper protection.
What is the difference between amperage and breaking capacity?
Amperage is the rated current of the breaker, while breaking capacity describes the level of short-circuit current it can safely disconnect under specified voltage and standard conditions. Do not substitute one for the other.
