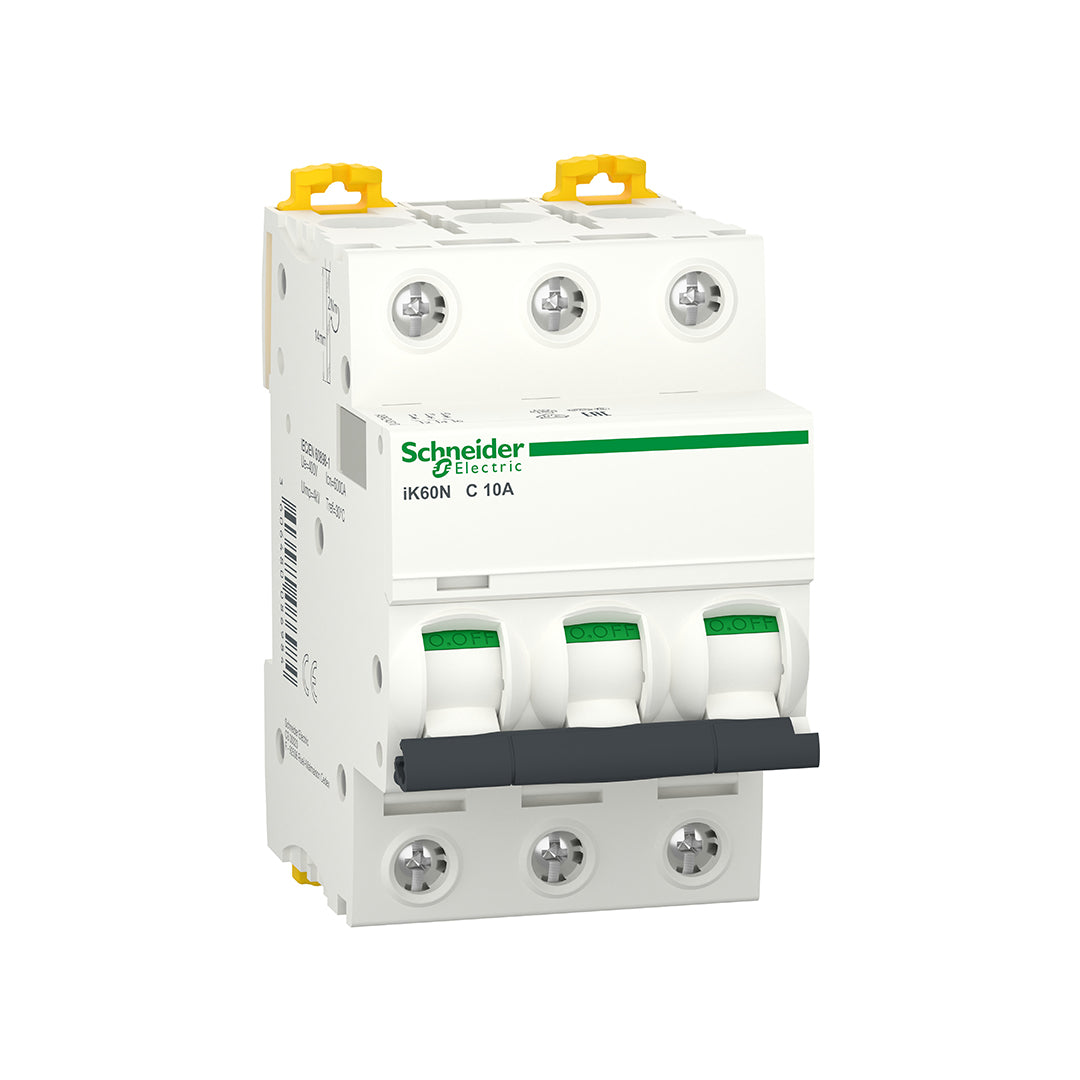

Schneider Acti9 iK60N 10A 3P Curve C 6kA MCB (A9K24310) is an option among the MCB circuit breakers at Bashiti Stores, designed to protect the circuit from overload and short circuits. In this version, the rated current is 10A and the number of poles is 3P. These specifications distinguish the model from alternatives in the same series; match them with circuit requirements and do not choose a higher amperage breaker just to increase the operating margin.
Practical Benefits
- Combines overload and short-circuit protection functions in a single modular device.
- Distributing protection across independent circuits helps organize the panel and identify the affected circuit when a fault occurs.
- Choosing the correct current, number of poles, and tripping curve provides the basis for aligning the breaker with circuit requirements.
Technical Specifications for this Model
| Brand |
Schneider Electric |
| Series |
Acti9 iK60N |
| Model Reference |
A9K24310 |
| Rated Current |
10 A |
| Number of Poles |
3P |
| Tripping Curve |
C |
| Breaking Capacity per Source Title |
6kA |
| Specified Operating Voltage |
400VAC |
| Dimensions: W × H × D |
54 × 85 × 78.5 mm |
| Specified Mounting |
DIN rail |
Who needs this product?
Electricians, installation contractors, and homeowners or business owners setting up a new panel or replacing a breaker that matches an existing circuit. The selection depends on the circuit design, cable cross-section, and installation method, not just on the device type or the appearance of the breaker.
Installation and Verification — For the Qualified Technician
The following steps outline the general work sequence. Refer to the manufacturer's diagram for reference A9K24310 to identify terminals and torque values. Do not perform work on a circuit connected to power.
- The technician disconnects all power sources, secures them against reconnection, and verifies the absence of voltage with an appropriate tool.
- The technician matches the device reference, number of poles, current, and voltage with the panel diagram, and reviews conductor cross-sections and protection coordination.
- The device is mounted on the rail or its designated position after ensuring compatibility, and the supply and load sides are identified from the manufacturer's diagram for this reference.
- Connections are made using the tightening torque, stripping length, and wire gauges specified in the model manual; these values must not be transferred from a similar device.
- The technician checks the tightness of the mounting and connections, closes the covers, and performs the required functional and protection tests before handing over the circuit.
Frequently Asked Questions Before Buying
Does this breaker protect against earth leakage?
An MCB is designed for overload and short-circuit protection and does not replace earth leakage protection. Review the need for an RCCB or RCBO within the panel design.
Should I replace a breaker that trips constantly with a higher amperage one?
No. First, identify the cause of the tripping and check the load, cable, and connections. Increasing the amperage without analysis may leave the wires without appropriate protection.
What is the difference between current (amps) and breaking capacity?
The amperage is the rated current of the breaker, while the breaking capacity describes the level of short-circuit current it can safely interrupt under specified voltage and standard conditions. One should not be substituted for the other.
Schneider at Bashiti Stores — Electrical Department
Choose MCBs from the Bashiti electrical department according to the specifications required for your project in Jordan. The series name and reference A9K24310 help you identify the part accurately when inquiring or ordering a replacement. At Bashiti Stores, we display the essential selection data so you can compare similar products and prepare your order for the technician or contractor based on function and compatibility, not just price or appearance.
