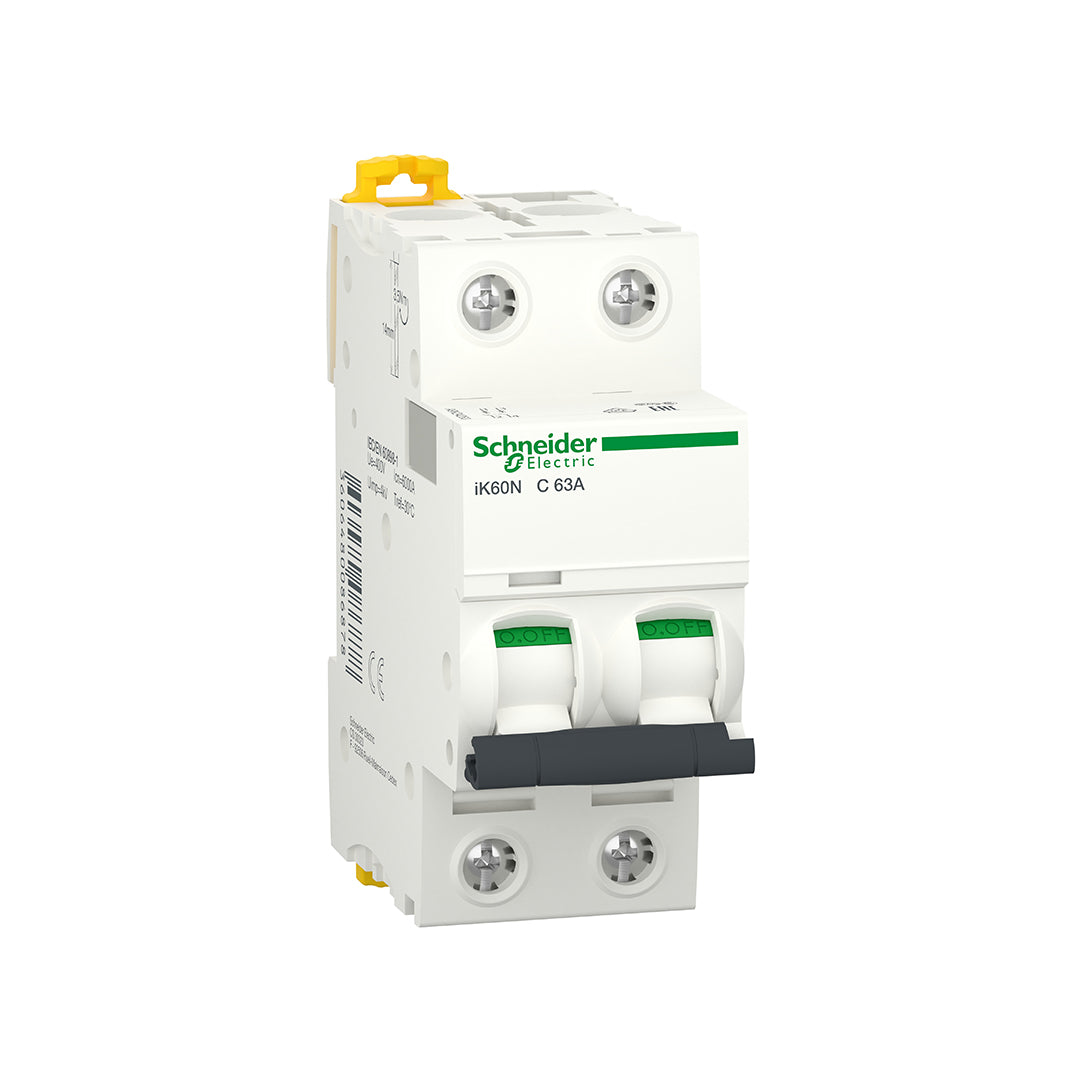

Schneider Acti9 iK60N 63A 2P C-Curve 6kA MCB (A9K24263) is a miniature circuit breaker (MCB) option at Beshity Stores, designed to protect circuits from overloads and short circuits. In this version, the rated current is 63A and the pole count is 2P. These specifications distinguish the model from others in the same series; match them with your circuit requirements and do not choose a higher amperage breaker simply to increase the operating margin.
Practical Benefits
- Combines overload and short-circuit protection functions in one modular device.
- Distributing protection across independent circuits helps organize the panel and identify the affected circuit in the event of a fault.
- Choosing the correct current, pole count, and tripping curve provides a solid foundation for matching the breaker with circuit requirements.
Technical Specifications for This Model
| Brand |
Schneider Electric |
| Series |
Acti9 iK60N |
| Model Reference |
A9K24263 |
| Rated Current |
63 A |
| Number of Poles |
2P |
| Tripping Curve |
C |
| Breaking Capacity per Source Title |
6kA |
| Stated Operating Voltage |
230VAC |
| Dimensions: W x H x D |
36 x 85 x 78.5 mm |
| Mounting |
DIN rail |
Who Needs This Product?
Electricians, wiring contractors, and homeowners or shop owners setting up a new panel or replacing a breaker that matches an existing circuit. Selection is based on circuit design, cable cross-section, and installation method, rather than just the device type or the appearance of the breaker.
Installation and Verification — For Qualified Technicians
The following steps outline the general workflow. Refer to the manufacturer's diagram for reference A9K24263 to identify terminals and torque values. Do not perform work on a live circuit.
- The technician disconnects all power sources, secures them against reactivation, and verifies the absence of voltage with a suitable tool.
- Matches the device reference, pole count, current, and voltage with the panel diagram, and reviews conductor cross-section and protection coordination.
- Mounts the unit on the rail or its designated position after verifying compatibility, and identifies input/output according to the manufacturer's diagram for this reference.
- Executes connections using the torque, stripping length, and wire cross-sections specified in the model manual; do not transfer these values from a similar device.
- Checks the tightness of the mounting and connections, closes the covers, and performs the required operational and protection tests before handing over the circuit.
-
Frequently Asked Questions Before Buying
Does this breaker protect against earth leakage?
An MCB is designed for overload and short-circuit protection and does not replace the need for earth leakage protection. Evaluate the need for an RCCB or RCBO within the panel design.
Should I replace a breaker that trips constantly with one of a higher amperage?
No. You must first identify the cause of the tripping and inspect the load, cable, and connections. Increasing the amperage without analysis may leave the wiring without proper protection.
What is the difference between Amperage and Breaking Capacity?
Amperage is the rated current of the breaker, while breaking capacity describes the level of short-circuit current it can safely interrupt under specified voltage and standard conditions. One should not be substituted for the other.
Schneider at Beshity Stores — Electrical Department
Select MCBs from the Beshity electrical department according to the specifications required for your project in Jordan. The series name and reference A9K24263 help you identify the item accurately when inquiring or requesting a replacement. At Beshity Stores, we provide essential selection data for you to compare similar products, preparing your order for your technician or wiring contractor based on function and compatibility, not just price or appearance.
