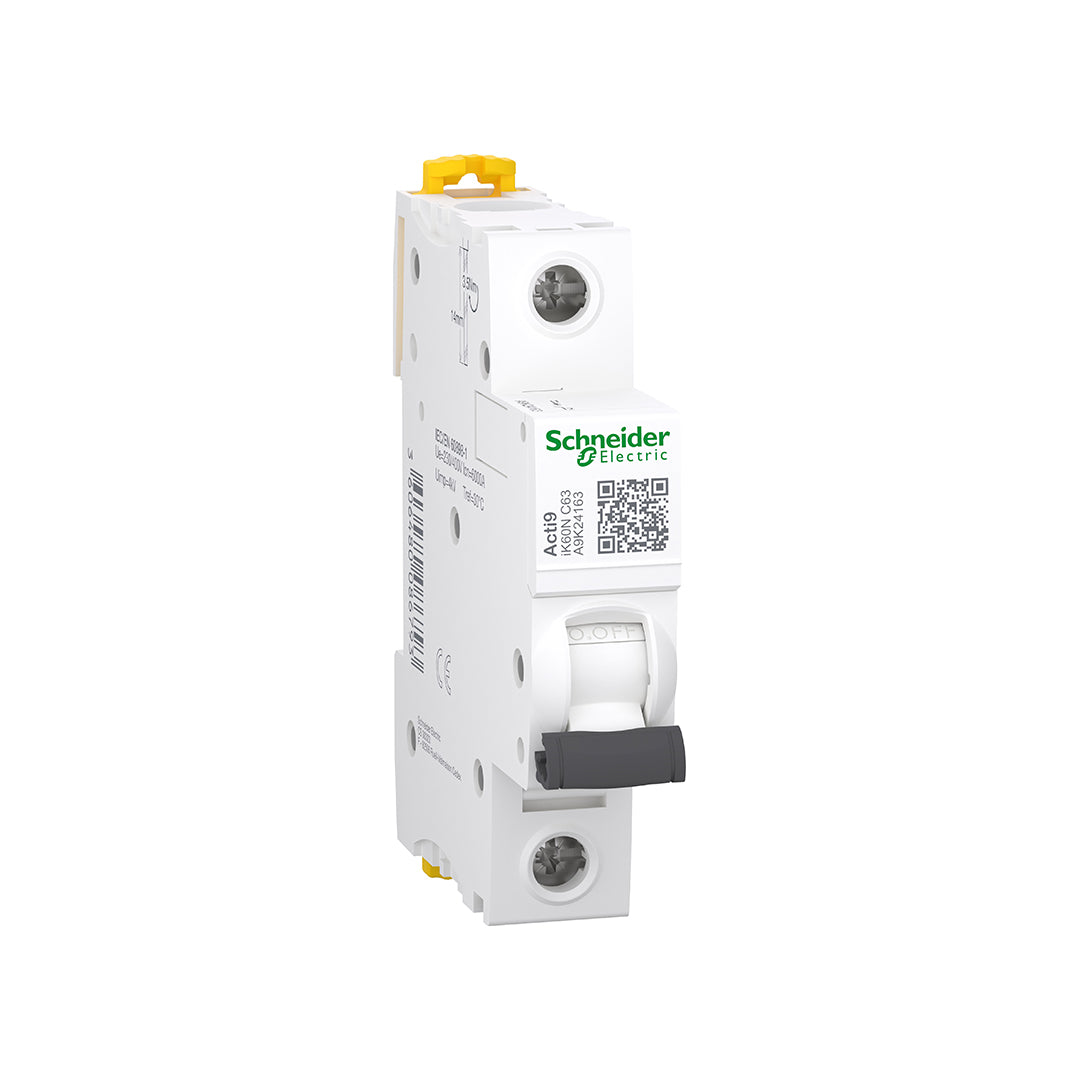

Schneider Acti9 iK60N 63A 1P Curve C 6kA MCB (A9K24163) is an option among the MCB circuit breakers at Bashiti Stores, designed to protect circuits from overload and short circuits. In this version, the rated current is 63A and the number of poles is 1P. These specifications distinguish this model from other alternatives in the same series; match them with your circuit requirements and do not choose a higher amperage breaker just to increase the operating margin.
Practical Benefits
- Combines overload and short-circuit protection functions in a single modular device.
- Distributing protection across independent circuits helps organize the panel and identify the affected circuit in the event of a fault.
- Selecting the correct current, number of poles, and tripping curve provides the basis for aligning the breaker with the circuit's requirements.
Technical Specifications for this Model
| Brand |
Schneider Electric |
| Series |
Acti9 iK60N |
| Model Reference |
A9K24163 |
| Rated Current |
63 A |
| Number of Poles |
1P |
| Tripping Curve |
C |
| Breaking Capacity as per source title |
6kA |
| Rated Operational Voltage |
230VAC |
| Dimensions: W x H x D |
18 x 85 x 78.5 mm |
| Mounting |
DIN rail |
Who needs this product?
Electricians, wiring contractors, and homeowners or shop owners who are setting up a new panel or replacing a breaker that matches an existing circuit. The selection depends on the circuit design, cable cross-section, and installation method, rather than just the device type or the appearance of the breaker.
Installation and Verification Method — For Professional Technicians
The following steps outline the general workflow. Refer to the manufacturer's diagram for the A9K24163 reference to determine terminals and torque values. Do not perform work on a live circuit.
- The technician disconnects all power sources, secures them against reconnection, and verifies the absence of voltage with an appropriate tool.
- Matches the device reference, number of poles, current, and voltage with the panel diagram, and reviews conductor cross-sections and protection coordination.
- Mounts the unit on the rail or its designated position after ensuring compatibility, and identifies the supply and load connections from the manufacturer's diagram for this reference.
- Executes the connections using the torque, stripping length, and wire sizes specified in the model manual; do not transfer these values from a similar device.
- Checks the tightness of the mounting and connections, then closes the covers and performs the required functional and protection tests before handing over the circuit.
-
Frequently Asked Questions Before Buying
Does this breaker protect against earth leakage?
An MCB is designed for overload and short circuits and is not a substitute for earth leakage protection. Review the need for an RCCB or RCBO within the panel design.
Should I replace a breaker that trips constantly with one of a higher amperage?
No. You must first determine the cause of the tripping and inspect the load, cable, and connections. Increasing the amperage without analysis may leave the wires without proper protection.
What is the difference between Amperage and Breaking Capacity?
Amperage is the rated current of the breaker, while breaking capacity describes the level of short-circuit current it can safely disconnect under specified voltage and standard conditions. One should not be substituted for the other.
Schneider at Bashiti Stores — Electrical Department
Choose MCB circuit breakers from Bashiti's electrical department according to the specifications needed for your project in Jordan. The series name and reference A9K24163 help you identify the part accurately when inquiring or requesting a replacement. At Bashiti Stores, we provide essential selection data to compare similar products, preparing your order for the technician or wiring contractor based on function and compatibility, not just price or design.
