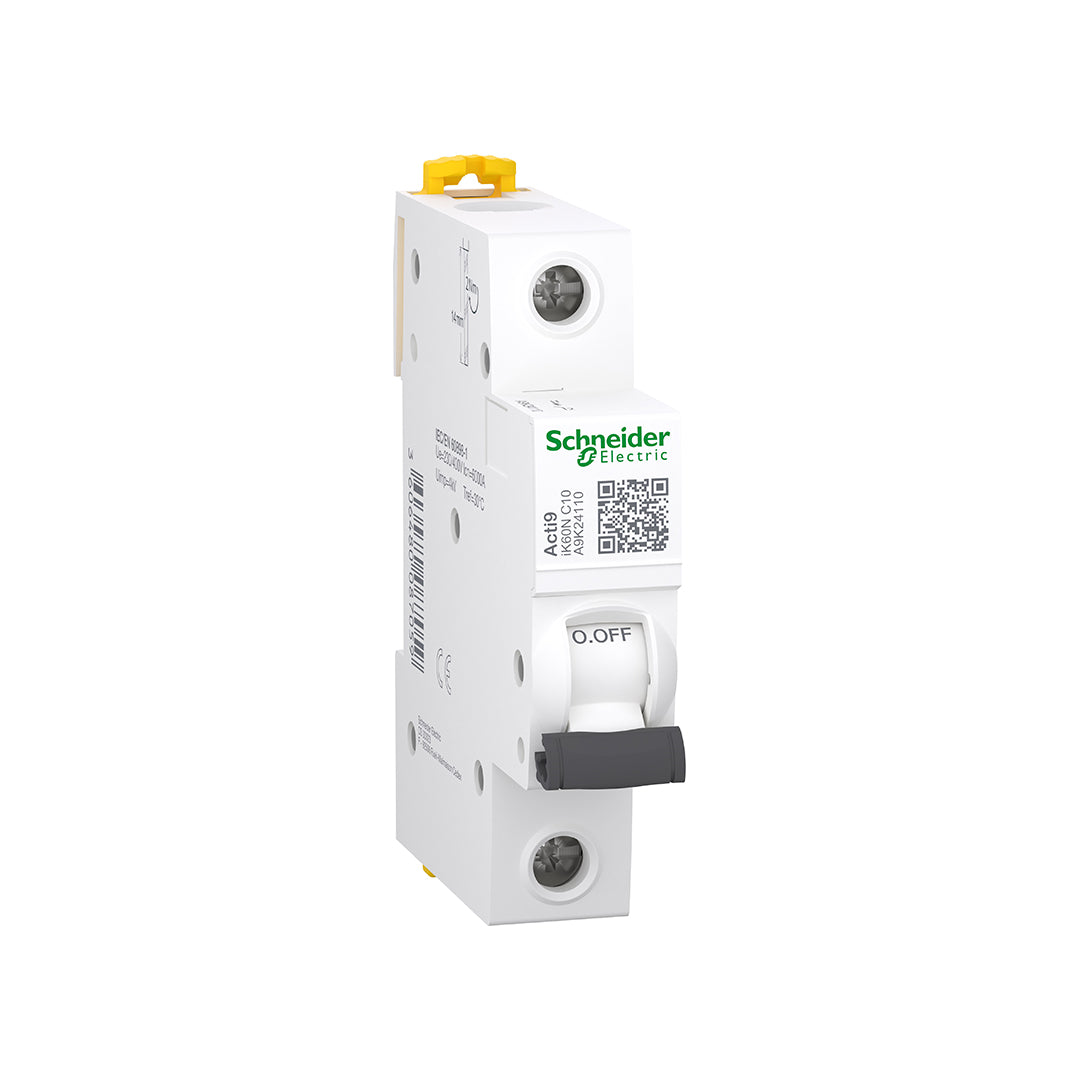

Schneider Acti9 iK60N 10A 1P Curve C 6kA MCB (A9K24110) is an option among the MCBs at Bashiti Stores, designed to protect circuits from overloads and short circuits. In this version, the rated current is 10A and it has 1 pole (1P). These specifications distinguish this model from other alternatives in the same series; match them with your circuit requirements and do not choose a higher amperage breaker simply to increase the operating margin.
Practical Benefits
- Combines overload and short-circuit protection functions in a single modular device.
- Distributing protection across independent circuits helps organize the panel and identify the affected circuit in the event of a fault.
- Choosing the correct current, number of poles, and tripping curve provides the basis for aligning the breaker with circuit requirements.
Technical Specifications for This Model
| Brand |
Schneider Electric |
| Series |
Acti9 iK60N |
| Model Reference |
A9K24110 |
| Rated Current |
10 A |
| Number of Poles |
1P |
| Tripping Curve |
C |
| Breaking Capacity as per header |
6kA |
| Stated Operating Voltage |
230VAC |
| Dimensions: W x H x D |
18 x 85 x 78.5 mm |
| Stated Mounting |
DIN rail |
Who Needs This Product?
Electricians, wiring contractors, and home or shop owners setting up a new panel or replacing a breaker that matches an existing circuit. The selection depends on the circuit design, cable cross-section, and installation method, not just the device type or the appearance of the breaker.
Installation and Verification Procedure — For the Professional Technician
The following steps outline the general workflow. Refer to the manufacturer's diagram for reference A9K24110 to determine terminals and torque values. Do not work on a circuit connected to a power supply.
- The technician disconnects all power sources and secures them against accidental reactivation, then verifies the absence of voltage with an appropriate tool.
- Matches the device reference, number of poles, current, and voltage with the panel diagram, and reviews conductor cross-sections and protection coordination.
- Installs the unit on the rail or its designated position after ensuring compatibility, and identifies input and output based on the manufacturer's diagram for this reference.
- Executes connections using the torque, stripping length, and wire gauges specified in the model manual; do not transpose these values from a similar device.
- Checks for tightness and connection security, then closes the covers and performs the required functional and protection tests before handing over the circuit.
Common Questions Before Purchasing
Does this breaker protect against earth leakage?
The MCB is designed for overload and short-circuit protection and does not replace earth leakage protection. The need for an RCCB or RCBO should be reviewed within the panel design.
Should I replace a breaker that trips frequently with one of a higher amperage?
No. First, identify the cause of the tripping and inspect the load, cable, and connections. Increasing the amperage without analysis may leave wires without appropriate protection.
What is the difference between Amperage and Breaking Capacity?
Amperage is the rated current of the breaker, while breaking capacity describes the level of short-circuit current it can safely disconnect under specified voltage and standard conditions. Do not substitute one for the other.
Schneider at Bashiti Stores — Electrical Department
Choose MCBs from the Bashiti Electrical Department according to the specifications required for your project in Jordan. The series name and reference A9K24110 help you identify the part accurately when inquiring or requesting a replacement. At Bashiti Stores, we provide essential selection data so you can compare similar products and prepare your order for the technician or wiring contractor based on function and compatibility, not just price or appearance.
