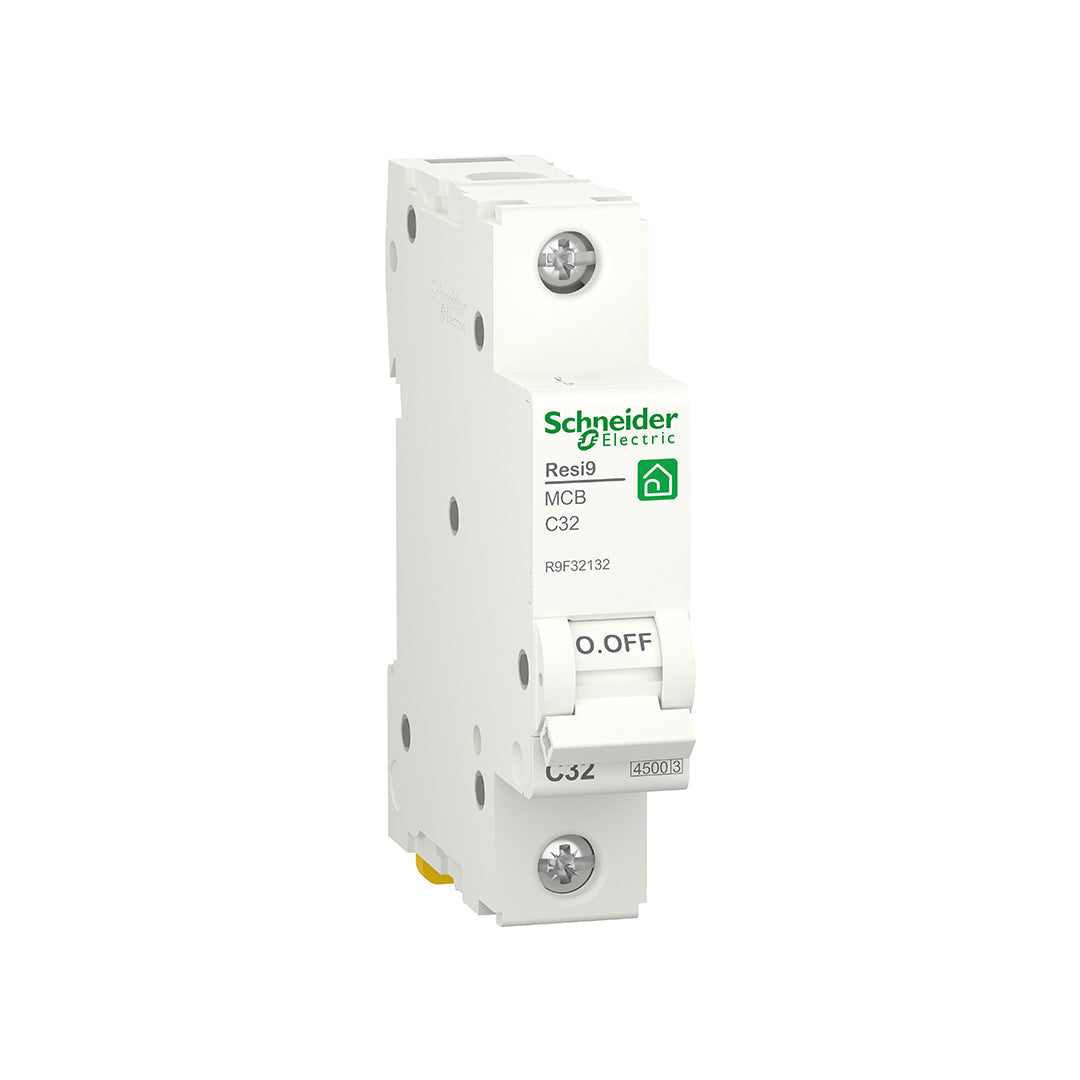

Schneider Resi9 32A 1P C-Curve 4.5kA MCB (R9F32132) is a selection among MCBs at Bashiti Stores, designed to protect circuits from overload and short circuits. In this option, the rated current is 32A and the number of poles is 1P. This data distinguishes the model from other alternatives in the same series; match it with your circuit requirements and do not choose a higher-rated breaker just to increase the operating margin.
Practical Benefits
- Combines the functions of disconnection under overload and short-circuit in a single modular device.
- Distributing protection across independent circuits helps organize the distribution board and identify the affected circuit when a fault occurs.
- Choosing the correct current, number of poles, and tripping curve provides a foundation for matching the breaker with circuit requirements.
Technical Specifications for this Model
| Brand |
Schneider Electric |
| Series |
Resi9 |
| Model Reference |
R9F32132 |
| Rated Current |
32 A |
| Number of Poles |
1P |
| Tripping Curve |
C |
| Breaking Capacity (as per source title) |
4.5kA |
| Rated Operational Voltage |
230VAC |
| Dimensions: W x H x D |
18 x 81 x 72 mm |
| Mounting |
DIN rail |
Who needs this product?
Electricians, installation contractors, homeowners, and shop owners who are setting up a new distribution board or replacing a breaker that matches an existing circuit. Selection depends on the circuit design, cable cross-section, and installation method, not just the device type or the appearance of the breaker.
Installation and Verification — For Professional Technicians
The following steps illustrate the general work sequence; the manufacturer's diagram for the R9F32132 reference must be used to identify terminals and torque values. Do not perform work on a circuit connected to a power supply.
- The technician disconnects all power sources and secures them against accidental reactivation, then verifies the absence of voltage with a suitable tool.
- Matches the device reference, number of poles, current, and voltage with the board schematic, and reviews conductor cross-sections and protection coordination.
- Mounts the unit on the rail or its designated position after ensuring compatibility, and identifies supply and outgoing terminals from the manufacturer's diagram for this reference.
- Executes the connections using the torque settings, stripping length, and wire gauges specified in the model manual; do not transpose these values from a similar device.
- Checks the tightness of the mounting and connections, then closes the covers and performs the required functional and protection tests before handing over the circuit.
Frequently Asked Questions Before Purchase
Does this breaker protect against earth leakage?
The MCB is designed for overload and short-circuit protection and does not replace earth leakage protection. The need for an RCCB or RCBO should be reviewed within the board design.
Should I replace a breaker that trips constantly with one of a higher amperage?
No. You must first identify the cause of the tripping and check the load, cables, and connections. Increasing the amperage without study may leave the wires without appropriate protection.
What is the difference between current (Amps) and breaking capacity?
Amps represent the rated current of the breaker, while breaking capacity describes the level of short-circuit current it can disconnect within defined voltage and standard conditions. Do not substitute one figure for the other.
Schneider at Bashiti Stores — Electrical Department
Choose MCBs from the Bashiti electrical department according to the specifications required for your project in Jordan. The series name and R9F32132 reference help you identify the part precisely when inquiring or ordering a replacement. At Bashiti Stores, we provide core selection data to compare similar products, preparing your order for the technician or contractor based on function and compatibility, not just price or appearance.
