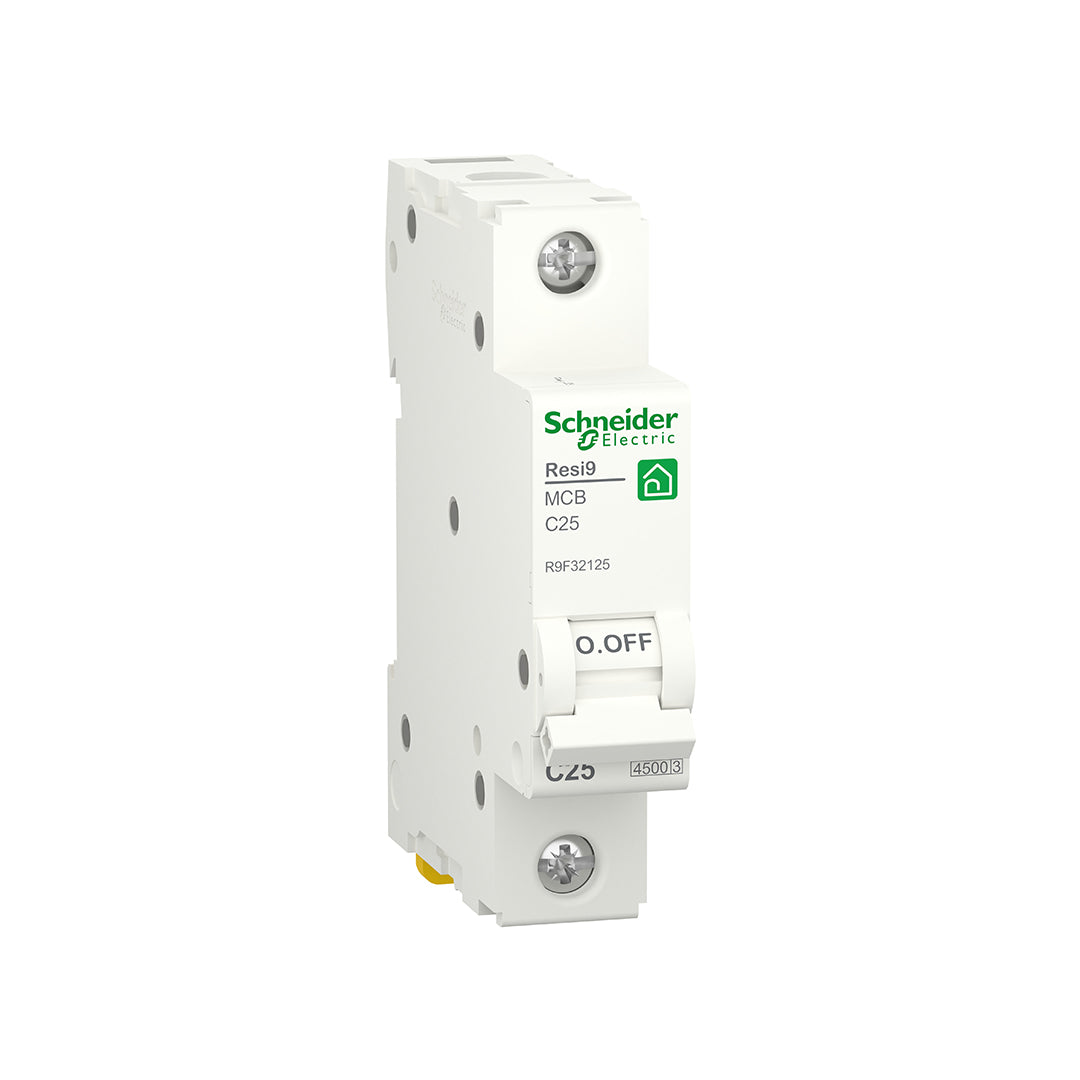

Schneider Resi9 MCB 25A 1P C-Curve 4.5kA R9F32125 is an option among MCB circuit breakers at Bshiti Stores, designed to protect circuits from overloads and short circuits. In this version, the rated current is 25A and the number of poles is 1P. These specifications distinguish the model from other alternatives in the same series; match them with circuit requirements and do not choose a breaker with a higher amperage simply to increase operating margin.
Practical Benefits
- Combines overload and short-circuit disconnection functions in a single modular device.
- Distributing protection across independent circuits helps organize the panel and identify the affected circuit when a fault occurs.
- Selecting the correct current, number of poles, and tripping curve provides a basis for aligning the breaker with circuit requirements.
Technical Specifications for This Model
| Brand |
Schneider Electric |
| Series |
Resi9 |
| Model Reference |
R9F32125 |
| Rated Current |
25 A |
| Number of Poles |
1P |
| Tripping Curve |
C |
| Breaking Capacity as per source title |
4.5kA |
| Specified Operating Voltage |
230VAC |
| Dimensions: W x H x D |
18 x 81 x 72 mm |
| Specified Mounting |
DIN rail |
Who Needs This Product?
Electricians, wiring contractors, homeowners, and shop owners who are setting up a new panel or replacing a breaker matching an existing circuit. Selection depends on the circuit design, cable cross-section, and installation method, rather than just the device type or the appearance of the breaker.
Installation and Verification Procedure — For Licensed Technicians
The following steps outline the general work sequence; the manufacturer's diagram for reference R9F32125 must be consulted to identify terminals and torque values. Do not perform work on a live circuit.
- The technician disconnects all power sources and locks them against accidental reconnection, then verifies the absence of voltage with a suitable tool.
- Matches the device reference, number of poles, current, and voltage with the panel diagram, and reviews conductor cross-sections and protection coordination.
- Mounts the unit on the DIN rail or designated position after confirming compatibility, and identifies the supply and output based on the manufacturer's diagram for this reference.
- Performs connections using the torque, stripping length, and wire gauges specified in the model manual; do not carry over these values from a similar device.
- Checks the security of the mounting and connections, then closes covers and performs required operating and protection tests before handing over the circuit.
Frequently Asked Questions Before Buying
Does this breaker provide earth leakage protection?
An MCB is designed for overload and short-circuit protection and does not replace earth leakage protection. The need for an RCCB or RCBO should be checked within the panel design.
Should I replace a breaker that trips constantly with one of a higher amperage?
No. The cause of the tripping must be identified first by checking the load, cable, and connections. Increasing the amperage without proper assessment may leave wires without appropriate protection.
What is the difference between Amperage and Breaking Capacity?
Amperage is the rated current of the breaker, while breaking capacity describes the level of short-circuit current it can safely disconnect under specified voltage and standard conditions. One figure should not be substituted for the other.
Schneider at Bshiti Stores — Electrical Department
Choose MCBs from the Bshiti electrical department according to the specifications required for your project in Jordan. The series name and reference R9F32125 help you identify the unit precisely when inquiring or ordering a replacement. At Bshiti Stores, we provide essential selection data for you to compare similar products and prepare your order for a technician or wiring contractor based on function and compatibility, not just price or appearance.
