Description

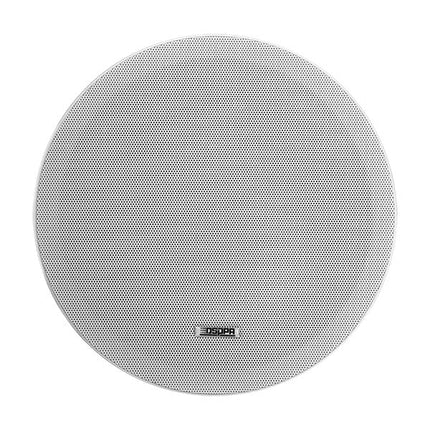

8-inch 35W Ceiling Speaker - DSP5012
DSP5012 — 8-inch 35W Frameless Coaxial Ceiling Speaker
📢 High-Quality Audio with a Sleek, Modern Design
The DSP5012 is a premium 8-inch coaxial ceiling loudspeaker, designed to deliver powerful, clear, and balanced sound while seamlessly blending into any environment. Its ultra-slim, frameless design makes it ideal for modern interiors that prioritize both performance and aesthetics.
✅ Key Features

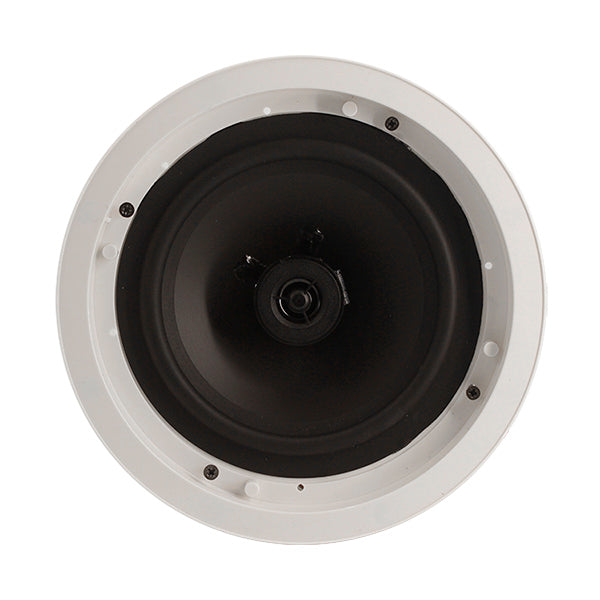

8-inch Coaxial Driver combines a woofer and tweeter for full-range, accurate sound reproduction.
35W Rated Power suitable for medium-sized rooms, offices, cafes, and retail spaces.
Wide Frequency Response (55Hz – 20kHz) for rich bass and crisp treble.
High Sensitivity and Loud Output with a maximum SPL of approximately 103dB.

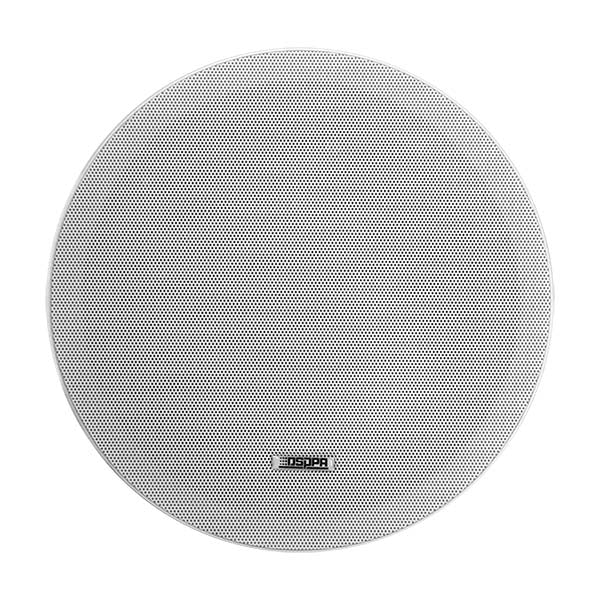

Frameless White Grille blends seamlessly with ceilings for a sleek, modern finish.
Moisture-Resistant Cone suitable for damp indoor areas.
Optional Back Can / Back Box for improved bass response when needed.
Quick and Secure Installation using rotating mounting clamps.
Compliant with power handling safety standards, ensuring long-term durability and stable operation.
📊 Technical Specifications
Speaker Driver: 8-inch Woofer + Tweeter (Coaxial)
Rated Power: 35W
Max SPL: ~103dB @ 1m
Sensitivity: ~88dB
Frequency Response: 55Hz - 20kHz
Ceiling Cutout Diameter: approx. 262mm
Depth: approx. 100mm
Weight: approx. 2kg
Mounting Method: Rotating clamp for ceiling mounting
Color: Frameless White Grille
🎯 Recommended Applications
Retail stores, cafes, restaurants, and retail outlets
Offices, conference rooms, and waiting areas
Multi-room home music systems
Hotels, showrooms, and public address systems
