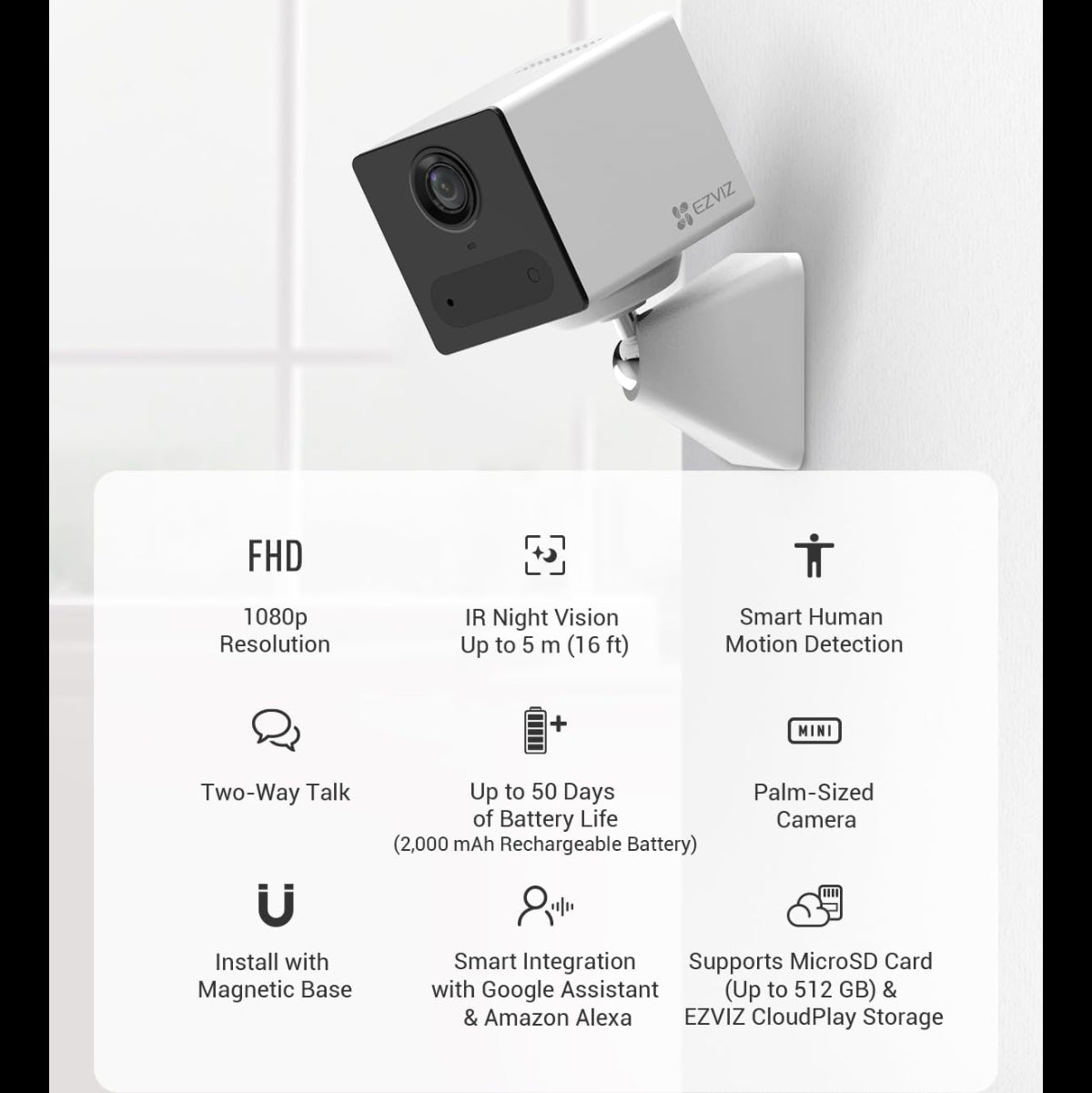

EZVIZ CB2 (CS-CB2-R100-2D2WF) – 1080p Mini Wireless Battery Camera
━━━━━━━━━━━━━━━━━━
General
Type: Mini Wireless Battery-Powered Indoor Security Camera
A highly compact wireless camera designed for flexible indoor monitoring with magnetic mounting.
Supports smart human detection and two-way communication via the EZVIZ app.
━━━━━━━━━━━━━━━━━━
Camera Specifications
Image Sensor: 1/2.8" 2 Megapixel Progressive Scan CMOS
Lens: 4 mm @ F1.6
Viewing Angle:
Diagonal: 100 degrees
Horizontal: 85 degrees
Vertical: 46 degrees
Minimum Illumination: 0.1 Lux
Lens Mount: M12
Day & Night: IR-cut filter with auto-switching
Night Vision Distance: Up to 5 meters (16 feet)
Image Processing:
3D DNR
━━━━━━━━━━━━━━━━━━
Video & Audio
Max Resolution: 1920 × 1080 (Full HD)
Frame Rate: Up to 15 fps (adaptive)
Video Compression: H.265 / H.264
Video Bit Rate: Full HD / HD / Standard
Max Bit Rate: 1 Mbps
Audio: Supports two-way talk
━━━━━━━━━━━━━━━━━━
Smart Functions
Smart Human Motion Detection
Customizable Alert Zone
General Features:
Remote Monitoring
Mobile Notifications
━━━━━━━━━━━━━━━━━━
Network
Wi-Fi Standard: IEEE 802.11 b/g/n
Frequency Band: 2.4 GHz
Channel Bandwidth: 20 MHz
Wireless Security:
WEP / WPA / WPA2 / WPA-PSK / WPA2-PSK
Transmission Rate:
802.11b: 11 Mbps
802.11g: 54 Mbps
802.11n: 150 Mbps
Wi-Fi Pairing: AP pairing
Wired Network: Not supported
Minimum Network Requirement: 1 Mbps
Protocol: EZVIZ Cloud Proprietary Protocol
━━━━━━━━━━━━━━━━━━
Storage
Local Storage: MicroSD card (up to 512 GB)
Cloud Storage: EZVIZ CloudPlay (subscription required)
━━━━━━━━━━━━━━━━━━
Power

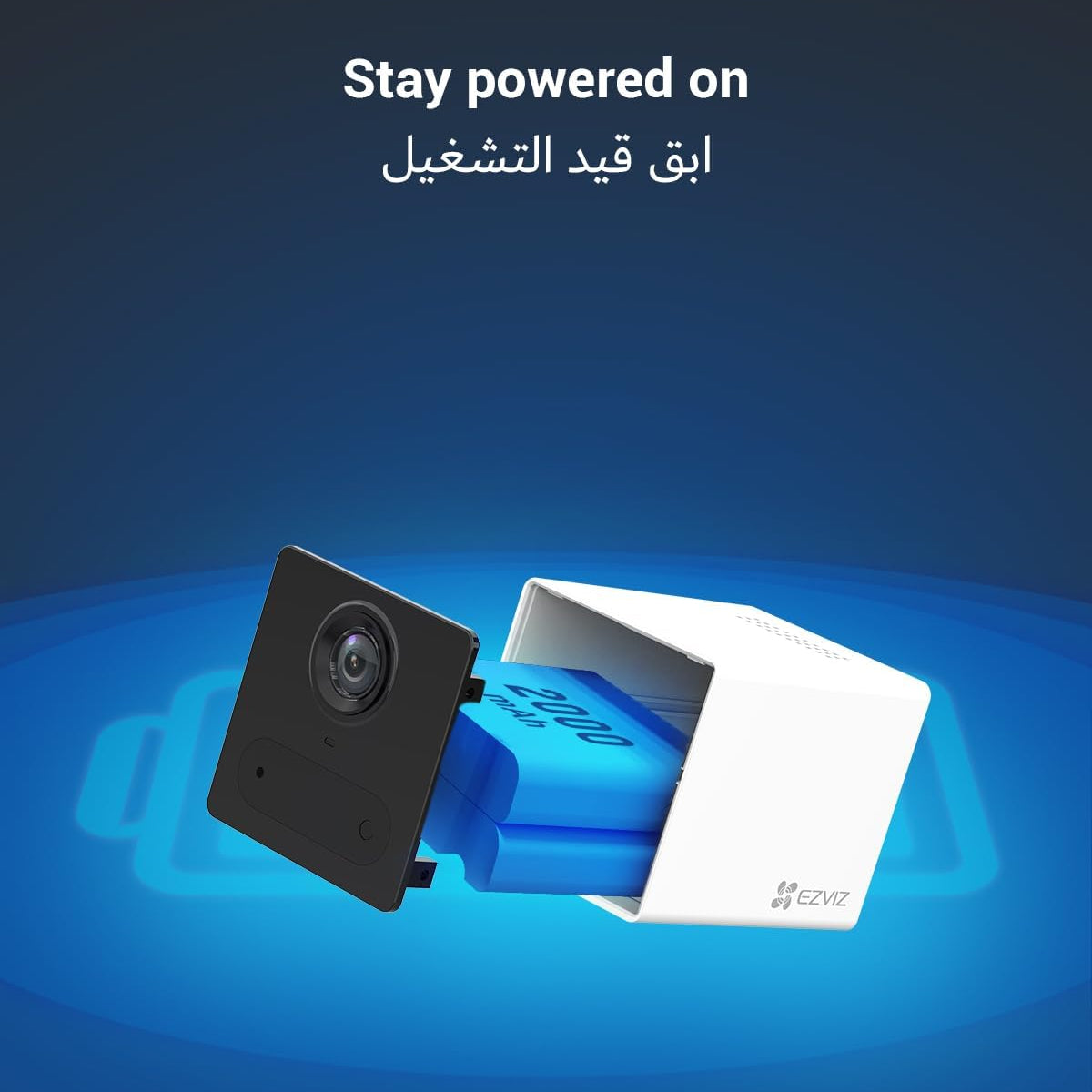

Battery Capacity: 2000 mAh
Power Supply: DC 5V / 1A (adapter sold separately)
━━━━━━━━━━━━━━━━━━
Operating Conditions
Operating Temperature: -10°C to 45°C
Humidity: ≤95% (non-condensing)
━━━━━━━━━━━━━━━━━━
Physical Specifications
Dimensions: 50.5 × 39.1 × 39.1 mm
Weight:
Net Weight: 86.8 g
With Packaging: 273 g
━━━━━━━━━━━━━━━━━━
Package Contents
CB2 Camera
Magnetic Base
Power Cable
Foam Sticker
Metal Plate
Regulatory Information
Quick Start Guide
━━━━━━━━━━━━━━━━━━
Certifications
CE - WEEE - RoHS - REACH - UL
