16-Port PoE Switch | UniView NSW2020-16T1GT1GC-POE-IN

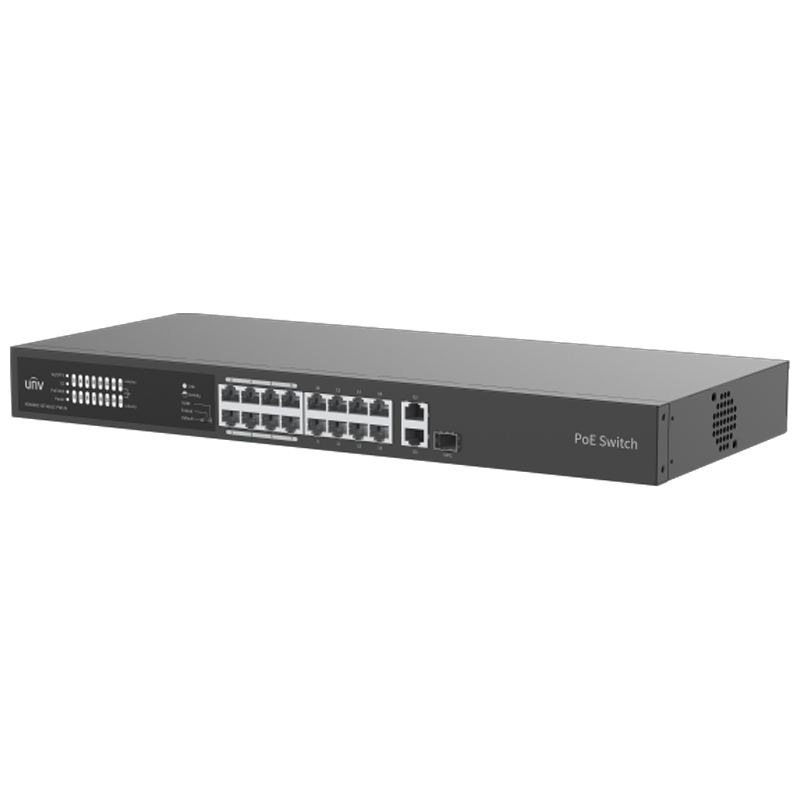

Uniview NSW2020-16T1GT1GC-POE-IN Smart Power Switch
The Uniview NSW2020-16T1GT1GC-POE-IN is a high-capacity unmanaged PoE Ethernet switch, specifically designed for large IP surveillance systems and multi-service network environments. This switch supports 16 PoE Ethernet ports, along with high-speed uplink connections, providing reliable power and data transmission for cameras, access points, VoIP devices, and other PoE equipment. This switch combines robust PoE connectivity with flexible network modes to optimize traffic control and connection stability across various installations.
With its metal chassis and advanced cooling system, the NSW2020-16T1GT1GC-POE-IN offers long-term reliability and continuous operation in professional environments. Its smart features, such as extended PoE range and secure VLAN mode, make it ideal for CCTV surveillance systems, enterprise networks, and multi-device applications.
Technical Specifications
Ports and Connectivity
▸ 16 x 10/100 Mbps PoE+ RJ45 ports for data and power
▸ 1 x 1 Gigabit RJ45 uplink port
▸ 1 x 1 Gigabit Combo uplink port (RJ45/SFP)
Supports IP cameras, Network Video Recorders (NVRs), Wireless Access Points, VoIP phones, and more.
⬤ Power over Ethernet (PoE)
▸ Compliant with IEEE 802.3af and IEEE 802.3at PoE+ standards
▸ Up to 30W per PoE port
▸ Total PoE power budget up to ~225W across all PoE ports
⬤ Performance and Capacity
▸ Switching Capacity ~7.2 Gbps
▸ Forwarding performance ~5.36 Mpps
▸ Packet Buffer Size ~4 Mb
MAC Address Table ~16K entries
⬤ Network Modes and Smart Functions
▸ Default (Normal) Mode – Standard connection between all ports
▸ VLAN (Secure) Mode – Downlink ports only connect to uplink ports
▸ Extend (Surveillance) Mode – PoE transmission extended up to ~250 meters
▸ Port traffic control and buffer optimization for stability
⬤ Protection and Hardware
▸ Full metal casing for durability
▸ Single fan cooling for stable thermal management
▸ Auto-MDI/MDIX support
▸ LED indicators for PoE, Link, Power, and Activity
⬤ Physical Environment
▸ Dimensions: ~440 x 195 x 44 mm
▸ Weight ~2.12 kg
▸ Operating temperature: 0°C to 40°C
▸ Operating humidity: 10% - 90% non-condensing
Typical Applications
◉ Large-scale IP CCTV surveillance systems
◉ Enterprise and commercial network deployments
◉ Offices, retail stores, hotels, and university campuses
◉ Powering PoE access points and security devices
◉ VoIP devices and connected IoT devices
◉ Extended network range with surveillance mode
What's in the Box?
▸ Uniview NSW2020-16T1GT1GC-POE-IN PoE Ethernet switch
▸ Power adapter (AC 100-240V)
▸ Quick Start Guide / User Manual
▸ Mounting accessories (if provided by vendor)
