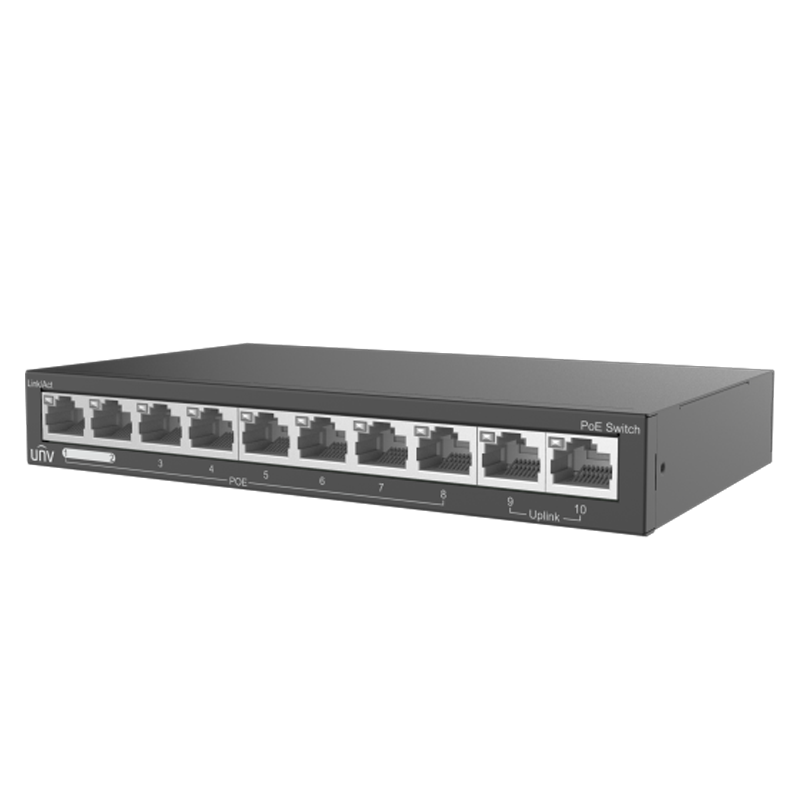

10-Port PoE Switch | UniView NSW2020-10T-POE-IN
UniView NSW2020-6T-POE-IN PoE Ethernet Switch
The UniView NSW2020-6T-POE-IN is a compact, unmanaged PoE switch specifically designed for IP surveillance applications and small to medium-sized networks. This switch provides Power over Ethernet (PoE) directly to devices such as IP cameras, access points, and VoIP devices, reducing the need for separate power sources and simplifying installation. This model features a durable metal casing with a fanless design for silent operation and reliable long-term performance. The switch supports multiple operating modes, including Normal mode, Secure VLAN mode, and Extended surveillance mode with long-range PoE data transmission.
The NSW2020-6T-POE-IN is ideal for budget-conscious surveillance systems, striking a balance between simplicity and essential functionalities, offering stable data transmission and intelligent PoE behavior in environments with multiple connected devices.
Technical Specifications
🔹 Ports and Connectivity
✦ 6x 10/100Mbps RJ45 ports
✦ Includes 4 PoE ports + 2 uplink ports
✦ Designed for IP cameras, Wi-Fi access points, VoIP devices, and essential network extensions
🔹 PoE Power Features
✦ Supports IEEE 802.3af / IEEE 802.3at PoE standards
✦ Up to 30W per PoE port
✦ Total PoE power budget ~60W for all PoE ports
🔹 Performance and Capacity
✦ Switching capacity ~1.2 Gbps
✦ Forwarding performance ~0.90 Mpps
✦ Packet buffer size ~448 Kbit
✦ MAC address table ~1K entries
🔹 Operating Modes
✦ Default Mode (Normal Mode): All ports can communicate freely
✦ VLAN (Secure Mode): Downlink PoE ports communicate only with uplink ports
✦ Extend Mode (Surveillance Mode): PoE transmission range up to 250m for remote camera deployment
🔹 Protection and Reliability
✦ Solid metal casing – durable and robust design
✦ Fanless design – silent and low maintenance
✦ Auto-negotiation and Auto-MDI/MDIX support
🔹 Power and Environment
✦ External DC power (48/51V) via included adapter (AC 100-240V)
✦ Operating temperature: 0°C - 40°C
✦ Operating humidity: 10% - 90% non-condensing
Common Applications
◉ Small IP CCTV surveillance networks
◉ Small offices or retail stores
◉ Home and residential security systems
◉ Powering wireless access points with PoE
◉ Power distribution for VoIP devices and essential network equipment
What's in the Box?
UniView NSW2020-6T-POE-IN PoE Switch
▸ Power adapter (48/51V DC)
▸ User manual / Quick start guide
▸ Mounting accessories (if provided by vendor)
