Description

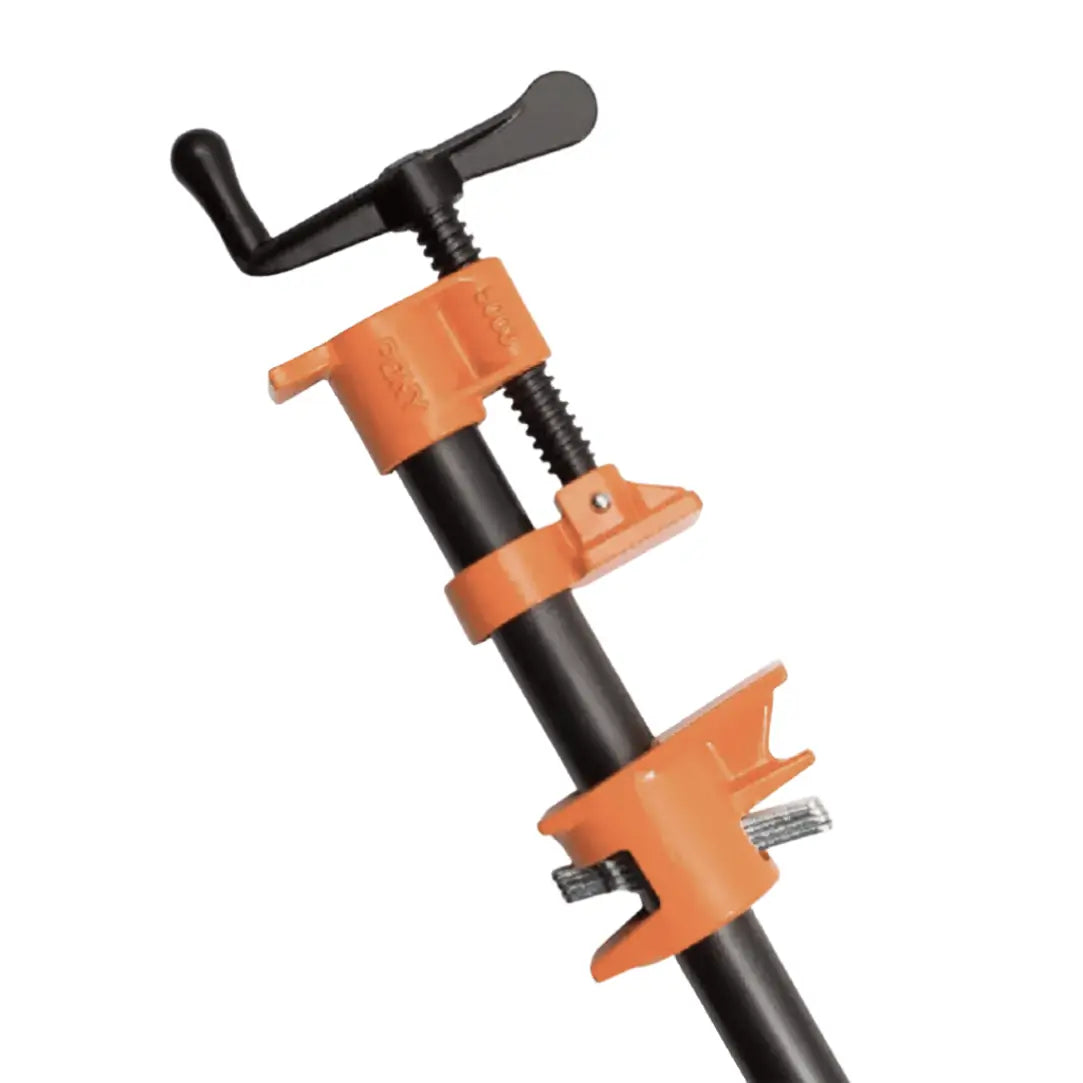

Classic Pipe Clamp Fixture – Pony #50 Model – is America’s original and most popular design since 1903. This clamp is designed to give you the freedom to choose the clamping length you need simply by changing the length of the pipe used, making it an indispensable tool in woodworking shops and construction sites for joining wide panels and large projects.
Professional Features and Benefits:
-
Multiple-Disc-Clutch System: Features an original design of steel discs that ensure a strong and secure grip on the pipe with instant adjustment at any point, without fear of slipping or crushing the pipe.
-
Durable Cast Iron Construction: Main components are made of strong cast iron to ensure durability and withstand high clamping pressures in harsh work environments.
-
Unlimited Length Flexibility: You can use any length of standard or heavy-duty 3/4-inch black pipe, eliminating the need to purchase clamps of fixed lengths.
-
Easy Assembly: Requires no special tools; simply screw the head onto the pipe threads, then slide the tail-stop from the other end and add the stop spring.
-
Powerful Clamping Force: Model #50 provides a nominal clamping force of up to 1200 lbs, with a maximum load limit of 2800 lbs.
Technical Specifications for Pony #50 Model:
-
Model Number: 50.
-
Pipe Used: 3/4-inch black pipe (3/4"-14 NPT Pipe).
-
Throat Depth: 1-11/16 inches (42 mm).
-
Nominal Clamping Force: 1200 lbs.
-
Max. Load Limit: 2800 lbs.
Usage and Maintenance Tips:
-
Choosing Pipe Length: For best results, the pipe should be cut 7 inches longer than the desired clamping length.
-
Maintenance: Oil the screw and clutch discs to facilitate operation and extend product life.
-
Restoring Performance: In case of slipping, the clutch discs can be removed, reversed, and reinstalled or replaced.
Additional Note: "Pony Pipe Clamp Pads" (model number 7456) are available for this model. These soft plastic pads protect wood and metal surfaces from scratches during clamping.
