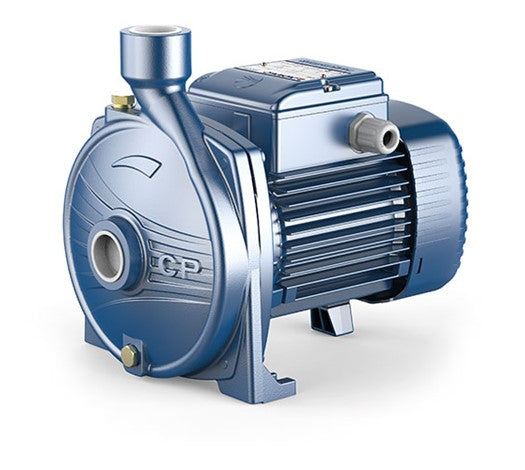

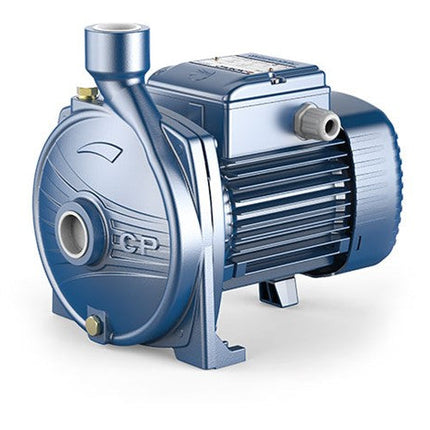

Product Name: Pedrollo Water Pump 1.5 HP, 1.25*1" Inlet/Outlet, Pedrollo CPM170
Country of Origin: Italy
Manufacturer: Pedrollo
Product Description:
These wide-impeller pumps are specifically designed to transfer clean water free of abrasive particles or liquids that could damage pump components. Thanks to their reliability and ease of operation, these pumps have wide applications in domestic and civil environments.
Applications:
- Water distribution in conjunction with small and medium-sized pressure tanks
- Effective fluid transfer
- Irrigation of orchards and gardens
-
Maximum Suction Depth: Up to 7 meters
-
Liquid Temperature: Between -10°C and +90°C
-
Ambient Temperature: Up to +40°C
-
Maximum Operating Pressure:
- 6 bar for models: CP 100-130-132-150-158
- 10 bar for models: CP 170-190-200
These pumps are an ideal choice for meeting domestic water distribution needs, whether for daily use or for irrigation in green spaces.
- Guaranteed for six months against any manufacturing defect, excluding misuse (burning and breakage)
|
Power (HP)
|
1.5
|
|
Vertical Pumping Distance
|
22-41 meters
|
|
Pumping Volume (m³/hour)
|
0.6-7.2
|
|
Protection Rating*
|
IP X5
|
|
Winding Insulation Class**
|
F
|
|
Inlet/Outlet
|
1.25"/ 1"
|
|
Suitable Water Temperature
|
Up to 60 degrees Celsius
|
|
Weight (kg)
|
19.3
|
* Is an internationally recognized protection rating where the first digit refers to resistance to solid objects and dust, and the second digit refers to the device's water resistance.
** Is an internationally recognized standard for classifying the temperature tolerance of electrical windings in devices.
