Description

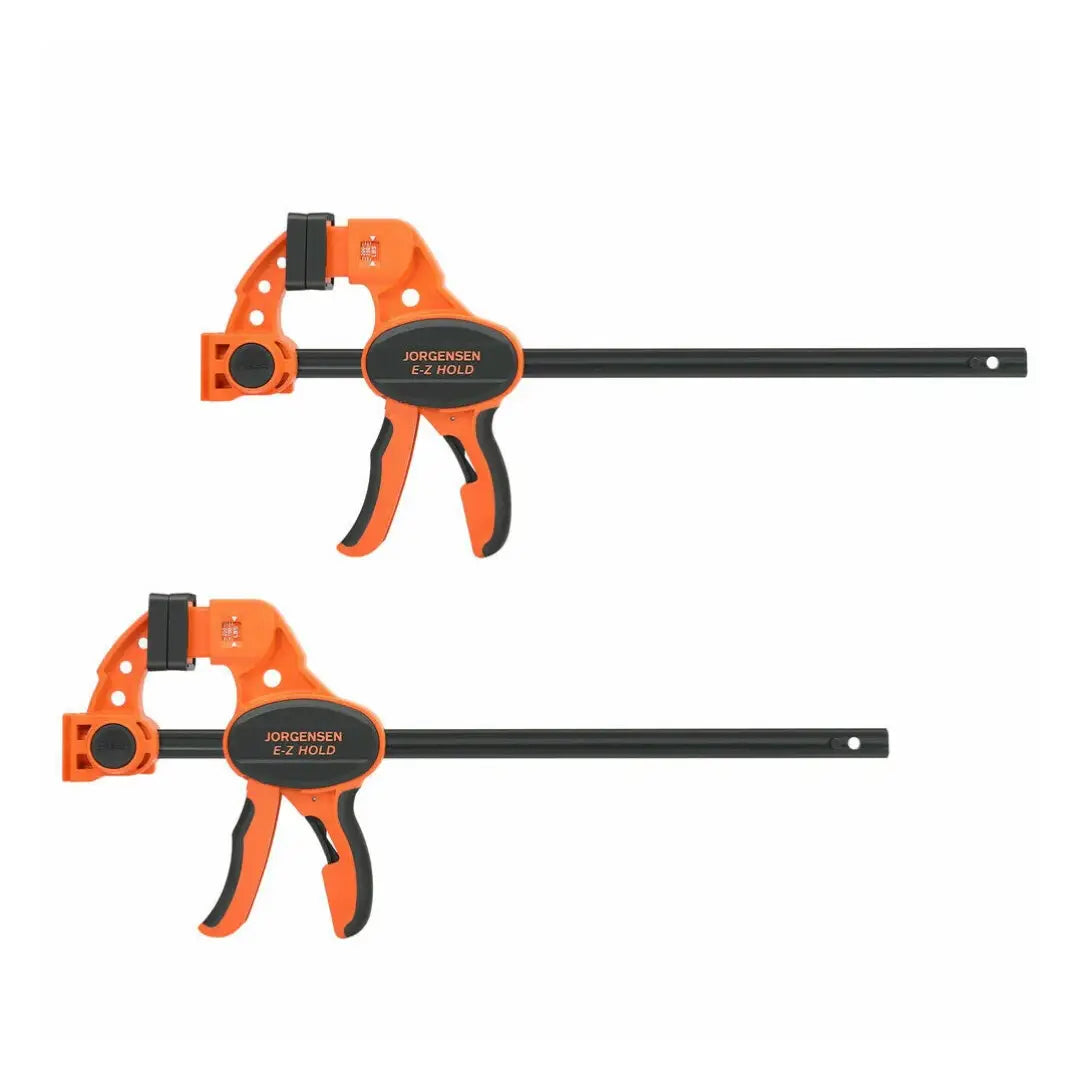

Medium-Duty E-Z Hold Clamp Set – Model 93367 – This Jorgensen set offers an ideal balance of strength and innovation, featuring a unique joining capability and a pressure display window to ensure extreme precision in your work. These clamps are designed for professionals such as carpenters and cabinet makers, thanks to their generous throat depth and easy one-handed operation.
Professional Features and Benefits:
-
Precise Pressure Control: Equipped with an integrated pressure display window showing up to 300 lbs, helping you accurately control the force applied to the workpiece.
-
E-Z Hold Joining Technology: This innovative design allows you to connect two clamps together for an extended clamping length, making it stronger and more versatile than you’d expect.
-
One-Handed Operation: The trigger and quick-release handle combine speed and ease, allowing you to clamp pieces with one hand and keep the other free to adjust your work.
-
Superior Durability: Features a reinforced nylon handle and a high-frequency heat-treated, black-plated steel bar to ensure corrosion resistance and longevity.
-
Surface Protection: Includes deep, removable jaw pads that help protect workpieces from pressure marks.
Technical Specifications for Model 93367:
-
Model Number: 93367 (Two-piece set).
-
Maximum Clamping Capacity (per single clamp): 12 inches.
-
Maximum Clamping Capacity (when joined): Up to 28-3/4 inches.
-
Maximum Spreading Capacity: Up to 40 inches when the set is joined.
-
Throat Depth: 3-3/8 inches.
-
Load Limit: 300 lbs (approximately 136 kg).
Ideal Uses:
-
Medium-Sized Projects: Excellent for woodworking, cabinet assembly, and DIY home projects.
-
Multi-functional: Easily converts from a clamp to a spreader tool.
Technical Tip: The innovative sliding head maintains consistent, high clamping force, making it ideal for holding panels while glue dries to prevent any shifting.
