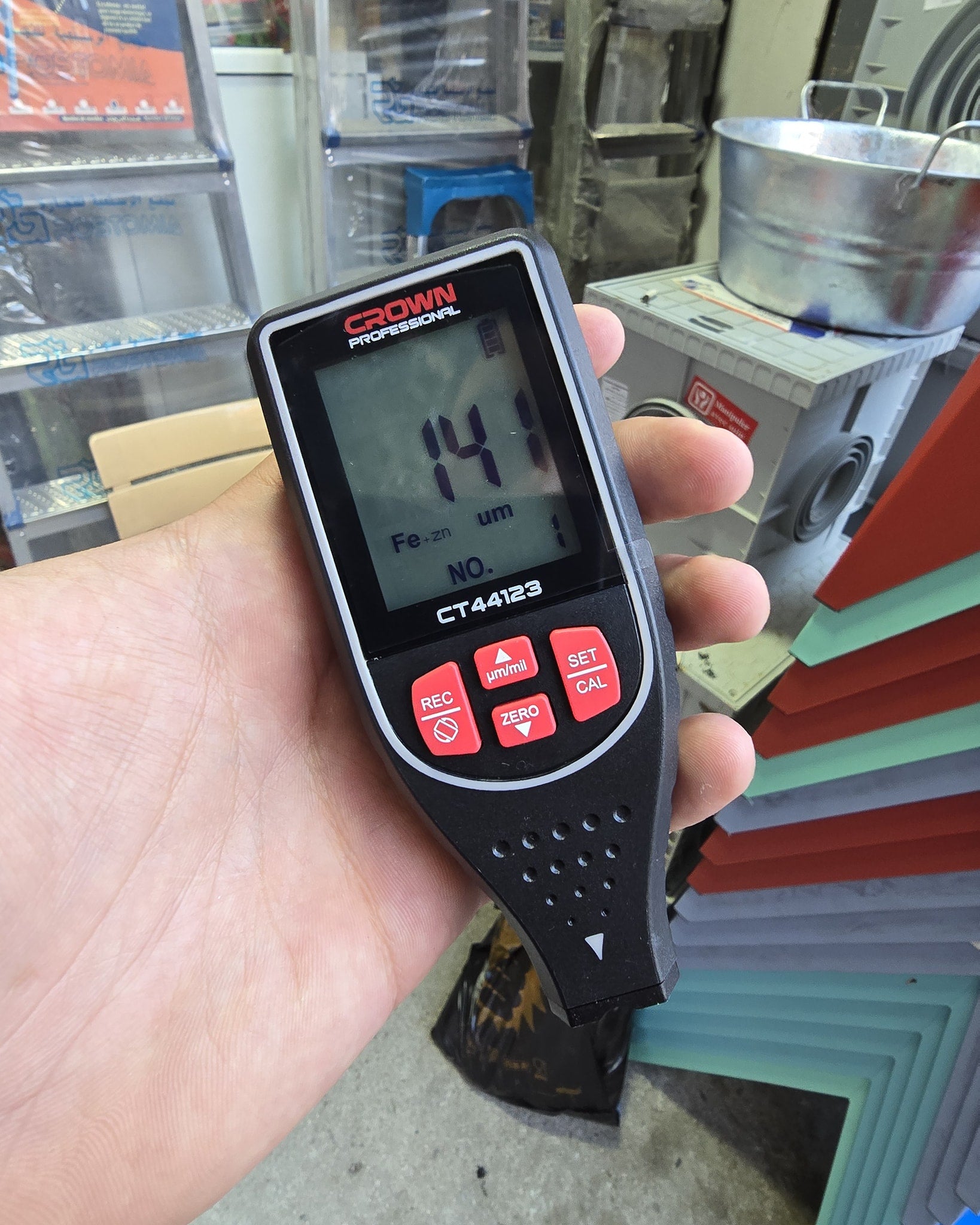

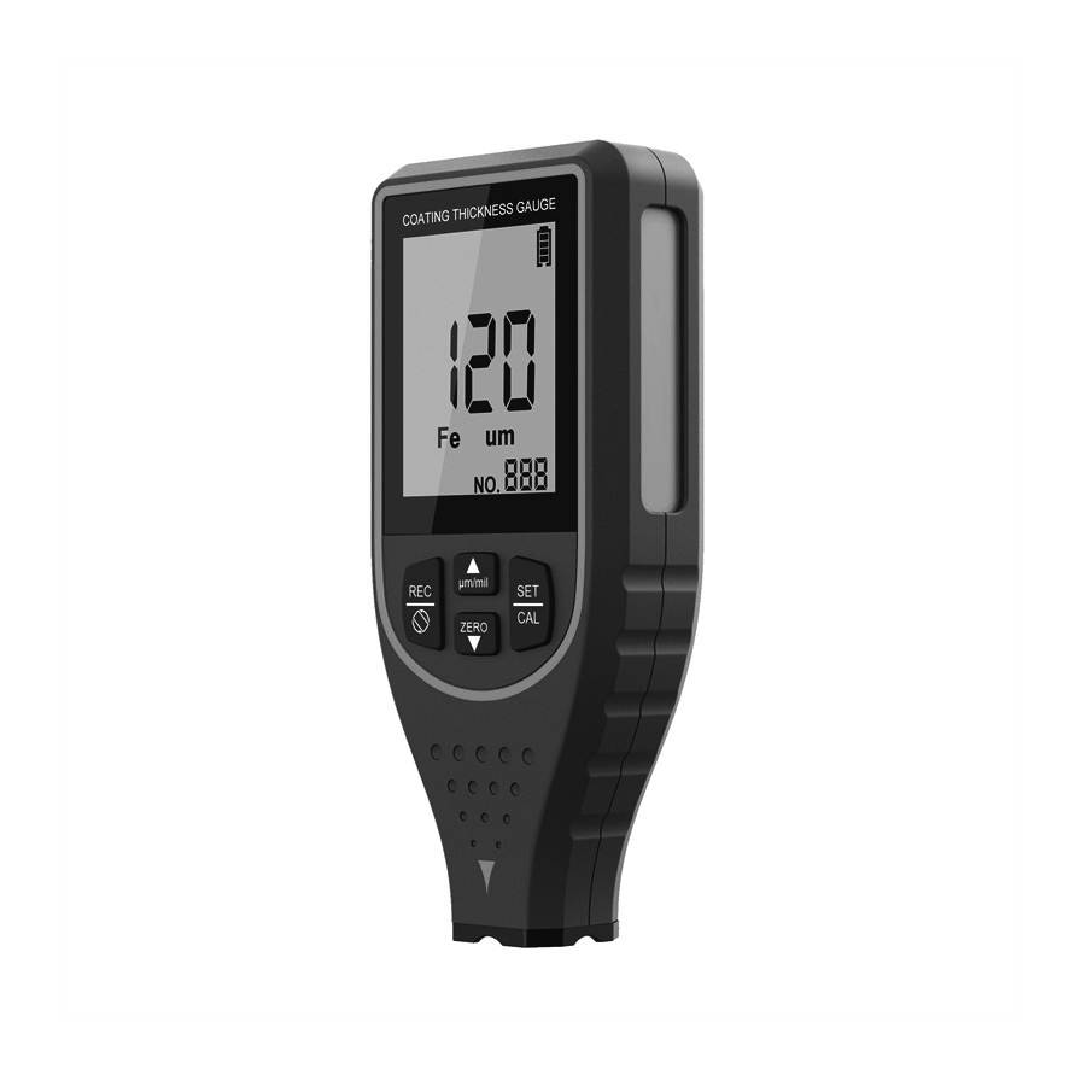

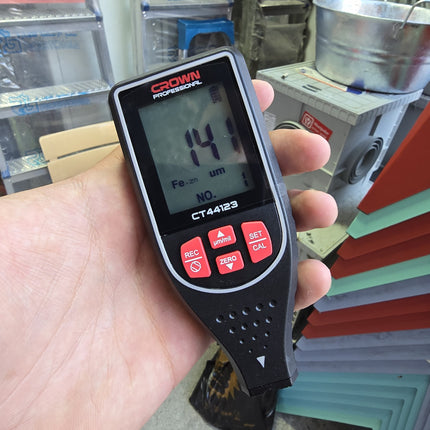

A professional device for accurately measuring paint thickness on magnetic and non-magnetic metals, ideal for car inspection centers, painting, industrial production, and quality control.
Features:
-
Large display screen for clearer and easier reading.
-
Automatically flips data when the device is rotated.
-
Measurement limit alarm when specified values are exceeded.
-
Accurate paint measurement on iron and aluminum.
-
Professional portable and lightweight design for daily use.
Technical Specifications:
| Item |
Specification |
| Measurement Range for Magnetic Materials |
0–1700 μm |
| Measurement Range for Non-Magnetic Materials |
0–1700 μm |
| Resolution |
0.01 μm (0–9.99 μm) / 0.1 μm (10–99.9 μm) / 1 μm (100–1700 μm) |
| Error Margin |
±(2 + 2%*H) μm from 0–500 μm / ±(2.5%*H) from 500–1700 μm |
| Minimum Measurement Area |
25 × 25 mm |
| Minimum Convex Surface Radius |
5 mm |
| Minimum Concave Surface Radius |
30 mm |
| Minimum Magnetic Base Thickness |
0.2 mm |
| Minimum Non-Magnetic Base Thickness |
0.05 mm |
| Item Number |
04412300101 |
| Packaging |
Colored box |
| Outer Carton Size |
52 × 37.5 × 21 cm |
| Quantity per Carton |
30 pieces |
| Gross Carton Weight |
12.3 kg |
| Container Quantity |
20460 / 40950 / 49740 |
| HS Code |
9031809090 |
