| Generation System |
Continuous |
| Materials Used |
Acrylic, Metal, Plastic |
| Flow Rate |
1 – 10 liters / minute |
| Oxygen Purity |
93% ± 3% |
| Operating Pressure |
80 ± 6 kPa |
| Sound Level |
<52 dB |
| Nebulizer Flow |
≤ 6 L/min
|
| Particle Size from Nebulizer |
≤ 5 microns
|
| Power Required for Operation |
220 ±22 Volts 50 or 60 Hz |
| Average Power Consumption |
560 Watts |
| Device Dimensions |
40 X 30 X 54 cm |
| Weight |
21.5 kg |
| Quality Certifications |
CE / ISO13485 / ISO9001 |
Features:
– High oxygen purity
– Compact and lightweight design
– Low noise for bedside use
– 24/7 continuous operation
– Alarm system to monitor device operation
– LCD screen
– One control button
– Low power consumption
Working Principle:
The oxygen concentrator uses air as raw material and a high-quality molecular sieve,
and adopts the pressure swing adsorption principle to separate oxygen directly from nitrogen
at normal temperature, thereby producing high-purity oxygen.
The device is suitable for the following cases:
– People with poor physical fitness
– Pregnant women –
– Students and other people with varying degrees of physiological hypoxia
– Eliminating fatigue and restoring physical function after intense physical or mental exertion.
Functions:

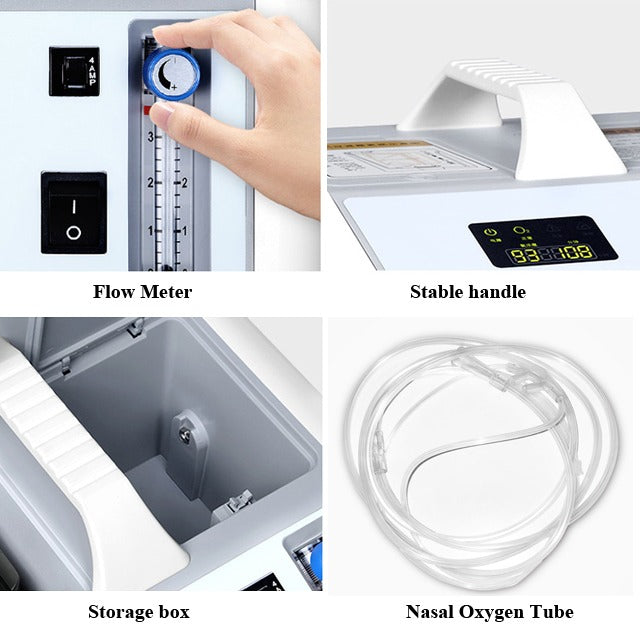

– Large display showing total operating hours and current operating time
– Automatic alarm system: power outage alarm, low voltage alarm, low oxygen purity alarm
– Automatic shutdown in case of excessive device load
Advantages:
– Adopting PSA technology
– (Pressure Swing Adsorption)
– Equipped with a Swiss-made sieve
– Lifespan of over 10,000 hours, which is double that of others
– Low noise, less than 43 dB. Adopting a multi-layer design to reduce noise

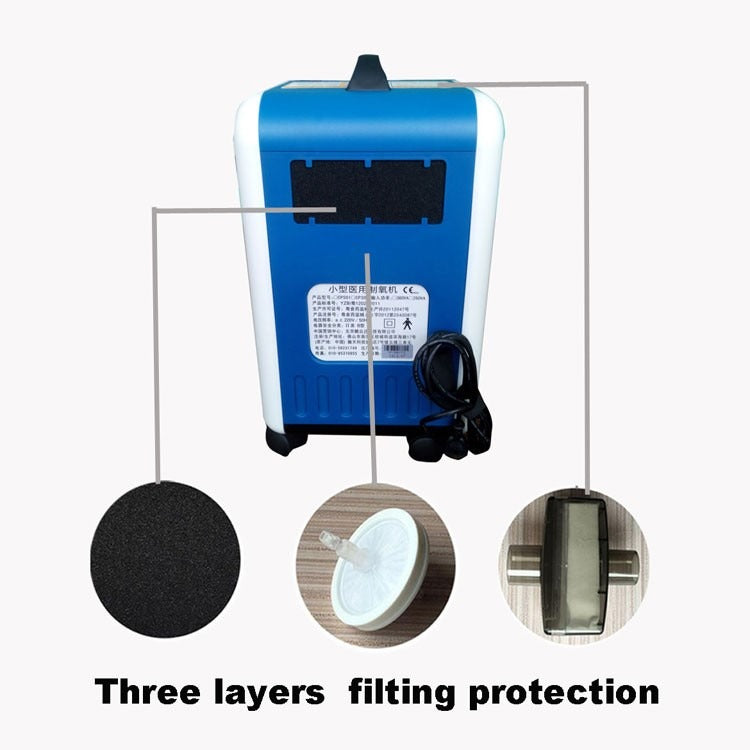

– High oxygen purity 93% ± 3%, 3-layer filtration system for high-purity oxygen
– The device starts quickly, capable of producing high-purity oxygen within two minutes
|

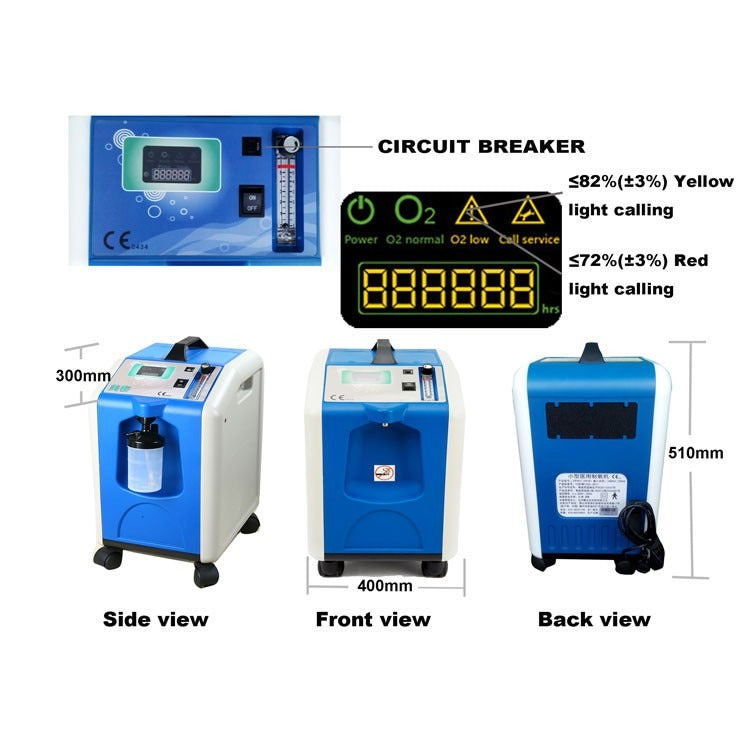

Power Indicator (Green Light) |
Device is operating normally |
|
Normal Oxygen (Green Light) |
Oxygen purity is normal |
|
Low Oxygen (Yellow Light) |
Oxygen purity is below 85%, request service |
| Alarm (Red Light) |
Turn off the device and contact your device supplier for immediate maintenance |
|
|
- System pressure status (lo-p/hi-p)
- Oxygen purity status (lo-o2)
- Heating status (hi-t)
- Low pressure / High pressure lo-p/hi-p
- Low oxygen purity lo-o2
- High temperature hi-t
|
