Description

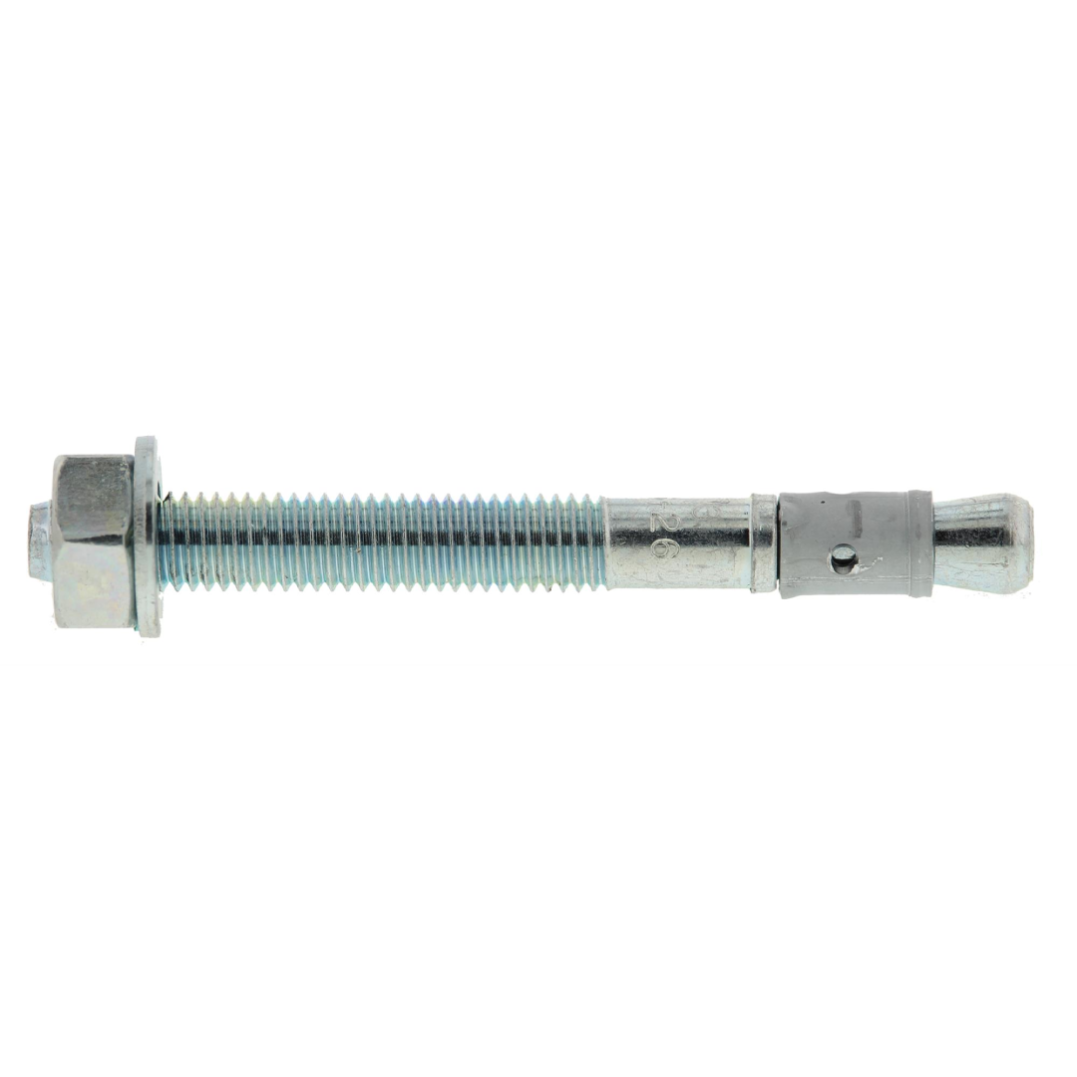

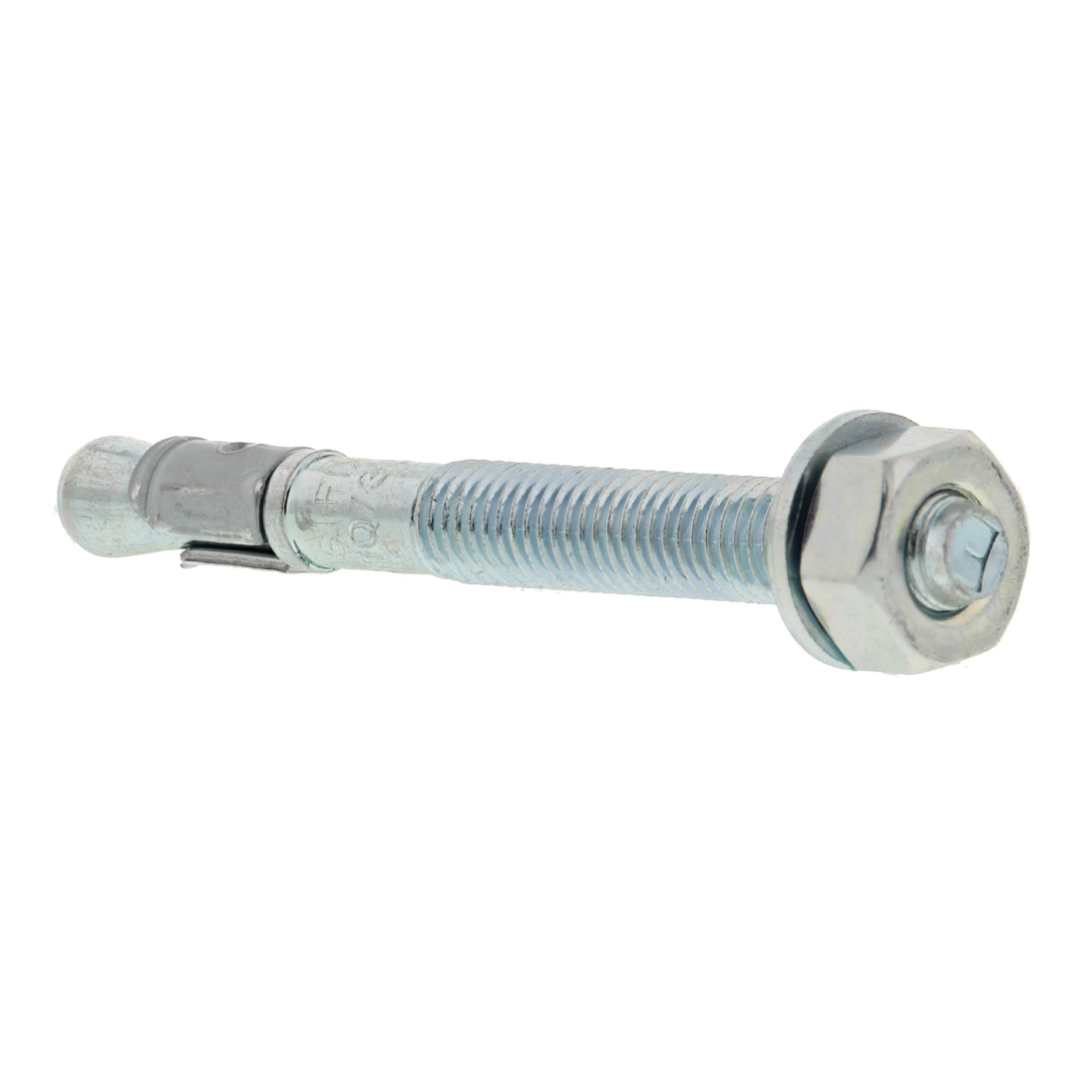

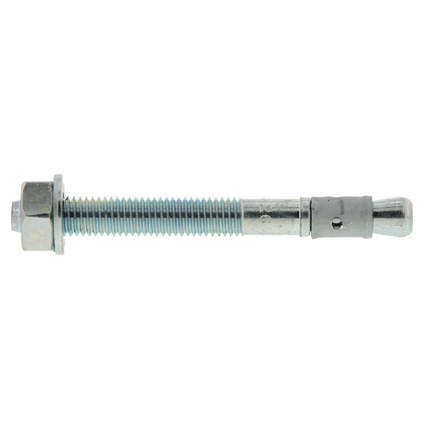

FIX3 Anchor – Size 16x125/30-15 – is a high-performance mechanical wedge anchor designed for heavy-duty structural and high-safety applications in non-cracked concrete. With a bolt diameter of M16, this product offers immense strength for securing massive structures, while ensuring European quality and the required engineering approvals.
Professional Features and Benefits:
-
Exceptional Certified Performance (ETA Option 7): European certified for use in non-cracked concrete, it offers one of the highest load-bearing capacities in its class, making it ideal for large-scale projects.
-
Superior Load Bearing: The 16 mm size is designed to handle extremely high tensile and shear forces, reducing the need for additional anchoring points per base.
-

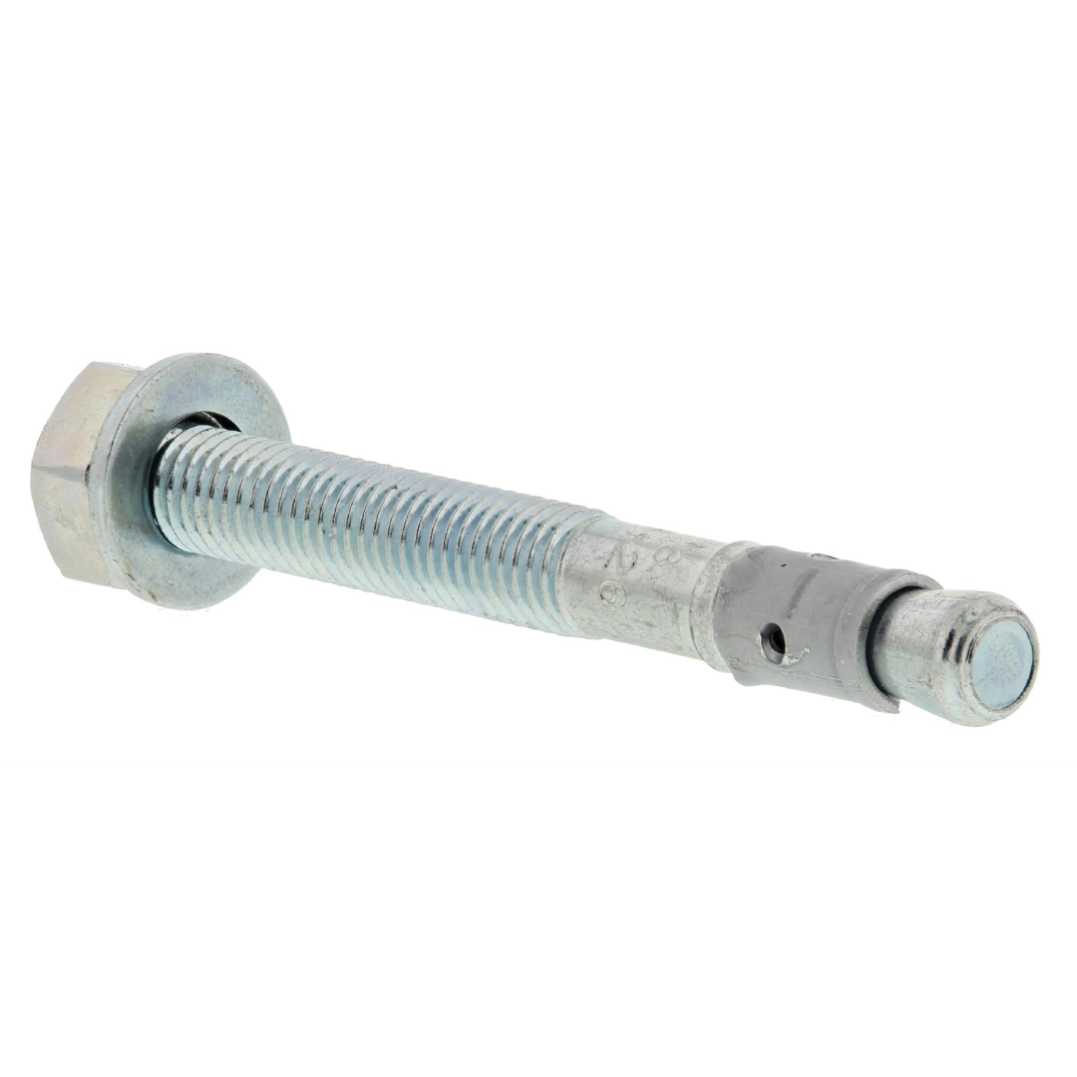

Advanced Expansion Clip Design: Ensures balanced expansion and an iron-tight grip inside the hole upon tightening, providing immediate structural stability.
-
Flexibility in Fixture Thickness: Thanks to its length (125 mm), it allows for fastening metal or wooden parts with thicknesses ranging from 15 mm to 30 mm, depending on the chosen embedment depth.
-
Corrosion Resistance: Coated with a high-quality zinc layer (Zinc Coated) to ensure long-term durability in indoor applications and dry environments.
Technical Specifications (Model 057481):
-
Product Name: FIX3 16x125/30-15.
-
Product Code (Eurocode): 057481.
-
Drill Ø: 16 mm.
-
Overall Anchor Length: 125 mm.
-
Fixture Thickness (tfix): 15 mm to 30 mm.
-
Minimum Embedment Depth: 95 mm.
-
Wrench Size: 24 mm.
-
Setting Torque: 100 Nm.
-
Country of Origin: France.
Recommended Loads:
-
Tensile Strength in Concrete C20/25: 16.76 kN (approx. 1676 kg).
-
Shear Strength in Concrete C20/25: 20.86 kN (approx. 2086 kg).
Primary Applications:

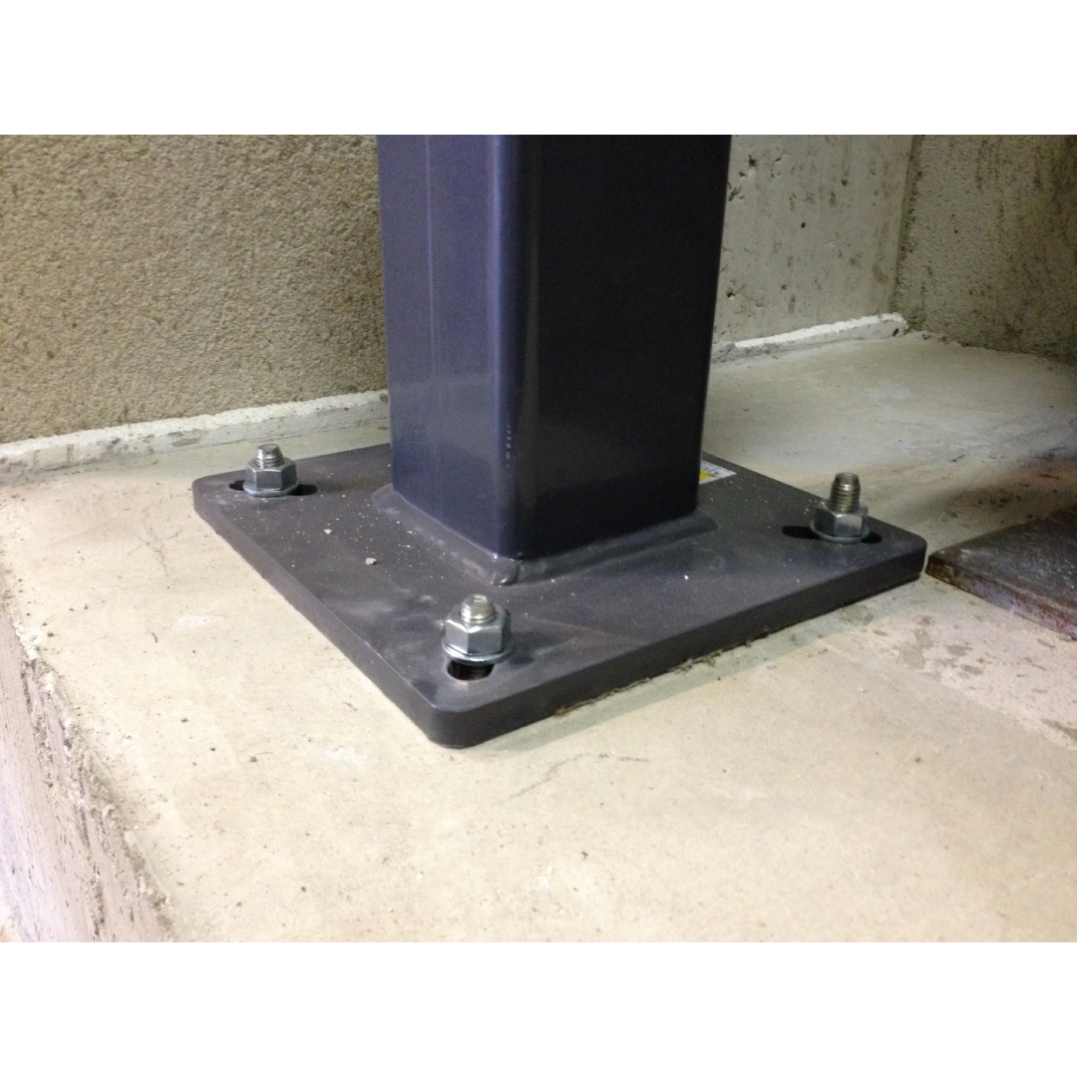

- Anchoring large steel columns, beams, and cranes.
- Installing heavy safety barriers in parking lots and roads.
- Securing heavy industrial machinery subject to vibration.
- Supporting structural systems and large metal roofs.

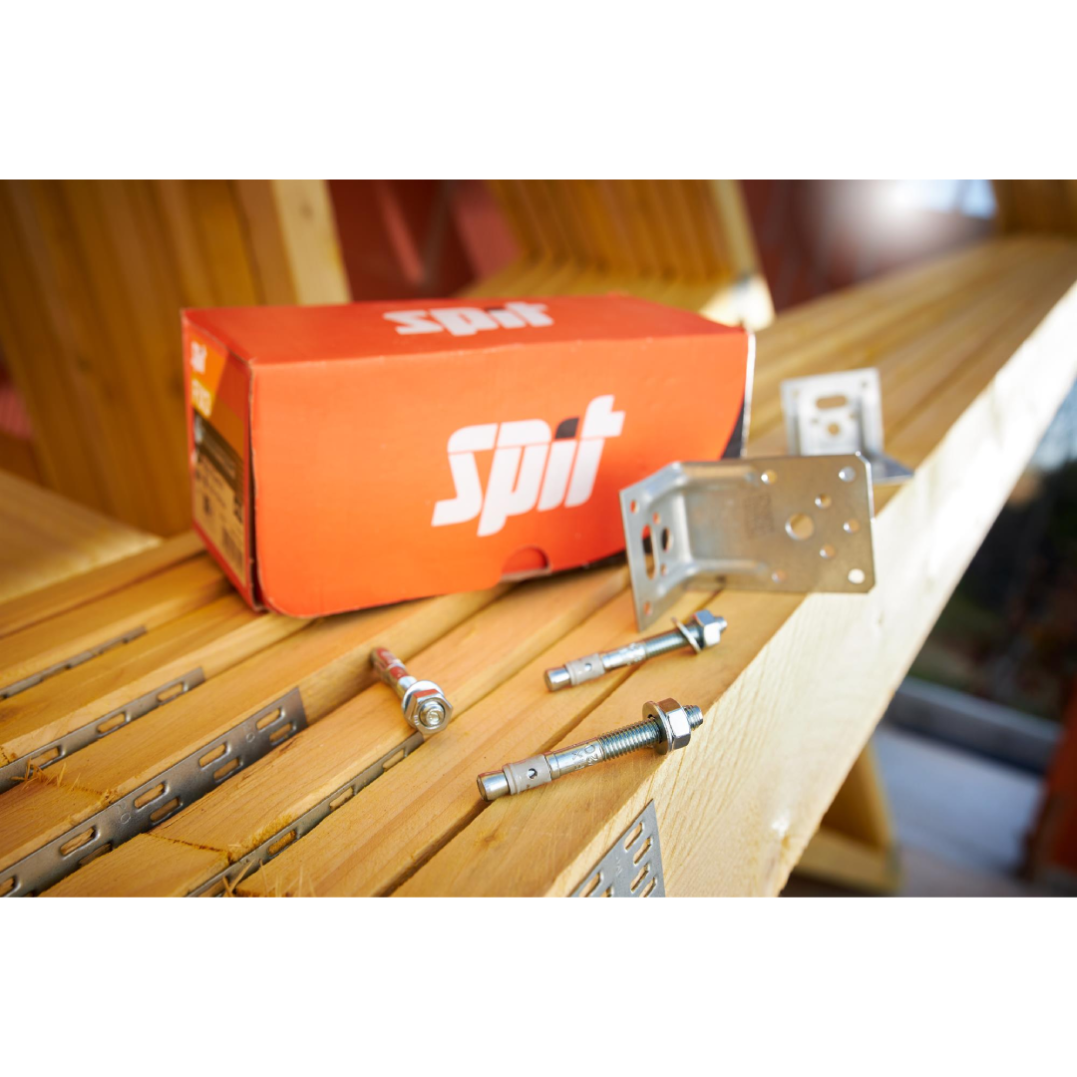

Box Contents:
- Cardboard box containing 20 FIX3 anchors (including nuts and washers).
Technical Tip: Due to the high strength of this anchor, it is essential to use a torque wrench set to 100 Nm to ensure no thread damage and to achieve maximum mechanical performance.
