Description

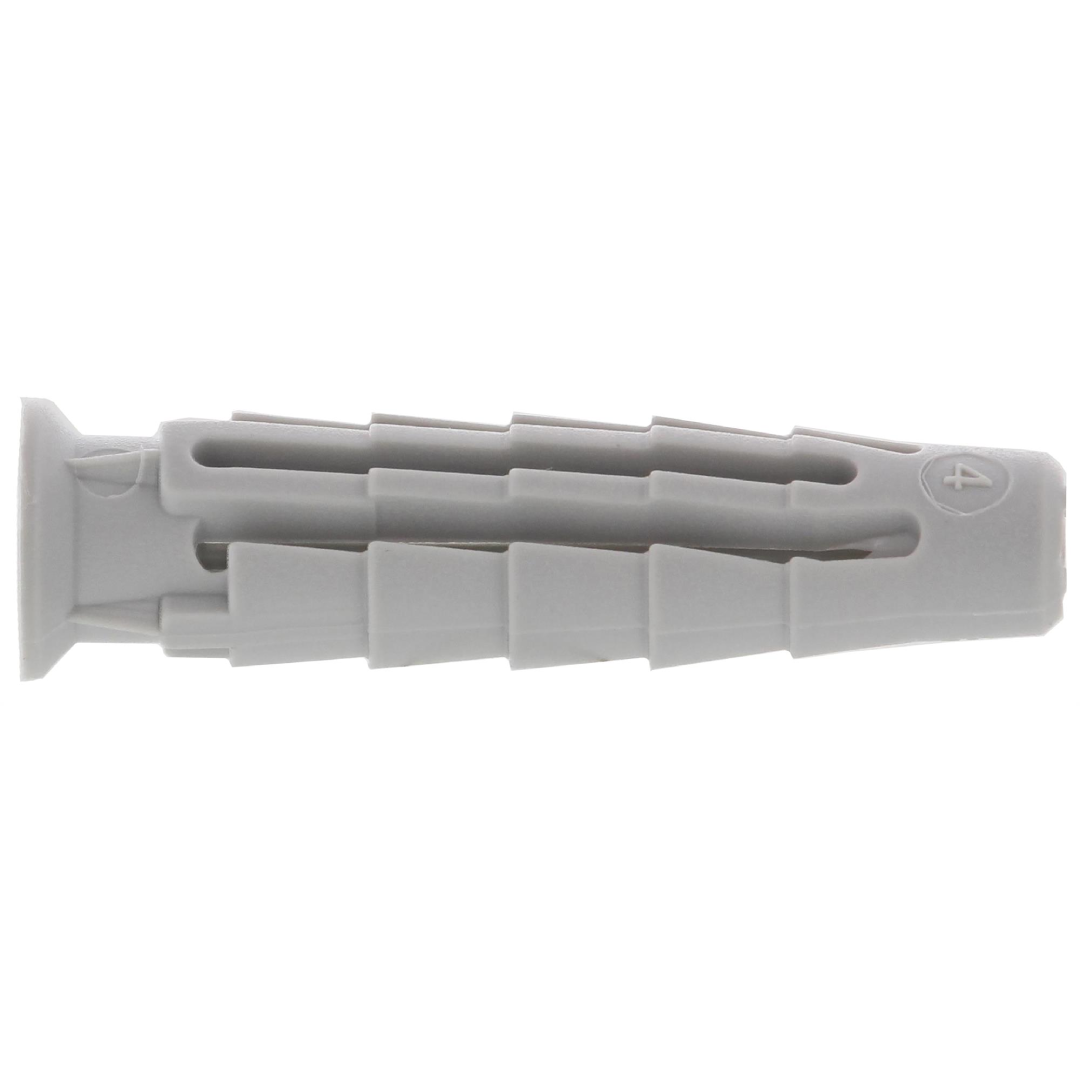

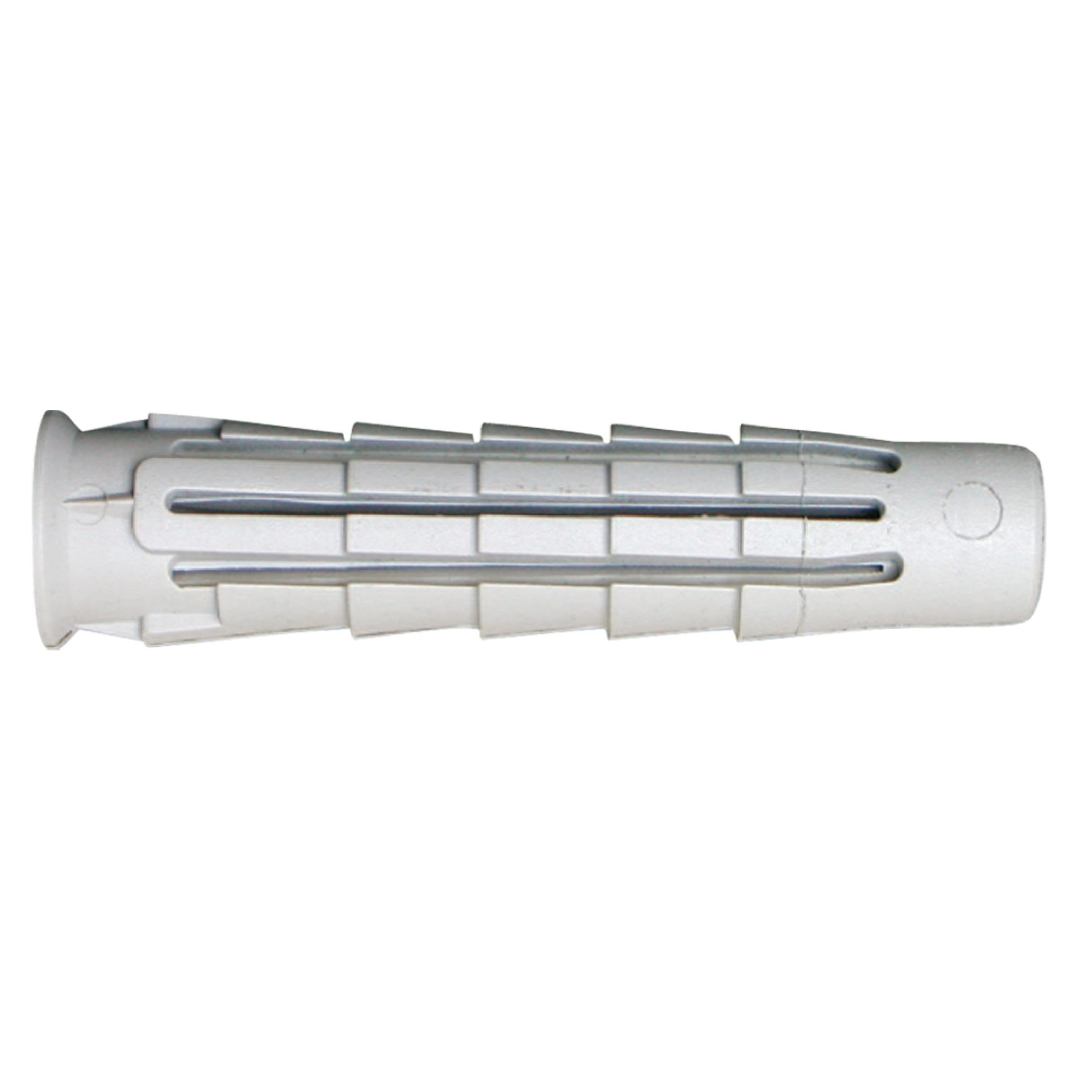

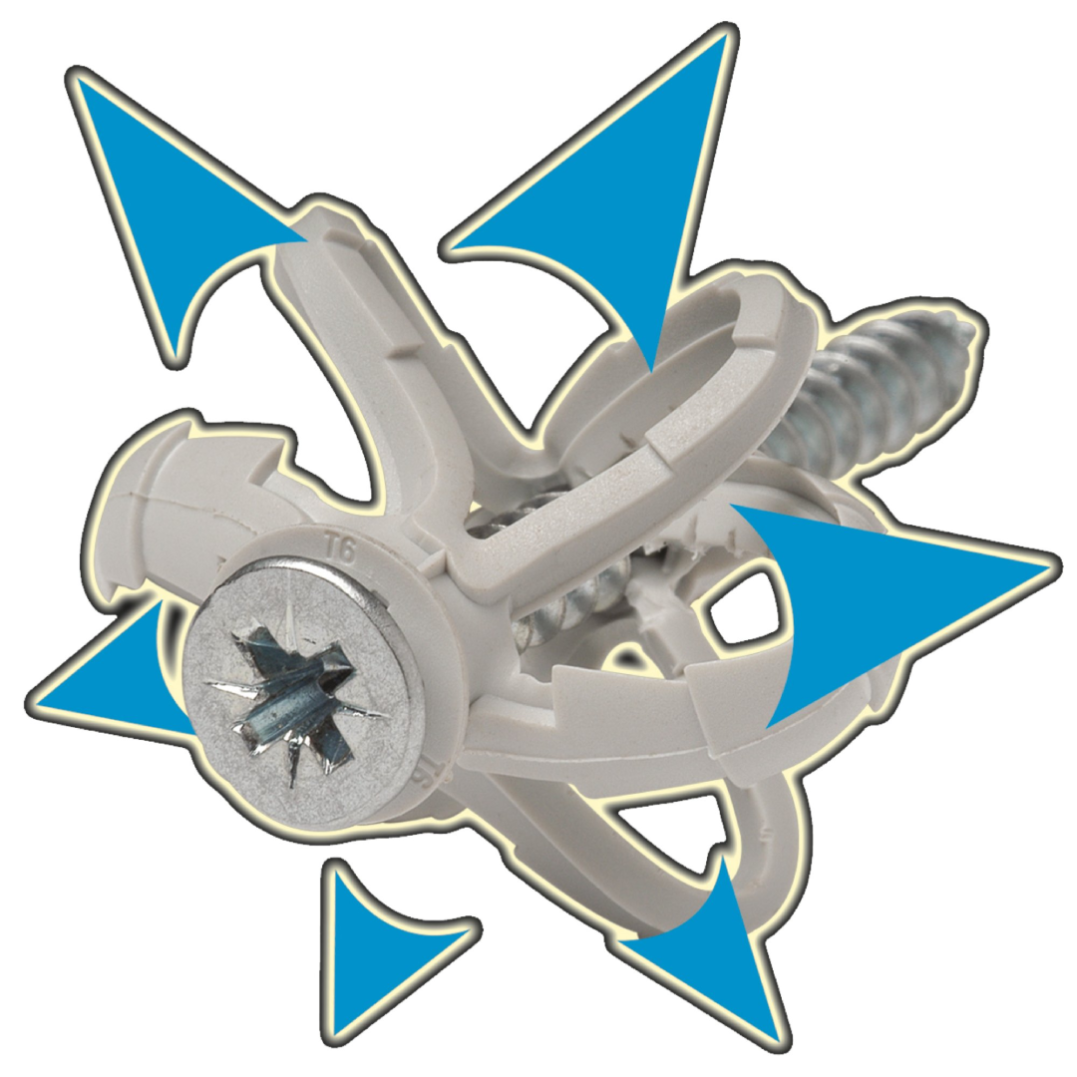

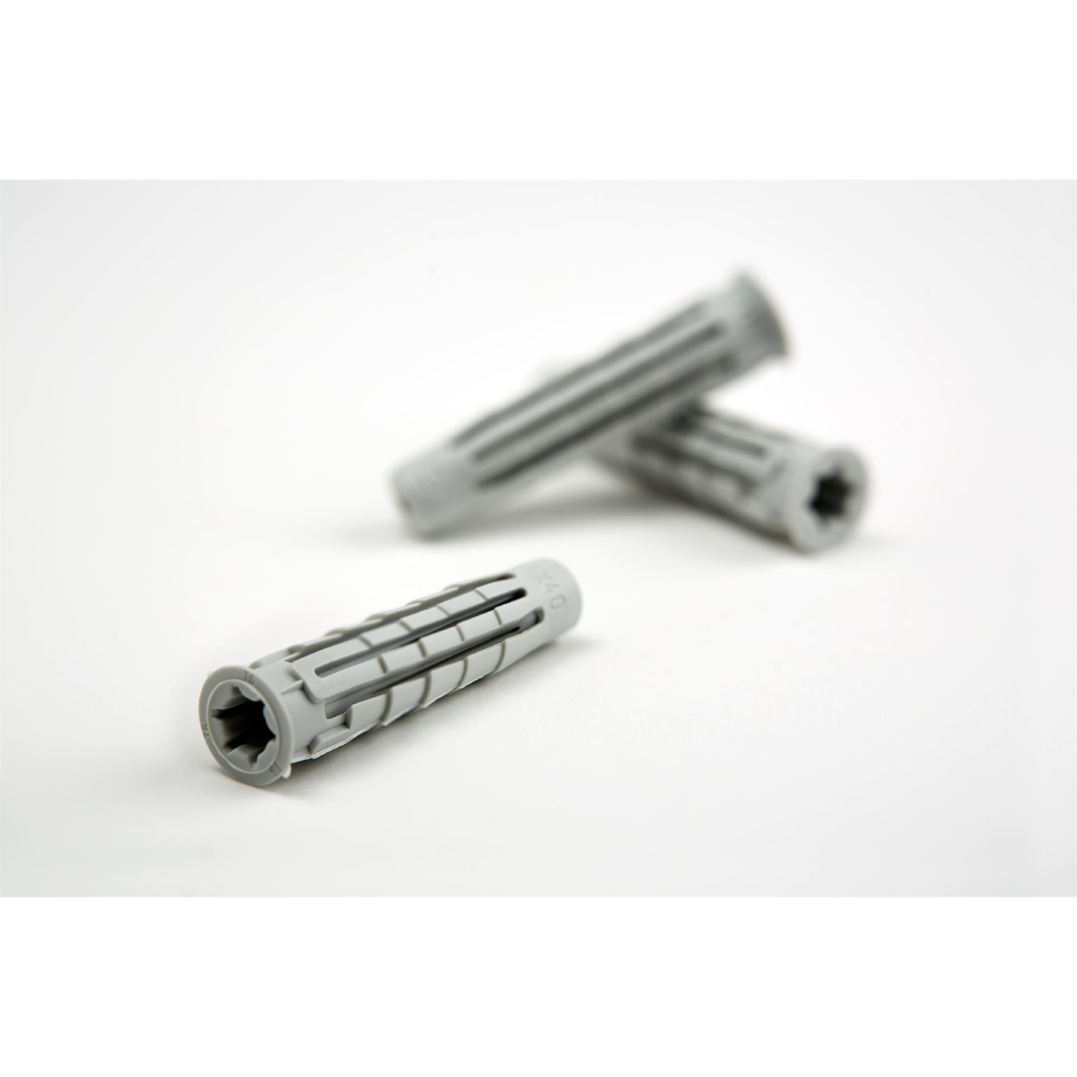

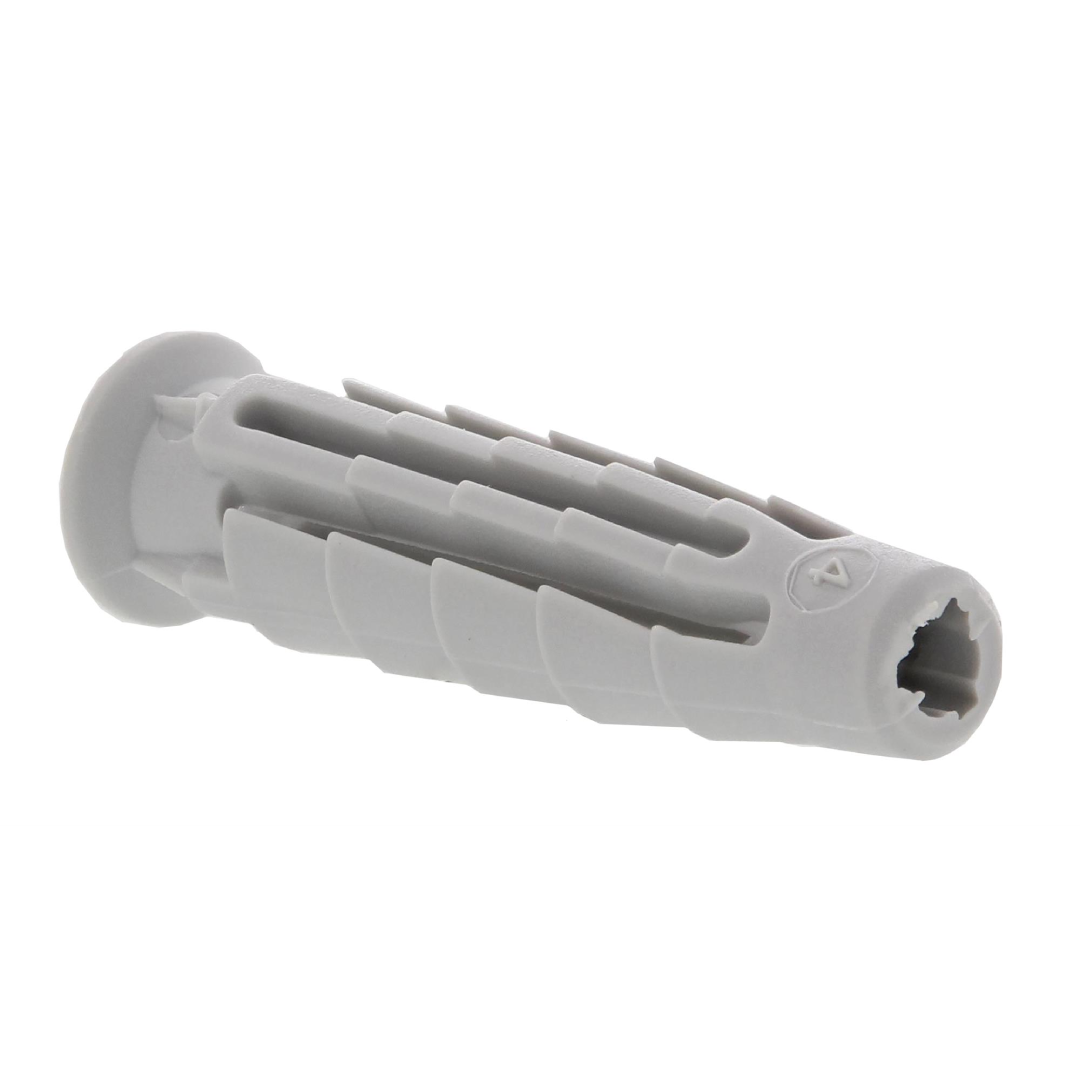

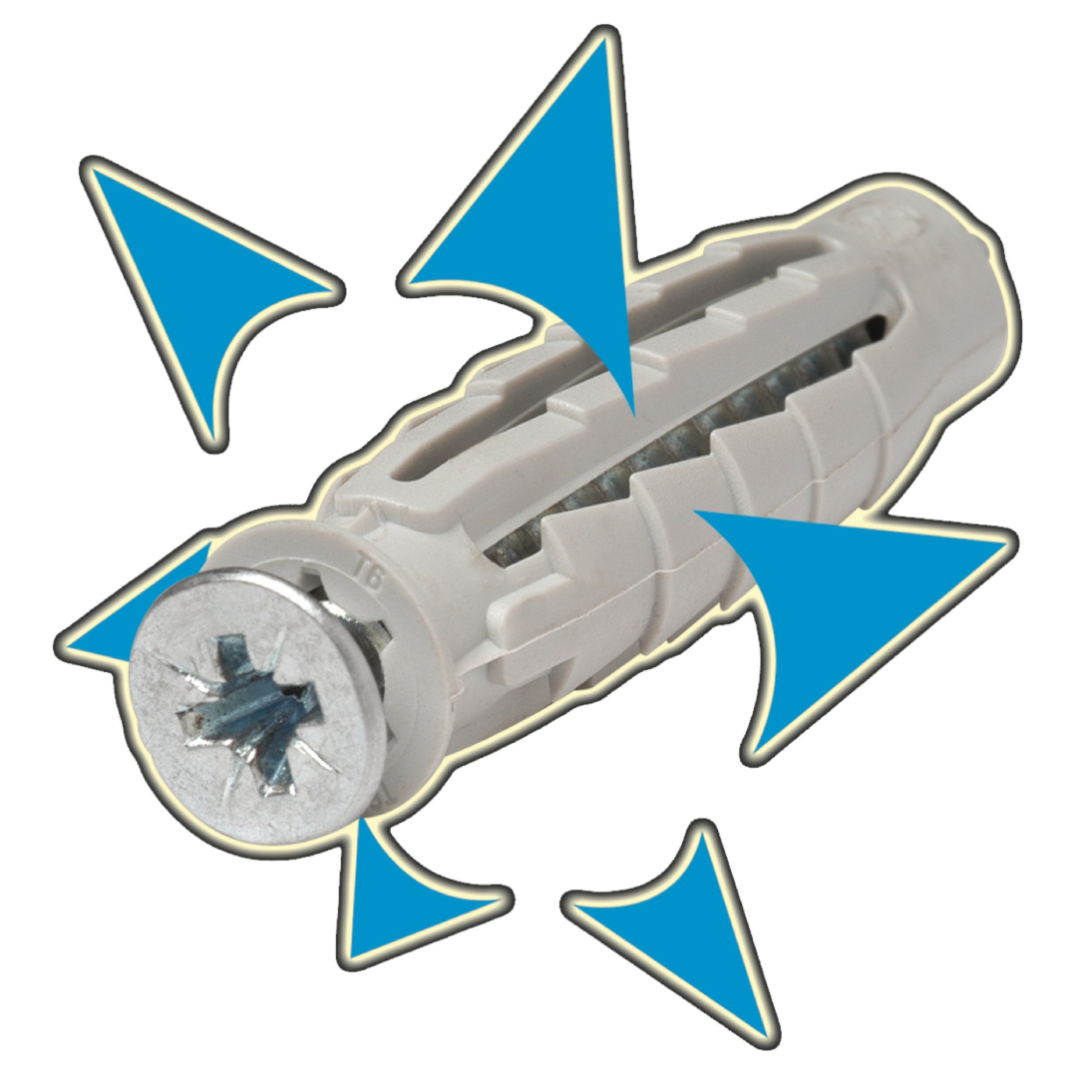

SPIT PRO6 6x30mm Anchor – is a premium universal nylon anchor from SPIT, designed to be the perfect and comprehensive solution for all daily fastening tasks in all types of building materials. It features a unique ability to expand quintuply in solid materials, or form a "knot" within hollow materials to ensure maximum grip and security.
Professional Features and Benefits:
-
Stability in All Materials: Can be used efficiently in concrete, solid brick, hollow brick, and even concrete block.
-

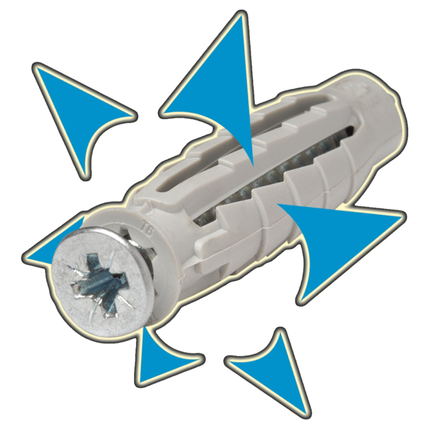

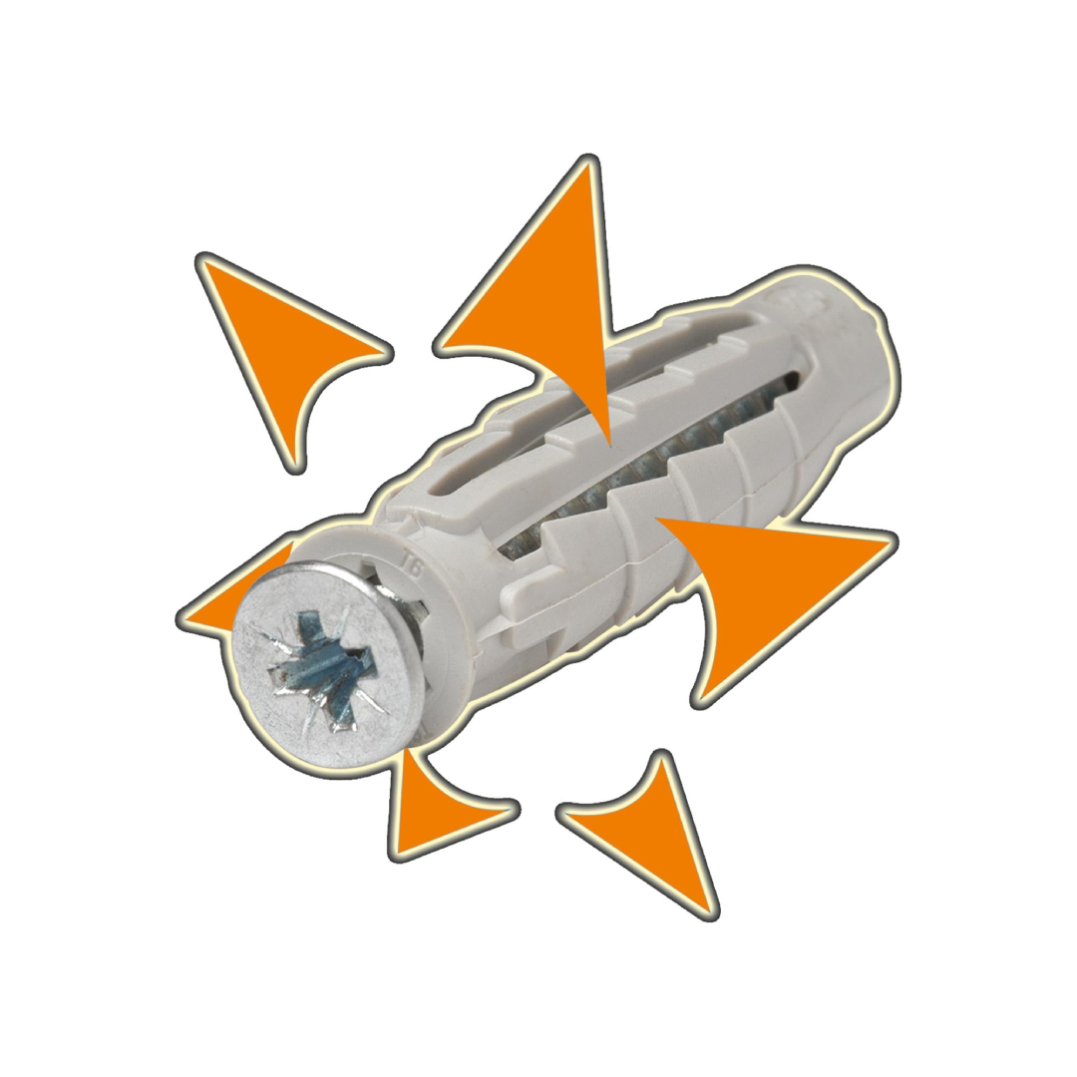

6-Directional Expansion: The design of the six expansion zones ensures even distribution of force within the base material, preventing the anchor from slipping.
-
Immediate Anti-Rotation: The anchor expands immediately upon insertion, preventing it from rotating on itself while tightening the screw.
-

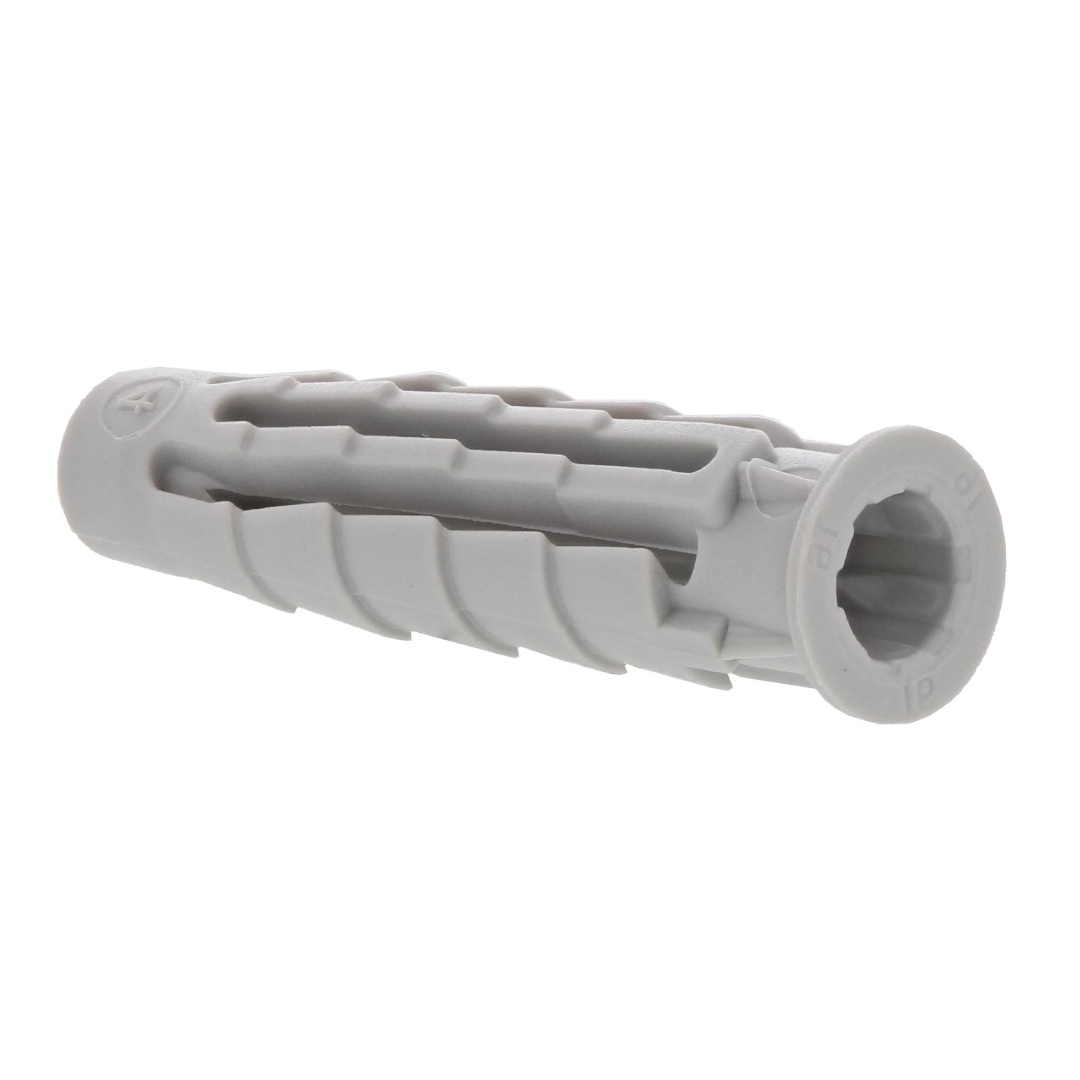

Flat Lip: The thin outer lip prevents the anchor from sliding completely into the hole, ensuring an aesthetic finish flush with the surface.
-
Nylon 6 Material: Made from high-quality nylon that maintains its flexibility and strength at temperatures ranging from -20 to +70 degrees Celsius.
Technical Specifications (Model 565643):
-
Product Name: PRO6 6x30.
-
Product Code (Eurocode): 565643.
-
Drill Ø: 6 mm.
-
Anchor Length: 30 mm.
-
Minimum Drill Depth: 40 mm.
-
Suitable Screw Diameter: 4 mm to 5 mm.
-
Color: Purple.
-
Country of Origin: Italy.
Recommended Loads:
-
Concrete (C20/25): 0.28 kN (approx. 28 kg).
-
Hollow Concrete Block: 0.30 kN (approx. 30 kg).
-
Solid Brick: 0.26 kN (approx. 26 kg).
-
Hollow Brick: 0.19 kN (approx. 19 kg).
Applications and Uses:

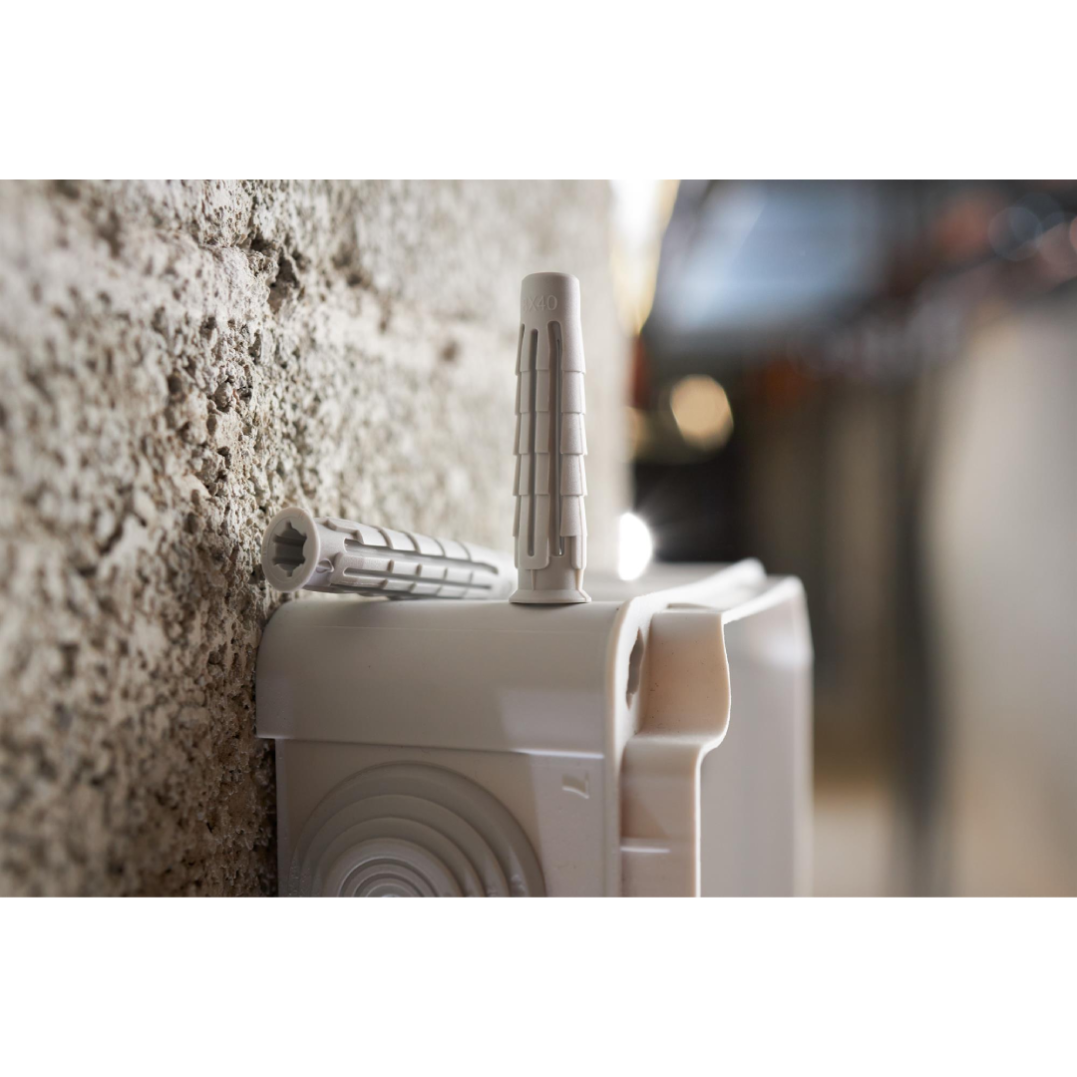

- Fixing light electrical accessories and distribution boards.
- Installing bathroom accessories, mirrors, and light shelves.
- Hanging curtains and cable trunking.
Package Contents:

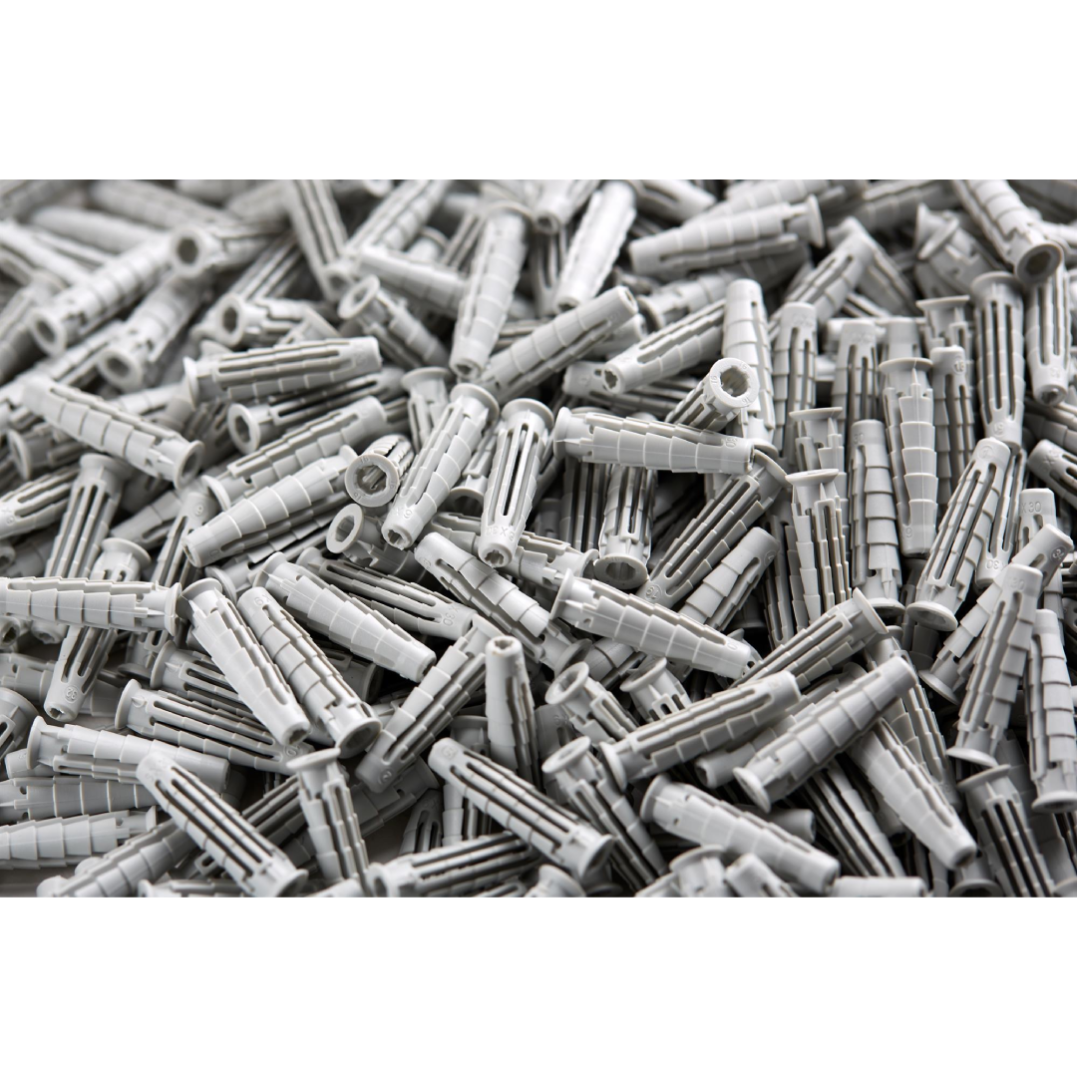

- Cardboard box containing 100 PRO6 nylon anchors (screws not included).

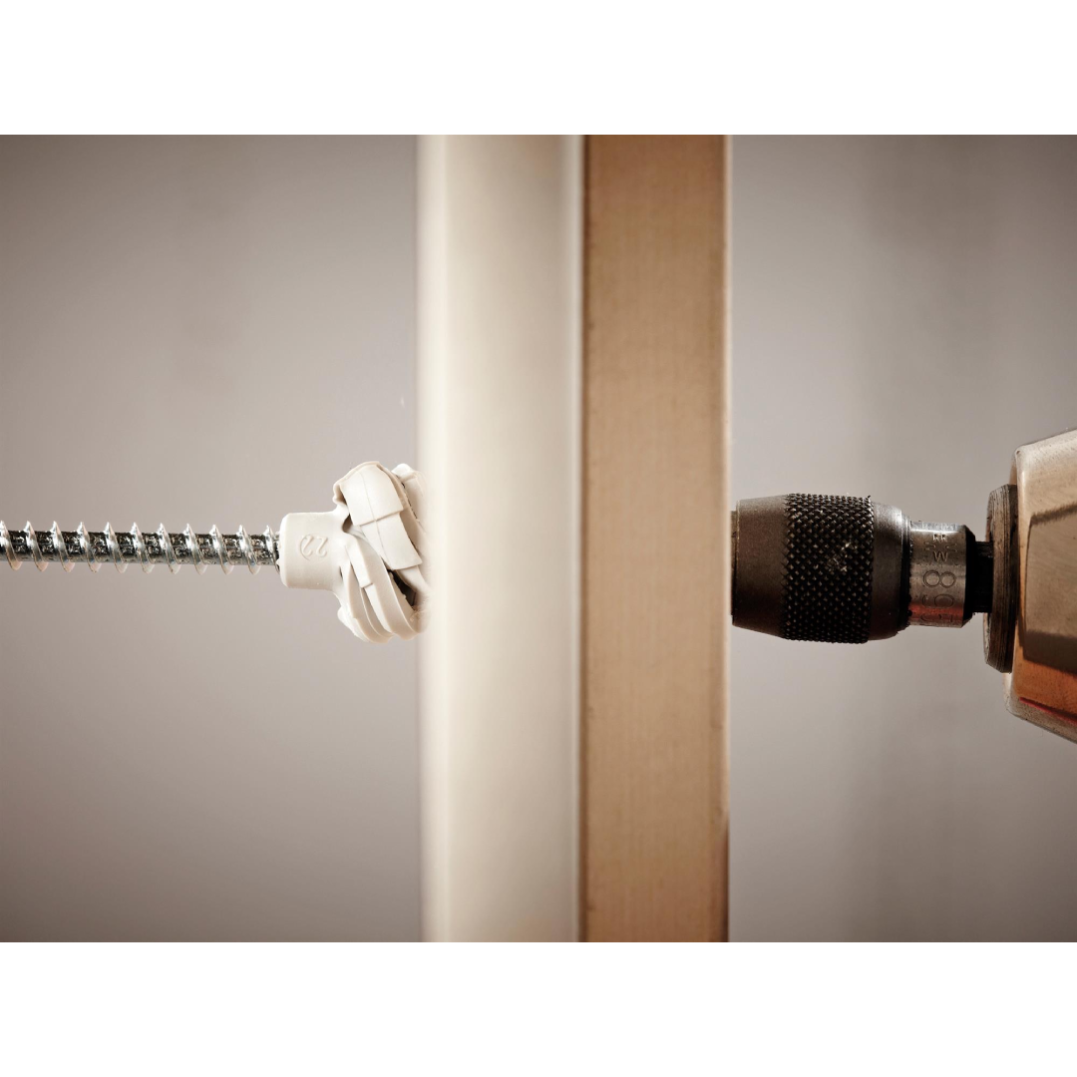

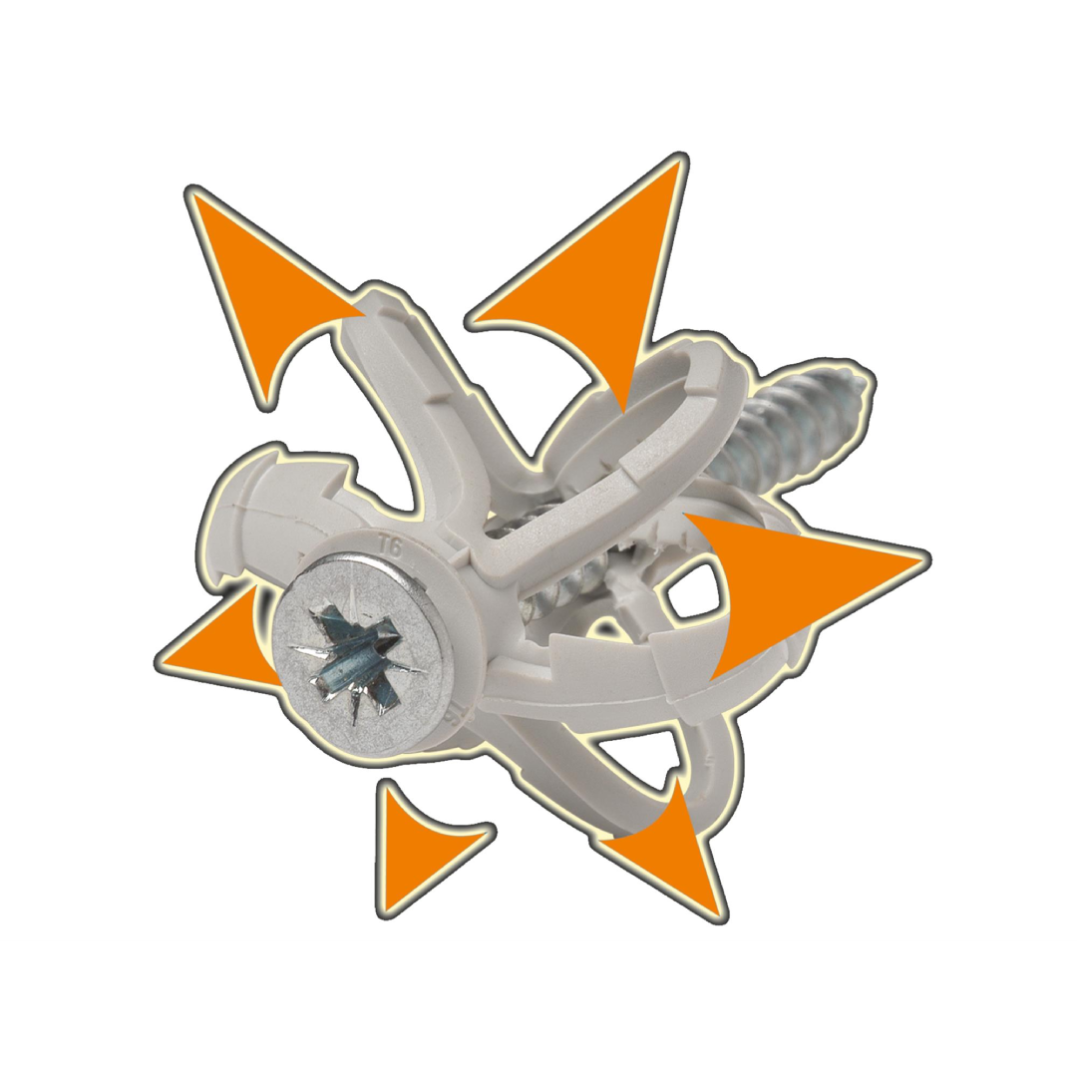

Technical Tip: For best performance in hollow materials, ensure the screw is long enough to extend beyond the anchor's length and allow it to form a "knot" behind the brick wall.
