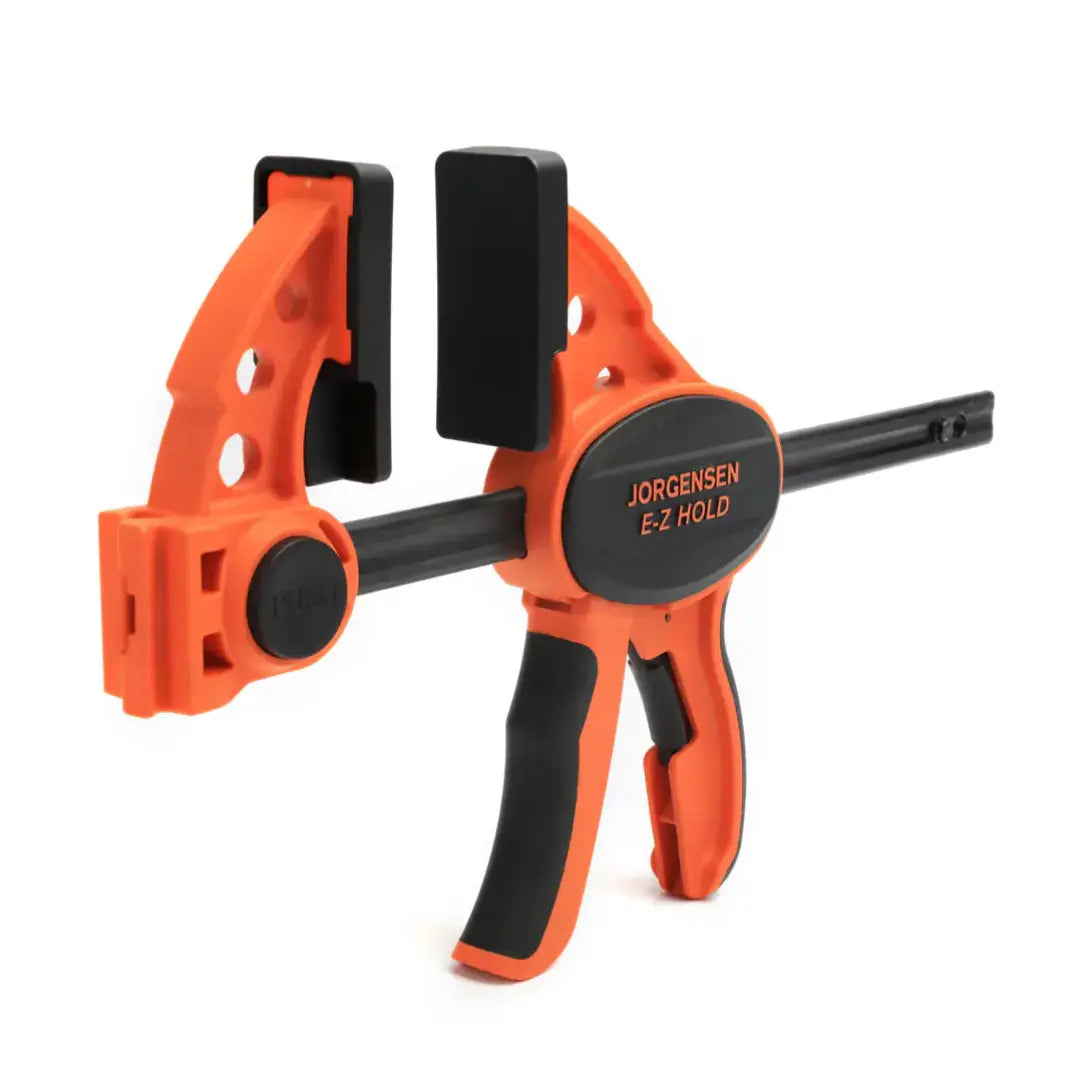

Medium-Duty E-Z Hold Expandable Clamp – Model 33518 – This clamp from Jorgensen offers extra length and superior clamping force for large projects. With its 18-inch length and exclusive expandable technology, it gives professionals the ability to clamp wide pieces with flexibility and ease, using just one hand.
Professional Features and Benefits:
-
Unique Connect and Expand Capability: This model allows you to connect two clamps together for exceptional clamping length, eliminating the need to purchase bulky clamps that are difficult to store.
-
Smooth One-Handed Operation: The trigger mechanism is designed to provide strong, precise pressure with just one hand, making it easier for you to align and clamp large workpieces by yourself.
-
Medium-Duty Torque: Withstands continuous pressure of up to 300 lbs, featuring a heat-treated steel bar to prevent bending during high-pressure clamping.
-
Quick Conversion to Spreader Function: The head can be easily reversed to transform the tool from a clamping clamp to an outward spreader tool, helping to loosen or space pieces accurately.
-
Wide Protective Pads: Features deep, removable jaw pads that protect wood surfaces from any marks or damage caused by clamping force.
Technical Specifications for Model 33518:
-
Model Number: 33518.
-
Maximum Clamping Capacity: 18 inches (approximately 457 mm).
-
Maximum Spreading Capacity: Up to 26-3/4 inches.
-
Throat Depth: 3-3/8 inches.
-
Load Limit: 300 lbs (approximately 136 kg).
Ideal Uses:
-
Assembling Tables and Wide Furniture: The extra length makes it ideal for clamping furniture frames and wide panels.
-
Professional Workshop Work: An excellent choice for carpenters who need a powerful and versatile tool.
Technical Tip: When working on large projects, use this clamp with Bison Montage Kit adhesive to ensure a final hold that is unaffected by heavy weights or weather conditions.
