Description

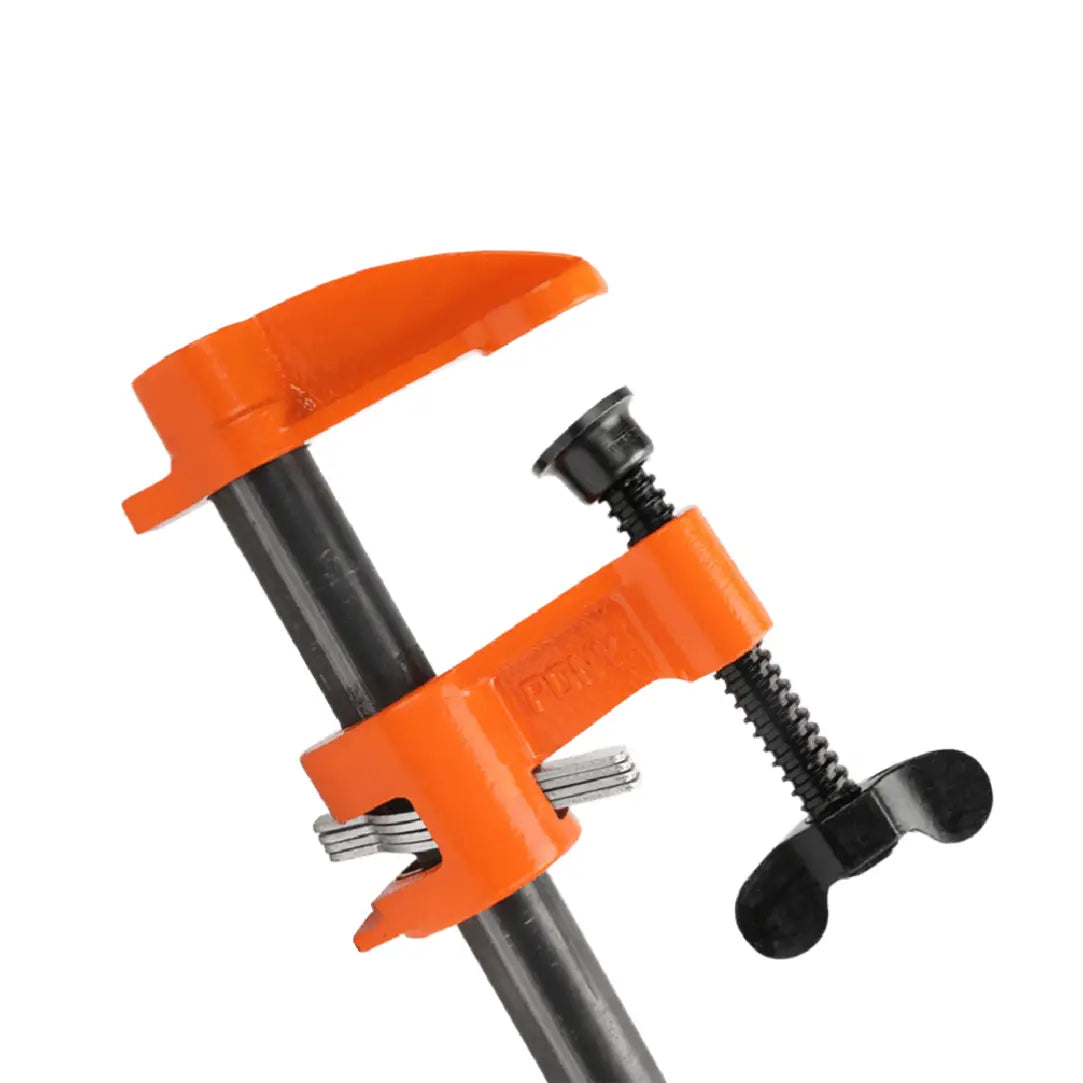

Deep-Reach Pipe Clamp Fixture – Pony Model #56 – is a specialized tool from Pony/Jorgensen designed to provide deeper access in challenging clamping situations. With its unique design, this clamp offers high flexibility as it can be easily converted from a clamping tool to a spreader, making it ideal for working in tight and congested spaces.
Professional Features and Benefits:
-
Exceptional Deep-Reach: Provides a throat depth of up to 2.5 inches (63.5 mm), allowing workpieces to be gripped at deeper points compared to standard models.
-
Dual Functionality (Clamp & Spreader): Heads can be easily reversed to convert the clamp into a "spreader" or "outward compressor," providing intelligent solutions for separating or pushing pieces apart.
-
Steel Clutch System: Relies on multi-disc steel technology that ensures absolute stability and prevents slippage during pressure, with easy release and movement.
-
Ideal for Tight Spaces: Its slim and deep design makes it the primary choice for working inside cabinets or corners that traditional clamps cannot reach.
-
Durable Clamping Force: Despite its design optimized for deep reach, it maintains a nominal clamping force of up to 1200 lbs.
Technical Specifications for Pony Model #56:
-
Model Number: 56.
-
Pipe Used: 3/4-inch black pipe (3/4"-14 NPT Pipe).
-
Throat Depth: 2-1/2 inches (63.5 mm).
-
Nominal Clamping Force: 1200 lbs.
-
Maximum Load Capacity: 2200 lbs.
Assembly and Maintenance Instructions:
-
Quick Assembly: The head is manually threaded onto the pipe, then the tail-stop is slid on, and the back stop spring is added.
-
Maintenance Tip: To ensure smooth operation, it is recommended to apply a light coat of oil to the screw and clutch discs periodically.
-
Spreading: When reversing the heads to convert it into a spreader, ensure the pipe and threads are secure to ensure safe and even outward pressure distribution.
Additional Note: This model is fully compatible with Pony Pipe Clamp Pads, available to protect sensitive surfaces from metal jaw pressure.
